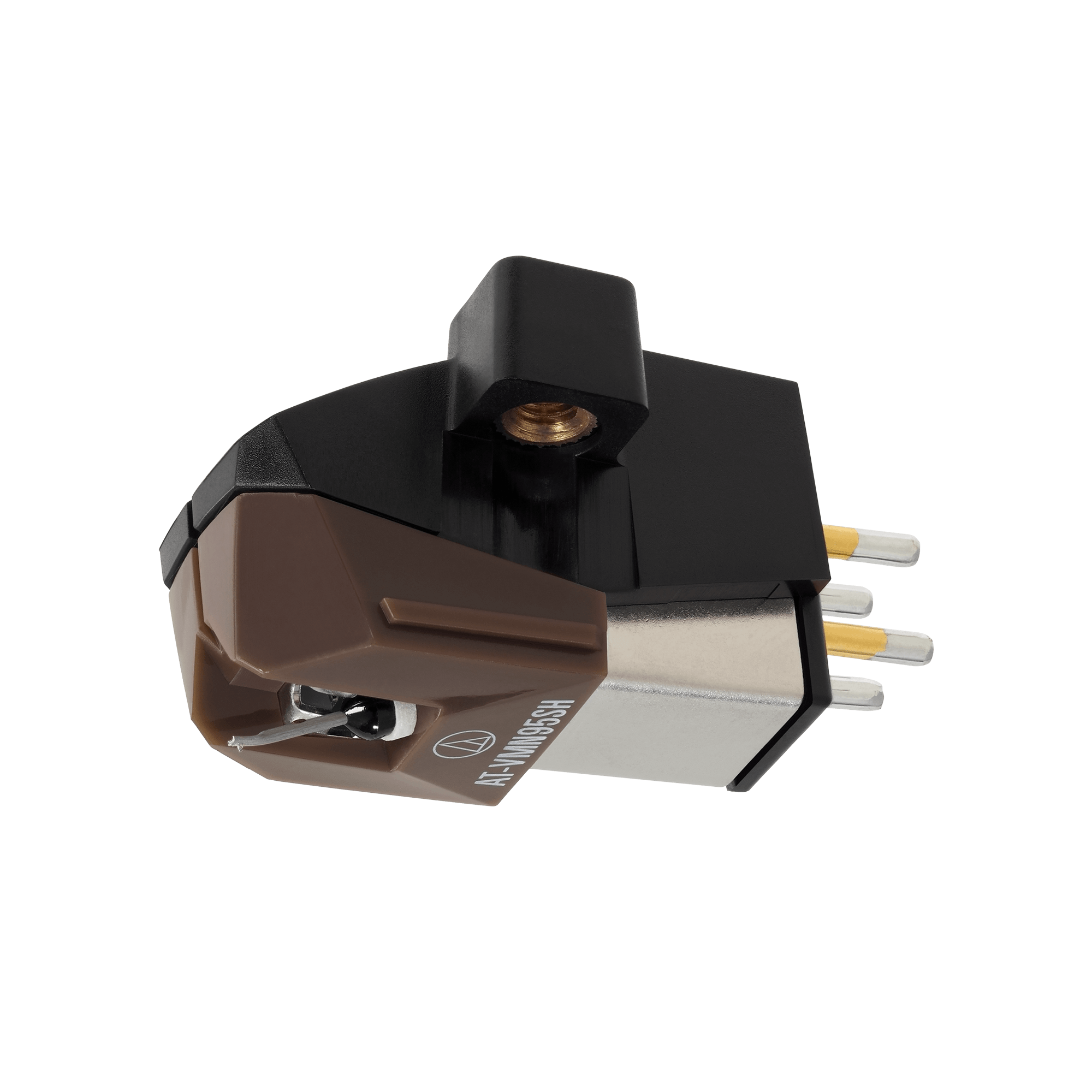

Audio Technica AT-VM95SH Dual Moving Magnet Cartridge

$499.00

This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Available to Order from Supplier

Available On backorder

This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Frequency Response 20 – 25,000 Hz
Channel Separation 23 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
Stylus Construction Nude Square Shank
Recommended Load Impedance 47,000 Ω
Coil Impedance 3.3 kΩ (1 kHz)
DC Resistance 485 Ω
Coil Inductance 550 mH (1 kHz)
Output Voltage 3.5 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape Shibata
Cantilever Aluminium Pipe
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 10 x 10 – 6 cm / dyne (100 Hz)
Mounting 1/2” centres
Cartridge Weight 6.1g
Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm)
Accessories Included Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Non-magnetic screwdriver
Model AT-VM95SH
Recommended Load Capacitance 100-200 pF
Replacement Stylus AT-VMN95SH
Stylus Size 2.7 x 0.26mil
Type VM Stereo Dual Magnet
Wire Used for Coil T.P. Copper
