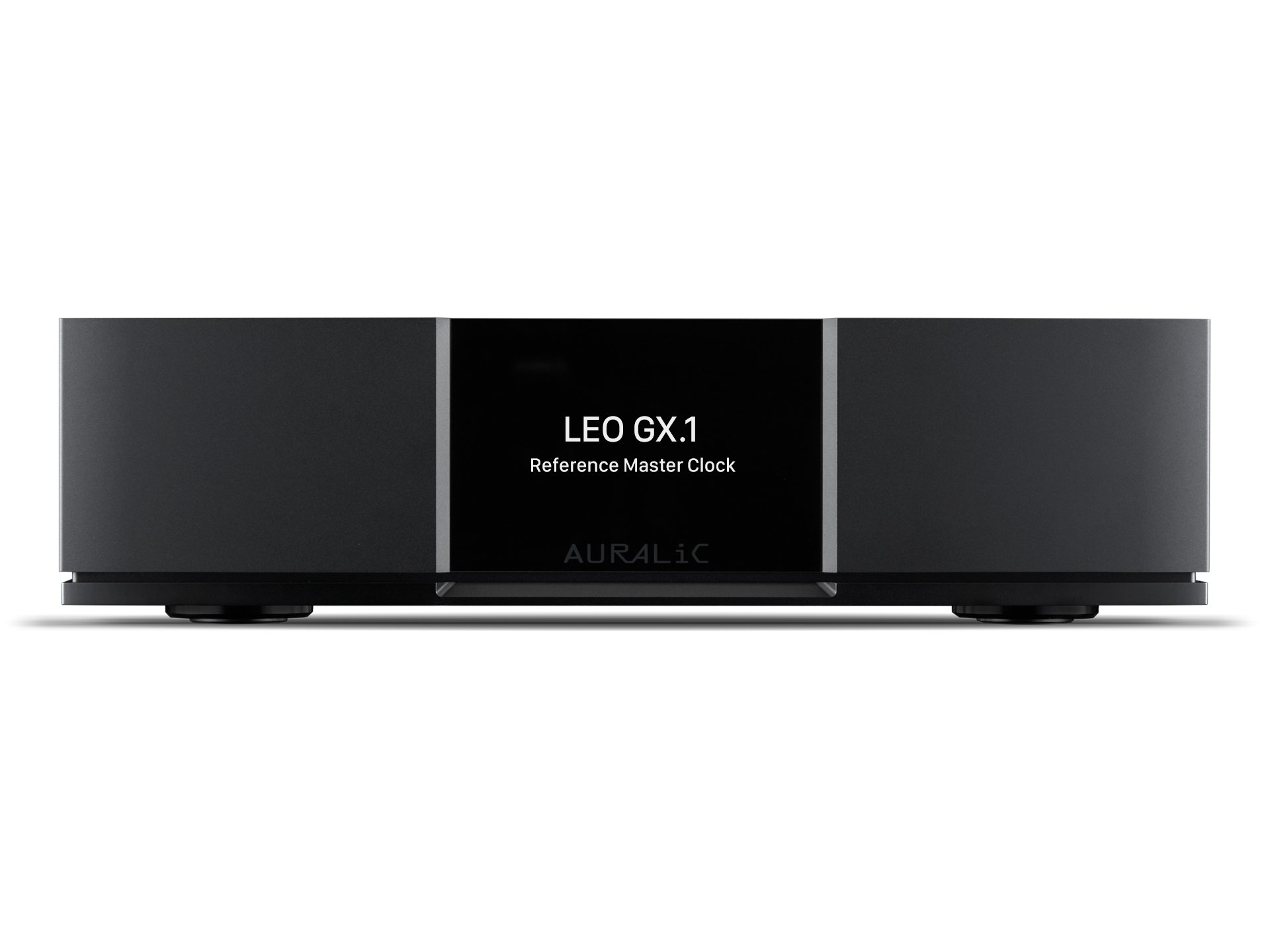

Auralic Leo GX.1 – Reference Master Clock

$15,495.00

LEO GX.1, our reference master clock, continues providing trademark levels of performance in digital audio clocking. Offering “beyond-measurement” levels of precision, results detected while listening: a much wider sound stage, pinpoint instrumental accuracy, and dynamic range beyond expectation. By circumventing the DAC’s internal clock, shielding the unit from noise with an internal copper enclosure, and utilizing a new advanced multi-spring suspension system available on all G2.1 products, LEO GX.1 will dramatically enhance your listening experience.

In stock

A Breakthrough in Digital System Clocking

LEO GX.1, our reference master clock, continues providing trademark levels of performance in digital audio clocking. Offering “beyond-measurement” levels of precision, results detected while listening: a much wider sound stage, pinpoint instrumental accuracy, and dynamic range beyond expectation. By circumventing the DAC’s internal clock, shielding the unit from noise with an internal copper enclosure, and utilizing a new advanced multi-spring suspension system available on all G2.1 products, LEO GX.1 will dramatically enhance your listening experience.

Realize Full Potential

The LEO GX.1 is such a precise clock, running at very high frequency, you will need the best interconnect cable to realize its full potential. We created a cable specifically for LEO GX.1, made from 60GHz bandwidth military aerospace-grade material and connectors. Handmade and precisely tuned, it comes with a performance data report so you can be sure its specs are well capable of the task at hand.

Dual Purer-Power Linear Power Supplies

We’ve given the LEO GX.1 two of our ultra-quiet Purer-Power linear power supplies, galvanically isolating them from each other in the obsessive quest to reduce noise and create a pristine working environment. One Purer-Power supply feeds the LEO GX.1’s processing system, while the second powers the clock circuit. Interference between the areas is reduced to minimum, so there’s nothing to get in the way of LEO GX.1’s stellar performance.

Perfectly Balanced

LEO GX.1 internal circuits are physically distributed to enhance overall balance and performance. And its specially designed foot spikes dampen and absorb vibrations so the operation of its internal clock always starts with a rock-steady foundation.

Unity Chassis II

The LEO GX.1 chassis has been designed as a double enclosure, where an outer case made from high-grade aluminum is supplemented with an inner layer of copper. A high-mass base and enhanced four-foot multi-spring suspension system complete the quiet, noise defeating performance of the LEO GX.1’s Unity Chassis II.

Optical Isolation

We’ve gone to great lengths to reduce interference and noise in the new LEO GX.1, including the use of optical isolation techniques that keep systems physically separated from each other. Control signals from the processing circuit are sent to the clock circuit via fiber optic cables instead of electrical pathways, so the source of LEO GX.1’s impeccable timing is never disturbed.

Clock Structure

LEO GX.1 hardware starts with two temperature-controlled rubidium atomic reference clocks. Each is paired with an oscillator using stress compensated cut crystals, for thermal and mechanical resilience and low phase noise performance. The result is the LEO GX.1’s remarkably high signal frequencies: 90.316MHz for 44.1k-based audio signals, and 98.304MHz for 48k-based signals.

A New Description of Performance

The LEO GX.1 clock is so precise that existing benchmarks aren’t detailed enough to accurately represent what it can do. Instead, we use Allan deviation to describe the resolution of the LEO GX.1, which is like looking at phase noise closely enough to detect shifts of +/-1Hz or even +/-0.1Hz. The Allan deviation of the LEO GX.1 Reference Master Clock comes in at 2E-12 (at 1 second), which is equal to a 10MHz rubidium atomic clock with phase noise of +/-1Hz at -110dBc/Hz, or an amazing 500 times less jitter than an 82fs Femto clock oscillator.

Direct-to-DAC Design

Thanks to its unique Jitter-Free Operation, when the VEGA G2.1 joins forces with the LEO GX.1 these devices accomplish something extraordinary. Instead of merely synchronizing with the LEO GX.1, the VEGA G2.1 actually uses the exceptionally high frequency incoming clock from the LEO GX.1 directly — as its own working signal. In other words the LEO GX.1 bypasses the internal VEGA G2.1 clock circuit entirely, and drives waveform creation directly with its signal. No more PLL, and no more limitations.

Traditional Clocking

Normally, phase-locked loop circuits (PLL) in a DAC are used to synchronize its internal working signal with the more accurate incoming signal from a reference clock. But they’re noisy. And even though the working signal can be nudged a bit to match up with the reference signal, its frequency — and the precision of the analog waveform that’s based on it — is ultimately limited by the DAC’s own clock circuit.

A Breakthrough in Digital System Clocking

LEO GX.1, our reference master clock, continues providing trademark levels of performance in digital audio clocking. Offering “beyond-measurement” levels of precision, results detected while listening: a much wider sound stage, pinpoint instrumental accuracy, and dynamic range beyond expectation. By circumventing the DAC’s internal clock, shielding the unit from noise with an internal copper enclosure, and utilizing a new advanced multi-spring suspension system available on all G2.1 products, LEO GX.1 will dramatically enhance your listening experience.

  • Frequency 90.3168MHz (44.1x fs) | 98.3040MHz (48x fs)
  • Output Level 3.3V CMOS (Direct-to-DAC Design)
  • Reference Temperature-controlled Rubidium atomic clock
  • Oscillator Temperature-controlled SC cut crystal
  • Sampling Rate PCM: 44.1kHz to 384kHz in 32Bit
    DSD: DSD64 to DSD512 in 44x and 48x
  • Dimensions – W x D x H 34cm x 32cm x 9.6cm
  • Weight 9.6 kg
