Axium KPC 2.8-N Touch Screen

Axium KPC 2.8-N Touch Screen

$599.00

or 6 weekly interest-free payments from $99.83 with Laybuy what's this?

Description

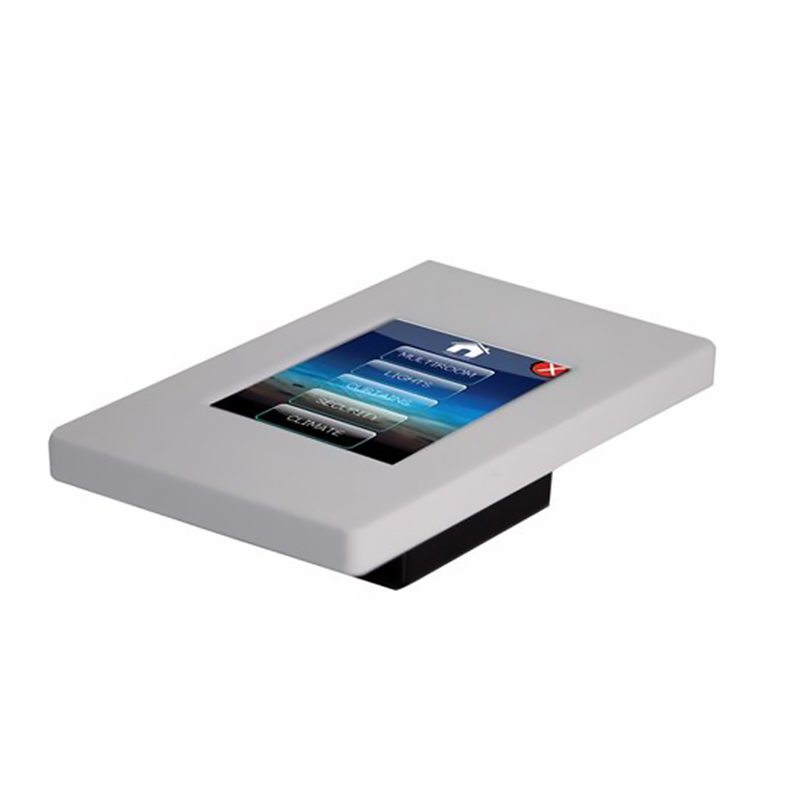

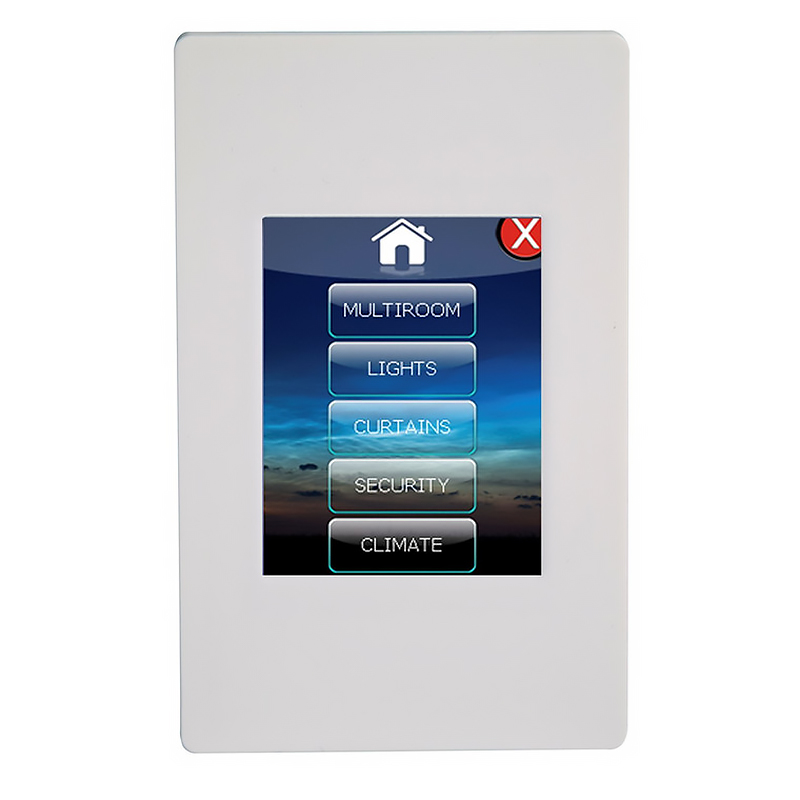

The Axium KPC2.8-NC keypad is a programmable 2.8” colour LCD capacitive Touch screen.

Being capable of learning and sending IR commands the KPC2.8-N can be used as a standalone keypad to control virtually any IR controlled device.

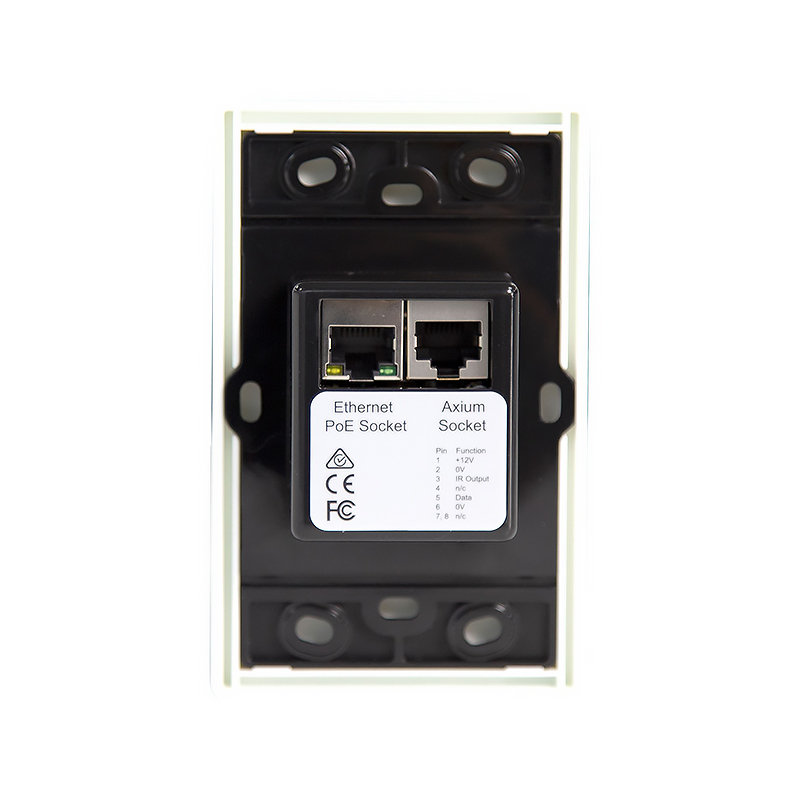

The KPC-NC can be connected via a PoE network switch or via the RJ45 port connected to an amplifier keypad port. When used with an Axium Multi-Zone Amplifier full 2-way feedback of source selection, power, mute and volume status is provided. Full 2-way RS232 an IP control is available when connected to an Axium AX-R4D/R1D RS232 router and the prebuilt Axium applets. Setup by the Axium Design Portal software, the KPC2.8-NC includes a host of features to simplify programming and enhance amplifier and source equipment control.

The Slideshow screen saver has also been improved, we have introduced transition effects. Instead of just displaying the next image it performs a randomly selected effect for transitioning to the next image. In addition, you can now use JPEG images so you can get more images into the KPC-NC memory before it is full.

Specifications

  • 2.8” LCD touch panel
    • Contrast ratio = 800:1
    • Viewing angle = 160° (H and V)
    • 240 (RGB) x 320 Dot 64K Colours.
  • Operating voltage: 12VDC ± 3V. Ethernet PoE; 48VDC.
  • Capacitive touch screen.
  • Typically Power 0.75Watt display at full brightness.
  • Memory: 8Mbytes Flash for GUI and IR commands.
  • IR learning of both modulated and pulse IR codes. Modulation frequencies up to 500 kHz.
  • Large IR database supplied. IR codes using the ‘HEX’ code format may be imported into Axium Design Portal.
  • Portrait or Landscape display orientations.
  • Australian or European size and mounting options
  • Macros supporting control flow instructions.
  • User defined button sounds: wav file
  • Range of Skins available for graphical user interface (GUI)
  • Single touch Control types: Animated Buttons, Buttons with feedback, Sliders, Numeric Readouts and Applets providing control and metadata display.
  • Support for transparent and multilayer images.
  • Background images using PNG, BMP, JPG or GIF formats may be imported and scaled.
  • Anti-aliased Text with user defined font, colour and Unicode support.
  • Polygon button outlines provide very close button spacing.
  • 2 Way RS232, Ethernet and IR routing when used with the Axium AX-R4D/R1D and supplied Applets.
  • Wiring:
    • Up to 95m CAT5E ‘Home Run’ RJ45 terminated cable when using the legacy connection.
    • Up to 95m CAT5E, 568A terminated using the IP connection

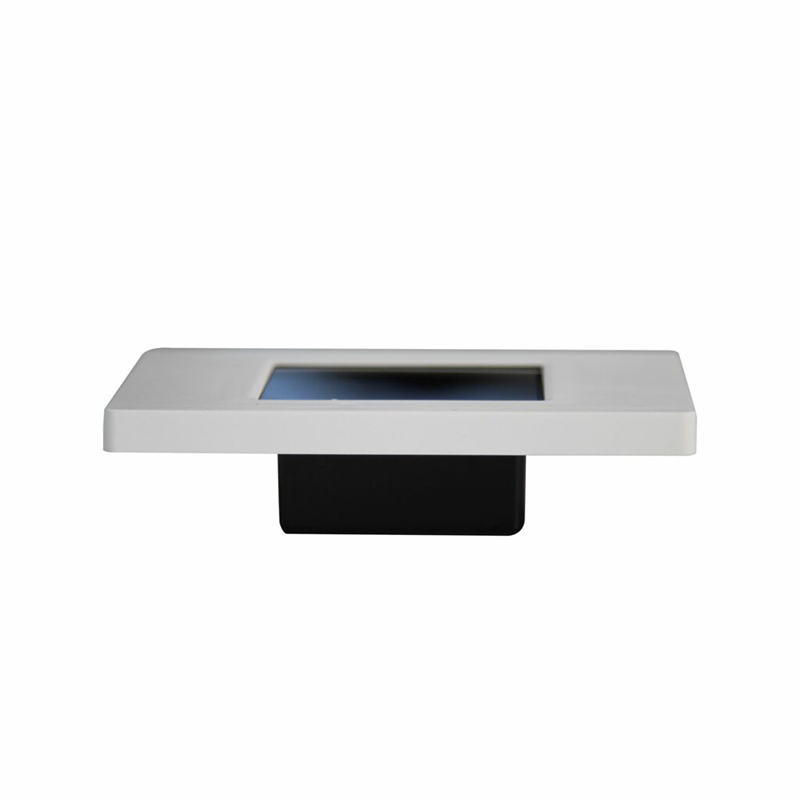

  • Mounting for European or Australasian / USA style flush box.
  • White and Black cover plates supplied for both European and Australasian / USA styles.
  • Current Applets:
    • Alarm Systems:
      • Arrowhead
      • ELK
    • Axium amplifier feedback
    • Axium Media Player
    • Axium Alarm configuration
    • Clock
    • Integra
      • CD/DVD/BD Player
      • Receiver incl Z1, 2, 3, and 4
    • Lighting
      • Bticino
      • C-Bus
      • ​Fibaro
      • ​Lutron
    • NEC Projectors
    • Request DMS
    • Schedule editor
    • Slideshow Screen Saver
    • Variables Display
