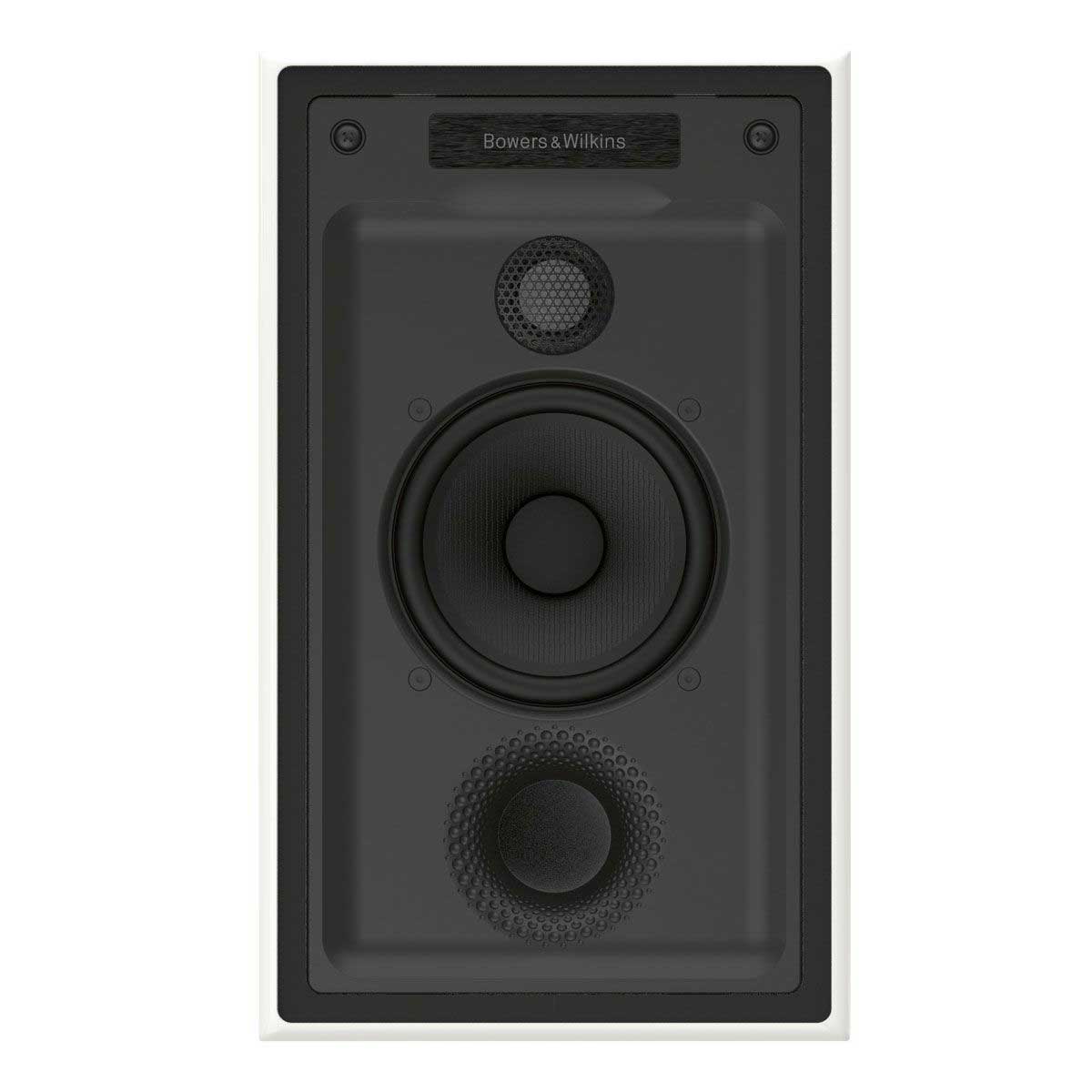

Bowers & Wilkins CWM7.5 S2 In-wall Speaker


The Bowers & Wilkins CWM7.5 S2 In-wall Speaker shares the acoustic configuration of the 707 S2.

Like its sibling, it houses a 130mm (5in) bass/mid-range Continuum cone driver plus a 25mm (1in) Carbon Dome tweeter, coupled to a forward-firing FlowportTM for outstanding bass response from a relatively small footprint.

Product is Available to Order. Pricing is for each.

Available On backorder

Bowers & Wilkins CWM7.5 S2 In-wall Speaker

the Bowers & Wilkins CWM7.5 S2 In-wall Speaker has a critically formed baffle constructed from glass-reinforced ABS plus its own integrated back box, ensuring retrofittable installation plus optimum performance. It’s an outstanding performer when used in stereo or multi-room installations, and is equally at home as the rear speakers in a larger theatre application.

  • 2-way in-wall system
  • 1″ Carbon Dome Tweeter
  • 1 x 5″ Continuum Cone Bass/Midrange
  • Flowport
  • 25 – 150W

Your favorite music: heard, but not seen

Your home is as individual as the music you love, and so are your particular requirements. Bowers & Wilkins’ range of Integrated Solutions speakers delivers their world-famous sound quality with a range of options to suit every type of home.

Bespoke installations to suit your home

Bowers & Wilkins understands you want superb sound but don’t want to rearrange your home to enjoy it. So, it has developed an extensive range of in-wall and in-ceiling speakers, delivering high-performance options to suit every space and every home.

Hear music exactly as the artist intended

Their Integrated Solutions speakers are built by the same people, to the same standards, and with the same objectives, as their regular loudspeaker ranges. There’s only one difference: these speakers are nowhere to be seen.

Technical features – Carbon Dome tweeterContinuum mid/bassFlowport™
Description – 2-way in-wall systemDrive units 1x ø25mm (1 in) Carbon Dome high-frequency1x ø130mm (5 in) Continuum cone mid/bassFrequency range (-6dB) -6dB at 43Hz and 33kHz

Frequency Response – -3dB45Hz – 28kHz ±3dB
Sensitivity – 86dB spl (2.83Vrms, 1m)Harmonic distortion2nd and 3rd harmonics (90dB, 1m)<1% 90Hz – 33kHz<0.5% 120Hz – 33kHz
Nominal impedance – 8Ω (minimum 3.8Ω)
Recommended amplifier power – 25W – 150W into 8Ω on unclipped programme


Frame height – 356mm (14in)
Frame width – 212mm (8.5in)
Depth (behind surface) – 102mm (4in)
Cut-out height – 331mm (13in)
Cut-out width – 187mm (7.4in)
Cut-out height w/PMK – 336mm (13.2in)
Cut-out width w/PMK – 192mm (7.6in)
Reservoir box height – 385mm (15.2in)
Reservoir box width – 181mm (7.1in)
Protrusion – 8mm (0.32in)
Net weight – 3.8kg (8.38 lb)

PMK – 7.5W
