EverSolo AMP-F2 Power Amplifier

$1,649.00

COMING SOON…

Dynamic Power, Detailed Presentation

The Eversolo AMP-F2 is a 2 channel class D power amplifier, designed in collaboration with Starke Sound in Californian, and is based on the innovative NS600 module created by the Starke Sound team. The AMP-F2 features a high sampling rate of 600kHz and employs an efficient Class D amplification structure, coupled with optimised circuits to maximise audio quality. A newly designed SAPS audio-specific switch mode power supply significantly reduces noise and enhances dynamic performance. The AMP-F2 is also bridgeable, allowing flexible configuration for two channel or single channel setups.

Out of stock

Notify me when the item is back in stock.

EverSolo AMP-F2 Power Amplifier
EverSolo AMP-F2 Power Amplifier
$1,649.00

Contact Us
First
Last

Vigorous Output
The AMP-F2 is equipped with Starke Sound’s NS600 amplifier module. Each channel can output a constant 250W RMS (4ohms) @ 1% THD+N. When bridged the AMP-F2 can support up to 450 W RMS (2ohms) with THD+N still below 1%. This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs.



Accurate Sound, NS600 Module
The NS600 module by Starke Sound employs PurePath™️ Ultra-HD technology and advanced integrated feedback design, featuring high speed gate driver error correction functions. This technology achieves ultra-low distortion across the entire audio frequency range, delivering perfect high-end audio.



Powerful Drive
Featuring a 600W high-efficiency, low-ripple, low-EMI switch mode power supply, the AMP-F2 delivers consistent and powerful output, extremely low noise and enhanced dynamic performance across the system.



Environmentally Friendly Power Consumption
The AMP-F2 has an extremely low standby power draw (0.5W) and idle power consumption (14W) meaning it is kinder to your energy bill.



Aluminium Body, Shielded Design
The AMP-F2’s chassis is made from aluminium with complete self-protection and an anti-interference design to avoid disturbances from various electrical environments. The AMP-F2 is also designed to perfectly match the size of the DMP-A6, DMP-A6 Master, and DAC-Z8. IT is also compatible with the DMP-A8 and DAC-A6.



One-touch Activation, Seamless Control
Equipped with a powerful 12V trigger, this 3.5mm mini-jack connection allows you to create a simple network between all Eversolo products and the AMP-F2 ensuring a seamless power on and standby experience. Once connected, it enables one Eversolo product to control the power supply of other products in the system. When you power on a single device, the rest of the system will automatically turn on.

  • 145W @ 8Ω (1% THD), 250W @ 4Ω (1% THD)
  • 2 channel Class D power amplifier
  • Bridgeable for mono applications
  • Compact chassis is a perfect match for DMP-A6 / A6 Master / DAC-A8 etc
  • Developed in collaboration with Starke Sound
  • NS600 amplifier module with PurePath™️ Ultra-HD technology
  • Low-ripple, low-EMI switch mode power supply
  • 12V trigger function works seamlessly with other Eversolo products
Output Power 250W RMS at 4Ω(1%THD,per channel)145W RMS at 8Ω(1%THD,per channel)
Bridge Mode Output Power 450W RMS at 2Ω(Bridge Mode)
Channel quantity 2 Channels
Amplifier type Class D
Frequency Response 10Hz-20kHz -1.2dB
Maximum output current 16.5A(per channel)/ 33A(Bridge)
Signal-To-Noise Ratio(SNR) >110dB,”A” weighted 4Ω 260W

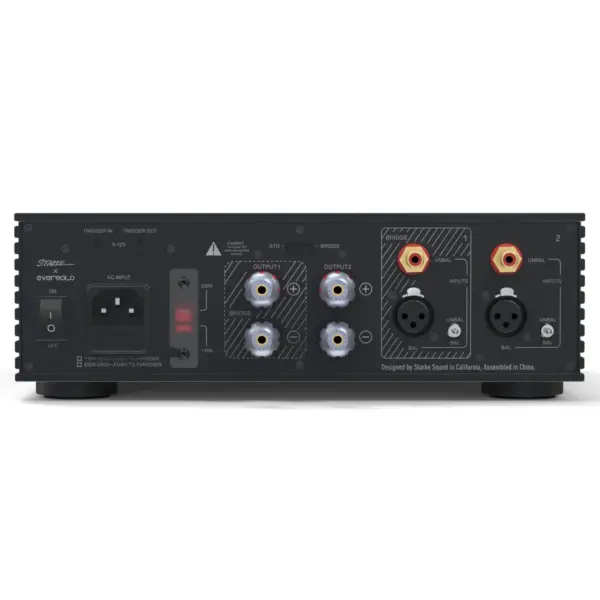

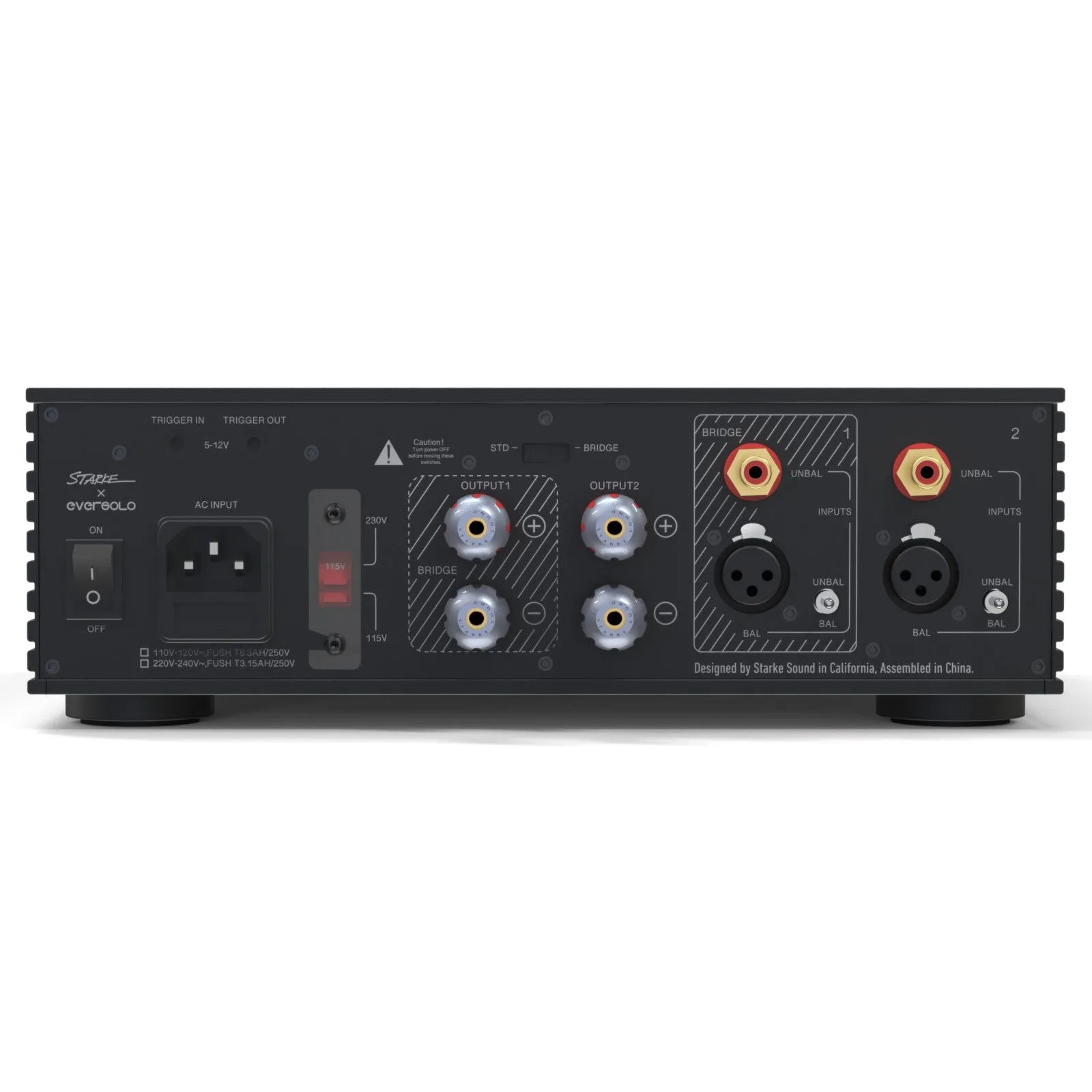

Input terminals 2-Channel RCA Input ;2-ChannelXLR Input
Input Impedance RCA 10.5K ohm /XLR 21.7K ohm
Output terminals 2 pairs beryllium copper binding post,custom made by Starke Sound
Output Impedance 0.09 ohm 1kHz
Damping coefficient 100
Full size W 270 mm x D 228 mm x H 90 mm (w/ foot))
Weight 3.65Kg
