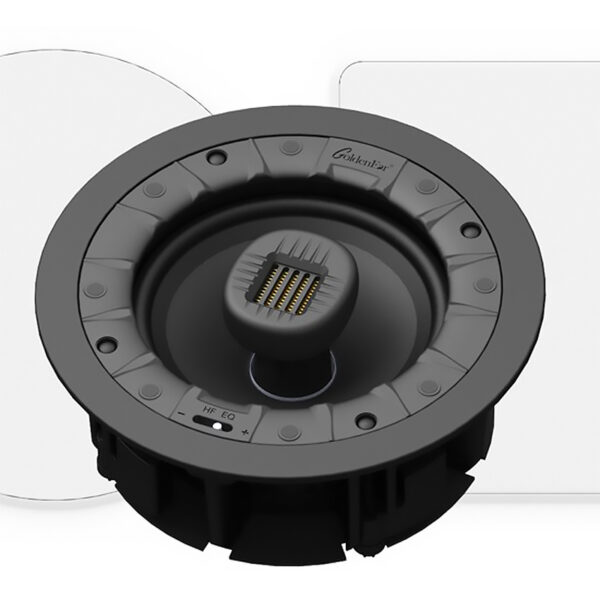

The 525 and 650 are designed for in-ceiling and in-wall use. Solidly constructed of a marble-infused polymer, the unitized structure actually has the extraordinary high-definition wide-dispersion driver built as an integral part of the frame/flange construction in order to minimize their footprint. The driver motor structures and cone/voice coil assemblies (5.25″ in the 525 and 6.5″ in the 650) are based on those utilized in GoldenEar’s Tritons and Aon speakers. Of course, both also incorporate the GoldenEar High Velocity Folded Ribbon (HVFR™) tweeter and a complex crossover to perfectly blend the drivers for superb performance. Price per Pair.
A tremendous amount of work has gone into the acoustical engineering of the Invisa Series speakers in order to deliver the highest sound quality possible in an architectural format. All four models incorporate a High Velocity Folded Ribbon (HVFR™) high-frequency radiator similar to the unit used in GoldenEar’s award-winning Triton Two Tower. The Invisa 525 and Invisa 650 utilize a one-piece driver/frame/flange construction in order to minimize their footprint. Solidly constructed of a marble-infused polymer, the unitized structure actually has the high-definition wide-dispersion driver constructed as an integral part. The Invisa HTR 7000 incorporates our Focus-Field™ Technology with a cast-basket 7″ bass/midrange driver and HVFR™ tweeter that are angled under the grille for optimum performance as Main and/or Surround speakers in a high-quality in-ceiling home theater and music system. The Invisa MPX, with its advanced spaciousness and dispersion, is perfect for in-wall Main or Surround use. All four systems have complex multi-element crossovers to precisely blend the drivers for seamless, exquisitely natural sound quality.
Speaker Dimensions (H X W X D) 8-1/8˝ diameter x 3-7/16˝ depth
Grille Dimensions 8-21/32˝ x 8-21/32˝
Round Grille Dimensions 8-11/16˝ diameter
Cutout 7-1/8˝ diameter
Weight 4 lbs (product) / 5.5 lbs (shipping)
Frequency Response 25 Hz – 35 kHz
Efficiency 90 dB
Nominal Impedance Compatible with 8 ohms
Driver Complement One – 6-1/2˝ High-Definition Cast-Basket MVPP™ Mid/Bass DriversOne – Pivotable HVFR™ High-Velocity Folded Ribbon Tweeter
Recommended Amplification 10 – 250 watt/channel
