Ultra High Performance

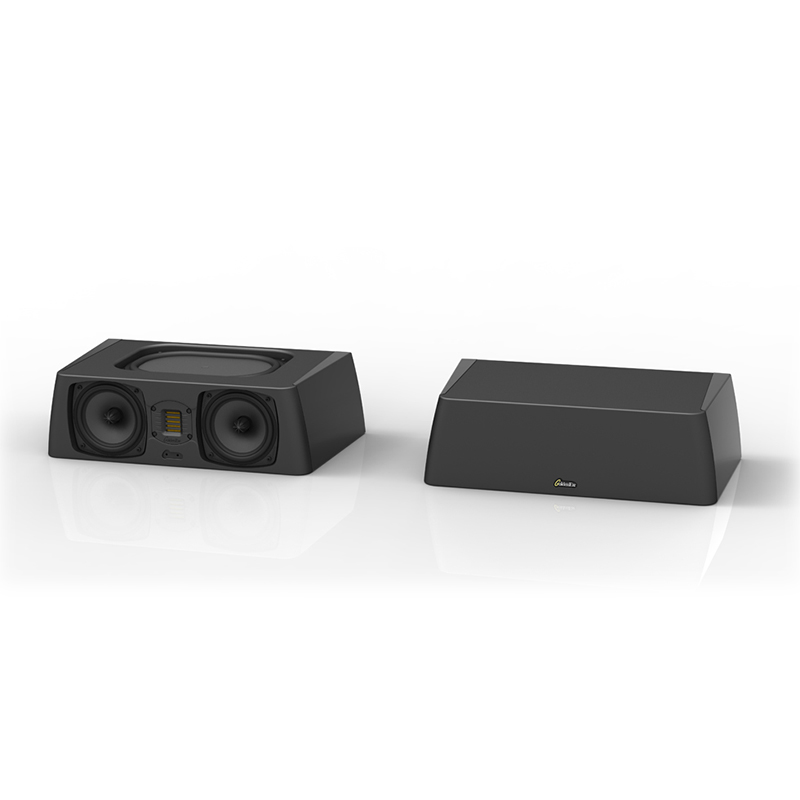

The SuperCenter X and SuperCenter XL are ultra-high performance center channel speakers appropriate for the highest quality home theater systems. They are designed to perfectly complement and match our Triton Towers and Aon Bookshelf loudspeakers, both sonically and cosmetically. Their sophisticated industrial design is both attractive and functional, both minimizing their apparent size as well as enhancing their acoustic performance.
Both new center channel models incorporate a D’Appolito Array of two newly developed long-throw 5-1/4˝ bass/midrange drivers surrounding one of our signature High Velocity Folded Ribbon (HVFR) tweeters. The 5-1/4˝ drivers incorporate spiderleg cast baskets for rigidity and minimal internal reflection, as well as our unique multi-vaned phase plugs (MVPP), to minimize cross-apex wave propagation interference.
Both also utilize top-mounted pressure-coupled quadratic planar low frequency radiators that both extend the bass response as well as provide the bass/midrange drivers with ideal acoustic loading and damping. Only 1˝ of clearance is required above the bass radiators.
Sonically, the new centers offer the same lifelike, highly detailed, high-resolution, smooth, open, boxless sound quality that our SuperSat centers are famous for, but with additional low frequency extension for greater dynamic range and impact.
Dimensions 20˝ W x 5-3/4˝ H x 11˝ D ,Weight 15 lbs (product) / 0 lbs (shipping)
Frequency Response 45 Hz – 35 kHz
Efficiency 90 dB
Nominal Impedance Compatible with 8 ohms
Driver Complement Two – 5-1/4˝ Cast-Basket Mid/Bass Drivers One – HVFR™ High-Velocity Folded Ribbon High-Frequency Radiator One – 7˝ x 10˝ Quadratic Planar Low-Frequency Radiator
Recommended Amplification 20 – 200 watt/channel
