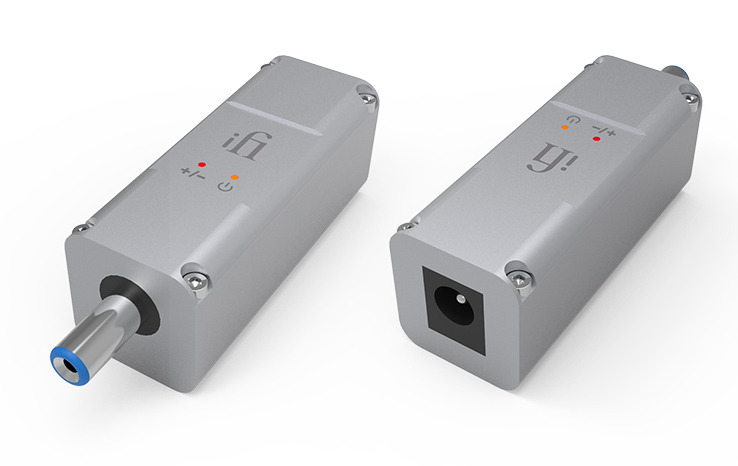

With trickle-down technology from Abbingdon Music Research (AMR), the very latest product from iFi is the DC iPurifier; a noise-cancellation product aimed to enhance the existing, ubiquitous Switch Mode Power Supply (SMPS).
Generic SMPS designs are very noisy because they were never intended for audiophile applications.
The DC iPurifier sits in-between the SMPS and the device such as; router, DAC, set top box, media streamer, laptop or desk mixer. And with the latest Active Noise Cancellation® technology, from 5 volts all the way up to 24 volts (up to 3.5 amps) the DC iPurifier sharply reduces noise to improve the quality of the device.
Compatible with all power supply designs 5V-24V/3.5A/84W
The DC iPurifier handles 5v through to 24V. Takes up to 3.5A or 84W. For different types of DC barrel connectors, the DC iPurifier works with 5.5 x 2.1mm but also ships with adapters for 5.5×2.5mm and 3.5×1.35mm. These three fittings cover the gamut of DC barrel connectors.
Professional audio applications typically require a ‘centre negative’ power supply. To lower noise with the DC iPurifier, use a ‘centre positive’ power supply at the input and use a special white ‘inverter’ at the output.
Built-in polarity protection
Red protection LED will be lit if the input polarity is reversed (If reversed polarity, please correct).
Ultra wide-band design, effective from 1Hz to above 5GHz
iFi leaves no stone unturned; the DC iPurifier is a ground-up, ultra-wide band design.
Effective from 1Hz all the way up to 5GHz. Crucially the strongest performance is in the audible range of 20Hz to 20KHz.
Active Noise Cancellation® derived from military radar technology
Drawing from the military field (specifically the Thales Spectra radar cancellation system deployed in the French Dassault Rafale jet fighter), iFi adapted this technology to exclusively introduce the Active Noise Cancellation® (ANC®) audio power system.
By generating a signal identical to the noise signal but in the exact opposite phase, it actively cancels all the incoming noise. ANC® is the perfect ‘antidote’ for power supply noise, the bane of all audio systems.
Got SMPS? Just add the DC iPurifier
Generic Switch Mode Power Supply designs are noisy – but they were only intended for mainstream use so noise was never a consideration. Just insert the DC iPurifier between the existing noisy power supply and the source; noise is reduced by a factor of 316x to 100,000x.
Be it home or professional audio, this is the most simple and most effective way of improving audio performance from arguably, one of the most noisy sources in a computer audio system.
Dimensions 62(l) x 19(w) x 18(h) mm
