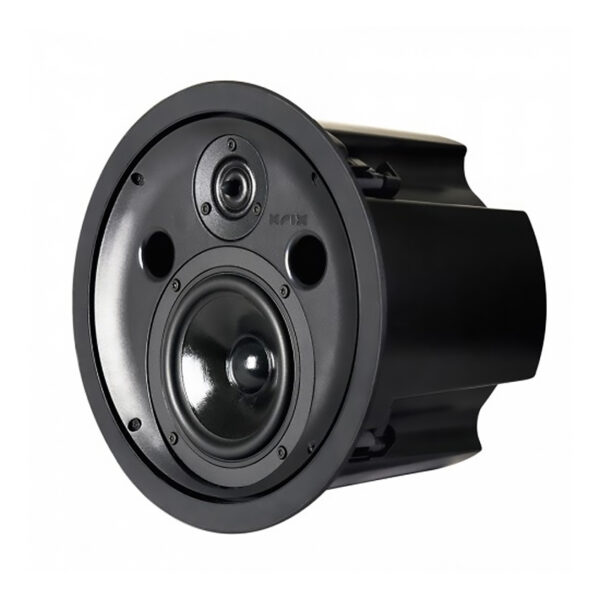

ATMOSPHERIX AS
Ideal for home cinema, stereo music, multi room audio, and high quality background music, the Atmospherix AS offer extended bass and output to distribute high fidelity music throughout your house. The ‘Architectural Series’ feature slim bezel magnetic grilles and an upgraded ring radiator tweeter.
Frequency Range 45Hz-40kHz in room response
Power Handling 20 – 120 Watts RMS recommended amplifier power
Sensitivity 90dB for 2.83 volts at 1 metre
Impedance Nominally 6 Ohms (minimum 3.6 Ohms)
Configuration 2-way
Enclosure Type Bass reflex, front vented,Dimensions 295mm diameter x 183mm mounting depth
Low Frequency Driver Cast aluminium basket with a nominal 130mm (5″) doped curvilinear paper cone. 30mm (1.2″) vented magnet voice coil wound on high temperature kapton former, with copper shorting ring
High Frequency Driver 26mm (1”) ring radiator tweeter
Input Terminals Gold plated spring terminals
Cut-out Diameter 247mm recommended
Weight 2.5kg each
