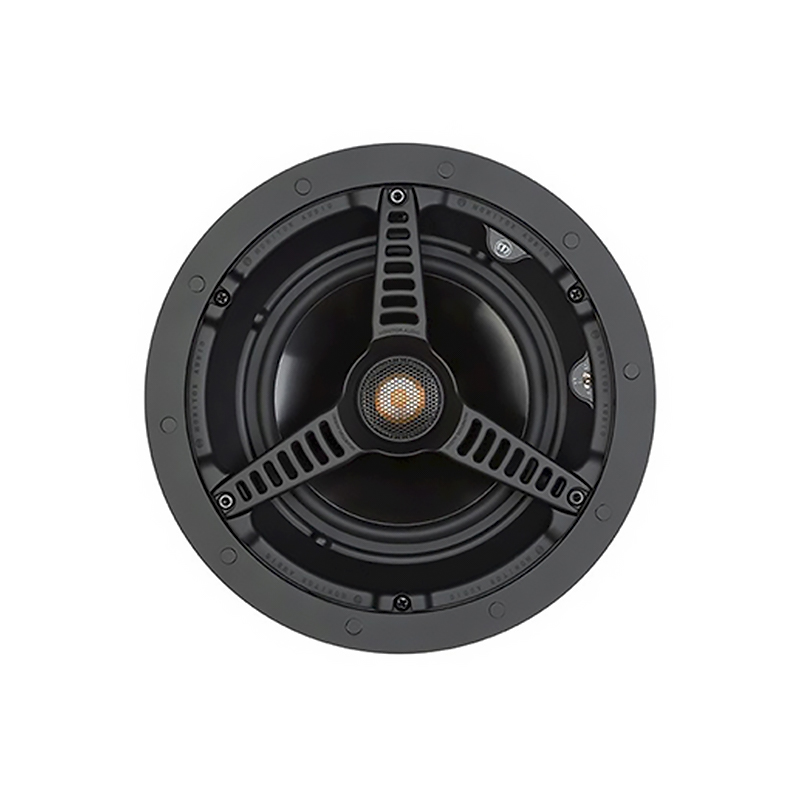

Monitor Audio C165

$370.00$666.00

Incorporating a 6 1/2 inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

Optional square or premium grille can be used with this model.

Monitor Audio C165
Monitor Audio C165
$370.00$666.00

Contact Us
First
Last

Technology

  • 2-way design with pivoting C-CAM tweeters (15 degrees of play).
  • High overall efficiency.
  • High frequency level adjustment (3dB).
  • Audio match with CP range 100 models, Climate 10, Bronze BX and Radius Series hi-fi speakers.
  • Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Fire retardant to UL-94 VO rating.
  • Splash and humidity proof for installation in shower room or pool areas.
  • Features dust protection cover that is designed to prevent the ingress of dirt or dust into the driver and crossover.
Frequency Response

60 Hz – 25 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

88.5 dB

Maximum SPL

107.4 dBA

Power Handling (RMS)

65 W

Recommended Amplifier Requirements

20 – 65 W

Drive Unit Complement

6 1/2″ MMP II cone bass driver
1″ C-CAM pivoting Gold Dome tweeter

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Diameter (Including Grille)

250 mm (913/16“)

Overall Depth (Including Grille)

120 mm (43/4“)

Mounting Depth

116 mm (49/16“)

Cut-Out Hole Diameter

211 mm (81/4“)

Optional Square Grille – Outer Dimensions

249 x 249 mm (9 3/16“)

Fixing Type

3 position Tri-Grip dog fixings

Construction Material

Mineral filled ABS, RoHS compliant

Weight

1.92 kg (4 lb 4 oz)

Pre-Construction Bracket

CM-B

Back Box

CSM-BOX
