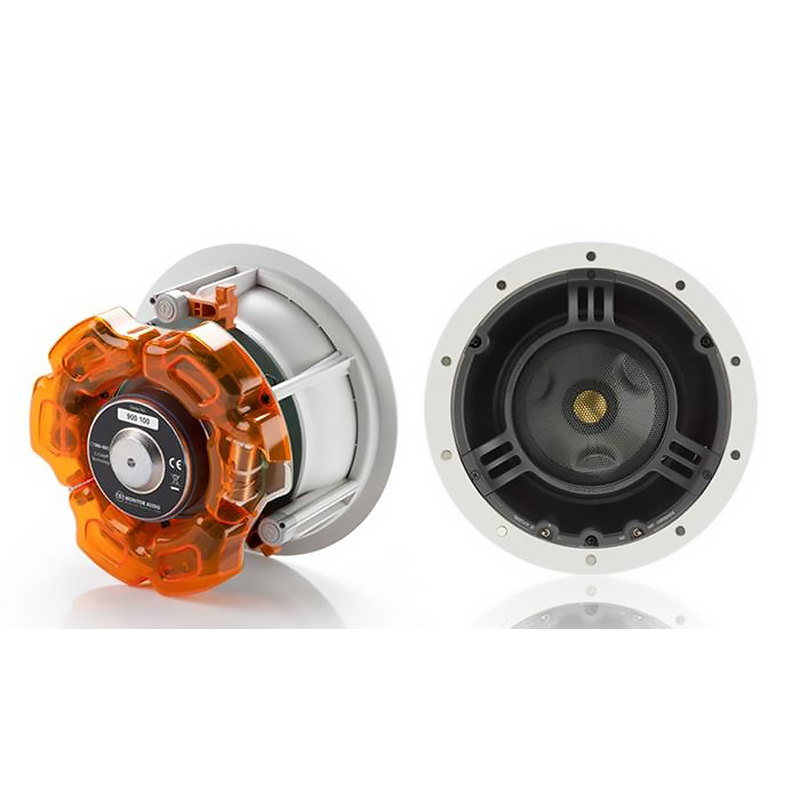

Features an 8-inch C-CAM® bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST® inverted midrange driver and a 1-inch C-CAM gold dome tweeter. True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation. Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3dB /0dB / -3dB) level adjustment, and boundary compensation (on / off) controls.
Monitor Audio C280-IDC
$670.00 – $1,340.00
or 6 weekly interest-free payments from $111.66 with
what's this?
Please see variation
Technology
- Unique IDC dual concentric mid-range/ HF module offering up to 18 degrees of pivot in all directions. Easily directed during post install set-up.
- C-CAM drivers throughout, providing coherent tonal balance and sonic signature across the entire audio frequency spectrum.
- Special Inverted C-CAM RST profile mid-range cone provides improved dispersion pattern.
- True 3-way designs.
- High overall efficiency.
- High frequency level adjustment (+/- 3dB).
- Boundary compensation control.
- Audio match with CP range 200 models and Silver Series hi-fi speakers.
- Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- All models are paint-able to blend with the living environment. Additional scrim material is provided for trouble free painting.
- All models use fire retardant materials specified to UL-94 VO rating.
- All models are splash and humidity proof for installation in shower rooms or pool areas.
- All models feature dust protection covers that are designed to prevent the ingress of dirt or dust into the driver and crossover.
Frequency Response 50 Hz – 30 kHz
Impedance (Nominal) 6 Ohms
Sensitivity (1W@1M) 90 dB
Recommended Amp Requirements 30 – 120 W
Drivers Unit Complement 8” C-CAM® cone bass driver, pivoting IDC module housing: 4” C-CAM RST® inverted mid range driver: 1” C-CAM gold dome tweeter
Adjustment Controls HF Level Switch (+3dB / 0dB / -3dB) Boundary Compensation Switch
Overall Diameter:(including grille) 285 mm (11 1/4 inch),Overall Depth:(including grille) 160 mm (6 5/16 inch)
Cut Out Diameter 247 mm (9 3/4 inch)
Mounting Depth 156 mm (6 1/8 inch)
Weight 3.42kg (7lb 8oz)
