British High-Fidelity Architectural Sound Redefined

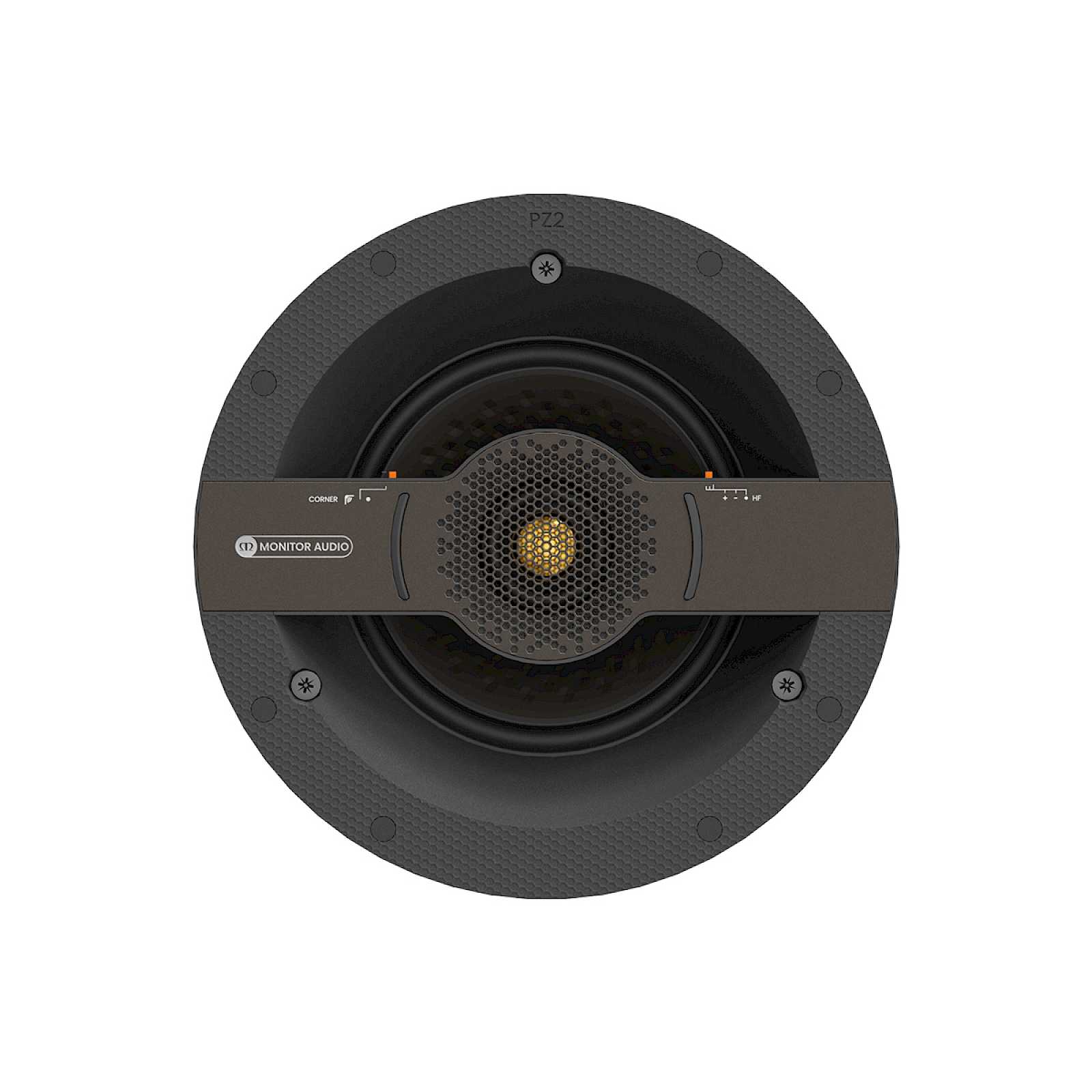

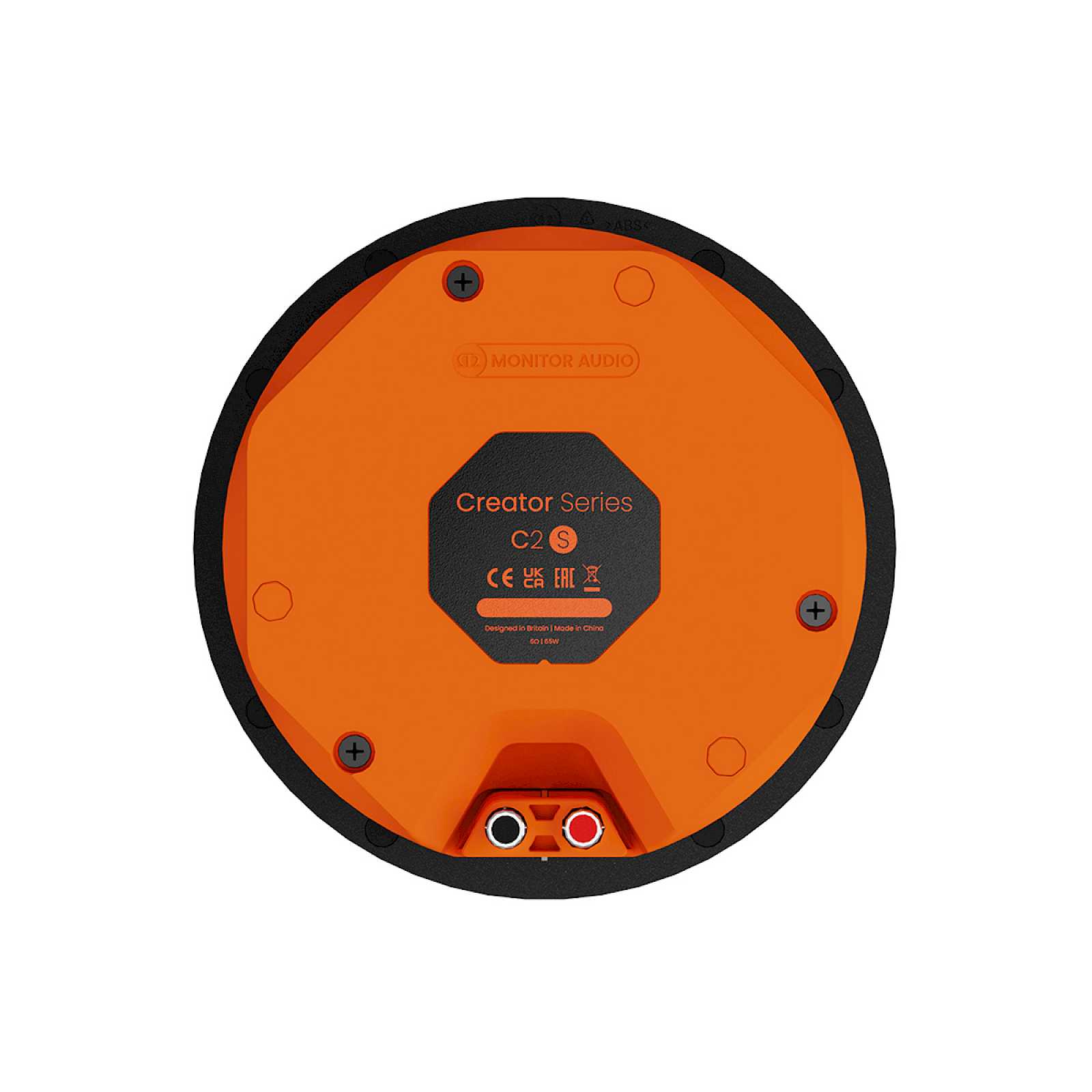

This small Tier 2 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear, lifelike, high-fidelity sound—of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 171 mm and uses the patented Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable, and strong fitment.
Transparent Design Philosophy
Every Monitor Audio product is the result of intense collaboration, drawing on decades of experience within the design team and ensuring that all the elements of performance, technology and design work in harmony.
Creator Series is the physical manifestation of this approach.
A Choice of Grilles offering Timeless Style
All Creator Series in-ceiling speakers come, as standard, with white grilles.
For those that want to ‘hide’ or ‘blend’ their integrated speakers with darker décor, black grilles are also available as an optional accessory in round and square designs.
Frequency Response, Installed (-6dB)
40 Hz – 30 kHz
Minimum Impedance (20Hz to 20kHz)
6.8 Ohm @ 150 Hz
Sensitivity (2.83Vrms@1m, Installed)
84 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
111 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
65 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
35 – 130 W
Drive Unit Complement
1 x 5″ (127 mm) RST II mid-bass driver
1 x 1 (25 mm) C-CAM tweeter
Crossover Frequency
LF/HF: 2.5 kHz
Mounting Depth
99 mm (37/8“)
Cut-Out Hole Diameter
171 mm (63/4“)
External Dimensions (Including Grille (H x W x D))
201 x 201 x 103 mm (715/16 x 715/16 x 44/16“)
Weight (each)
1.5 kg (3 lb 5 oz)
Pre-Construction Bracket
CS-B
Cabinet Finish
Matte black & Orange & Bronze
Sold As
Single Unit with CS-Round Grille (white)
