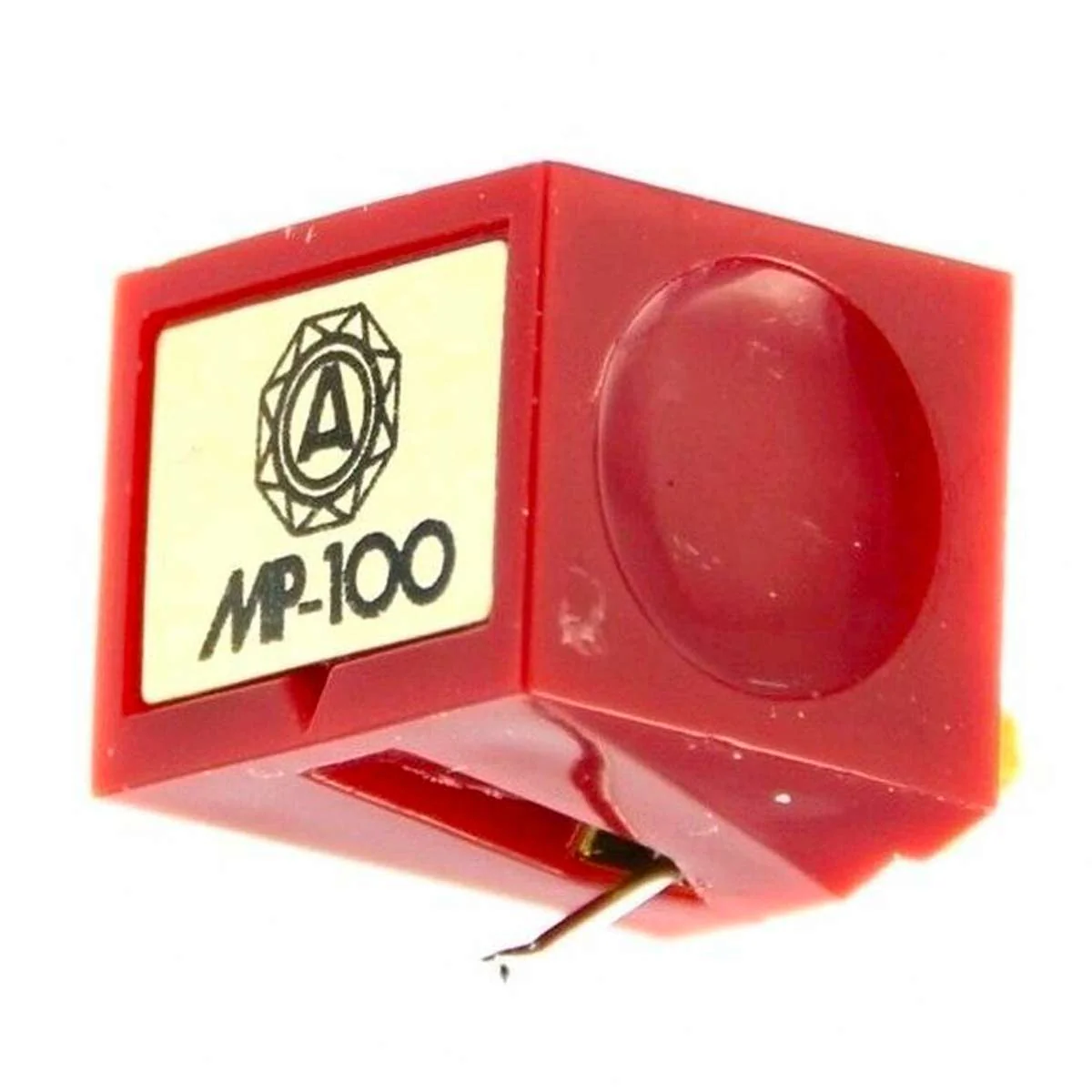

Nagaoka MP-100 Replacement Stylus

Type: Moving Magnet

Cantilever: Lightweight aluminium alloy

Stylus type: Conical diamond with .0006 inch radius

Weight: 6.5 grams

Output voltage: 5 mV (5cm/sec)

Frequency characteristic: 20 – 20,000 Hz

Channel balance: Better than 2.0 dB

Channel separation: Better than 22 dB at 1 kHz

Recommended loading: 47,000 ohms

Dynamic Compliance: 5.5 x 10-6 cm/dyne

Static Compliance: 18 x 10-6 cm/dyne

Tracking force range: 1.5 – 2.3 g

Break-in period: 30 hours

Replacement stylus: JN-P100
