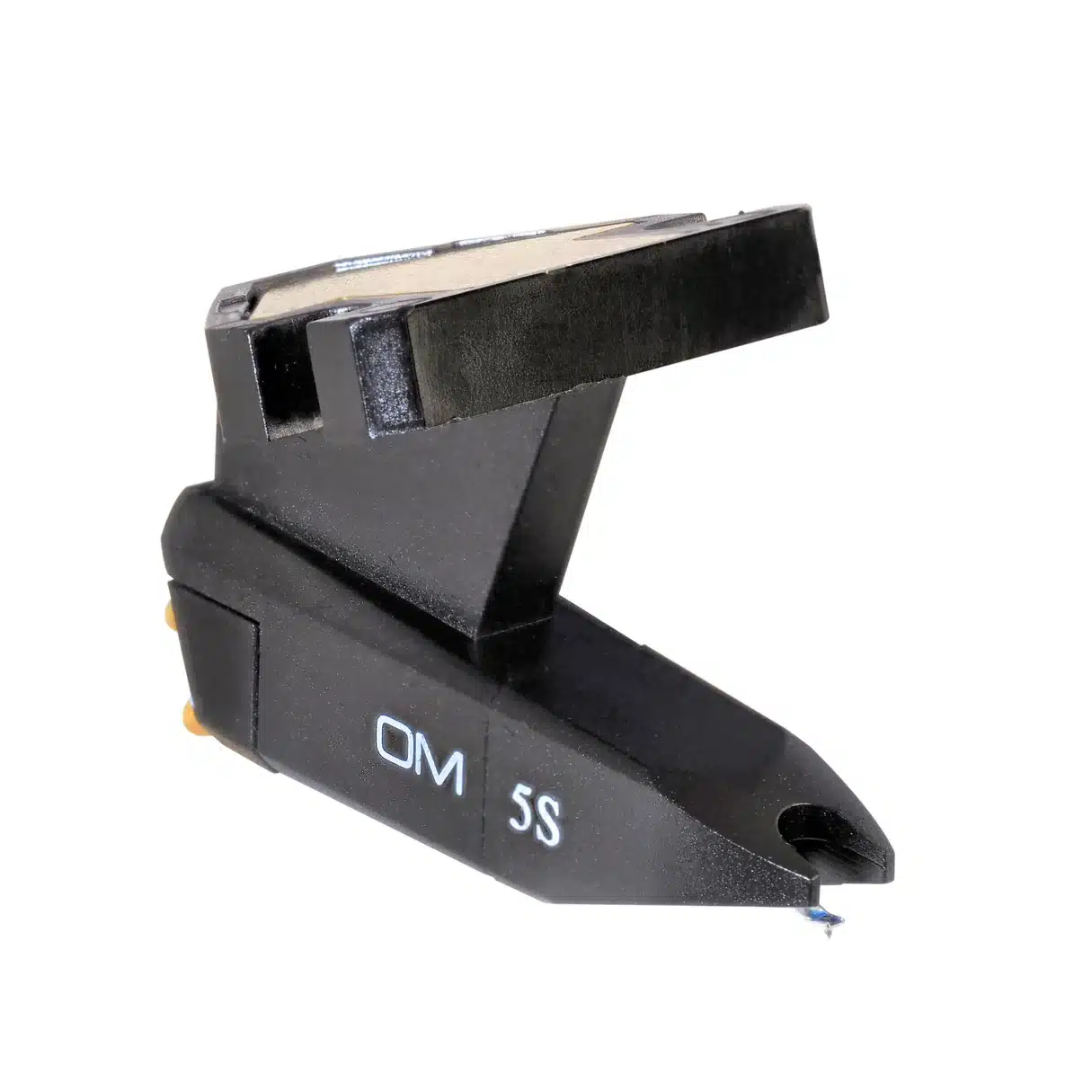

Ortofon OM 5S Cartridge

$95.00

The OM 5S features Spherical stylus, robust and economic solution for play back of vinyl records.

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at any one of these cartridges will reveal Ortofon’s answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.

In stock

Hi there! How can we be of assistance?

Styli types and interchangeability

By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application, and budget.

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.

Cartridge Fitting Service $30.00

The OM 5 Series

The Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E and Super OM 5E.

  • The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
  • The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
  • The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The Super OM 5E major improvements:

  1. By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation, and reduced distortion.
  2. OM Super cartridges models have split pole PINs which reduces magnetic losses at the treble end. This technology extends the frequency range and improves phase linearity.
  3. The OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound), which ensures high rigidity and freedom from resonances.
  • Channel balance at 1 kHz
    2 dB
  • Output voltage at 1 kHz, 5cm/sec
    4.5 mV
  • Channel separation at 1 kHz
    20 dB
  • Frequency response 20 Hz – 20 kHz
    20-20.000 Hz
  • Tracking ability at 315 Hz
    60 µm
  • Compliance, dynamic, lateral
    20 µm/mN
  • Stylus type
    Spherical
  • Stylus tip radius
    R 18 µm
  • Tracking force, recommended
    1.8 g
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    750 Ohm
  • Cartridge colour
    Black/Black
  • Cartridge weight
    incl. extra weight 5 g, excl. extra weight 2.5 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    450 mH
  • Recommended load capacitance
    200-500 pF
  • Replacement stylus
    Stylus 5S
