Volumio Rivo Plus
The Volumio Rivo Plus is the enhanced version of the award-winning Rivo digital transport.
Engineered based on user feedback, Rivo Plus (or Riva+) elevates the already excellent qualities of the original.
Key upgrades include a dedicated ASIC for cleaner S/PDIF and AES-EBU outputs, improved MEMS clocks for lower jitter, I2S over HDMI connectivity for compatible high-end DACs, and a 12V trigger to power on/off other components.
If you demand the pinnacle of digital transport performance, the Rivo+ is the solution.

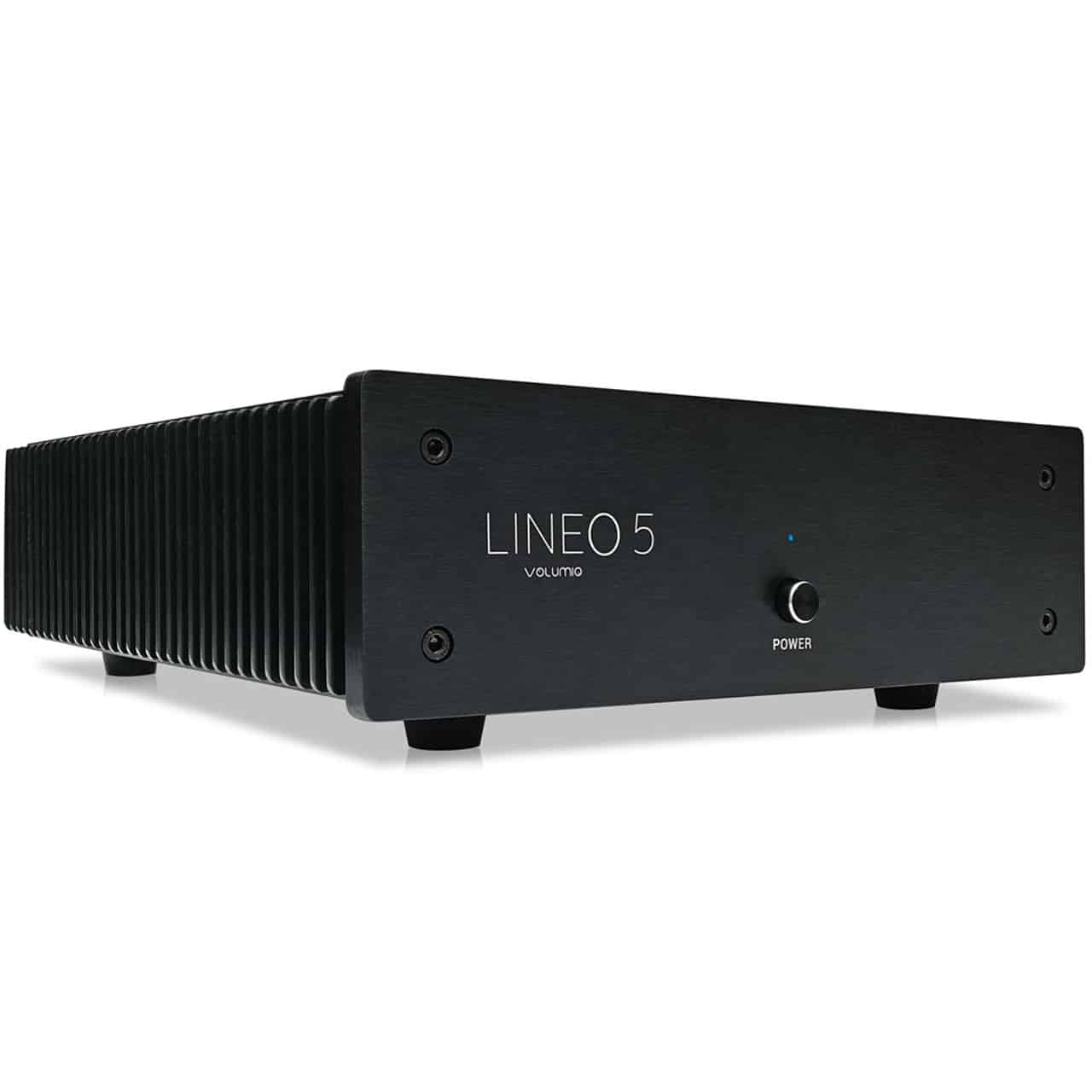

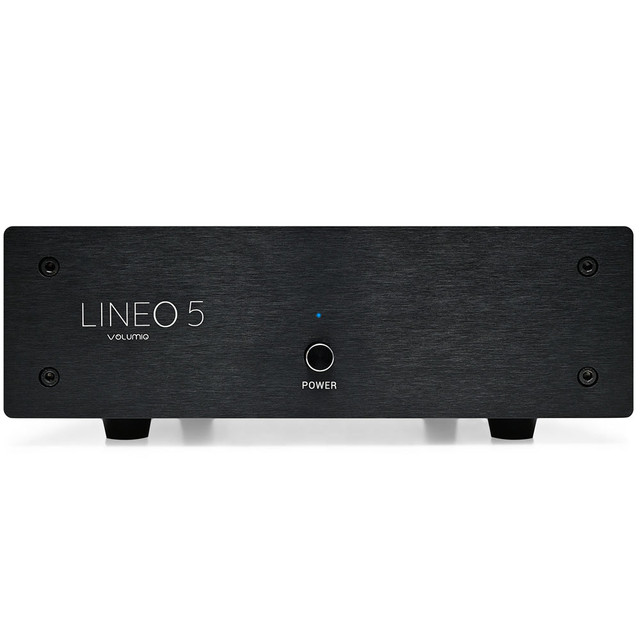

The Lineo5 is designed with an emphasis on honesty and simplicity, featuring a sleek aluminum chassis with side-facing heatsinks provides efficient heat dissipation for dependable operation.
The straightforward, no-nonsense design makes it a valuable addition for audiophiles seeking stability sound clarity and fidelity.
THE ULTIMATE EXPRESSION OF PRECISION

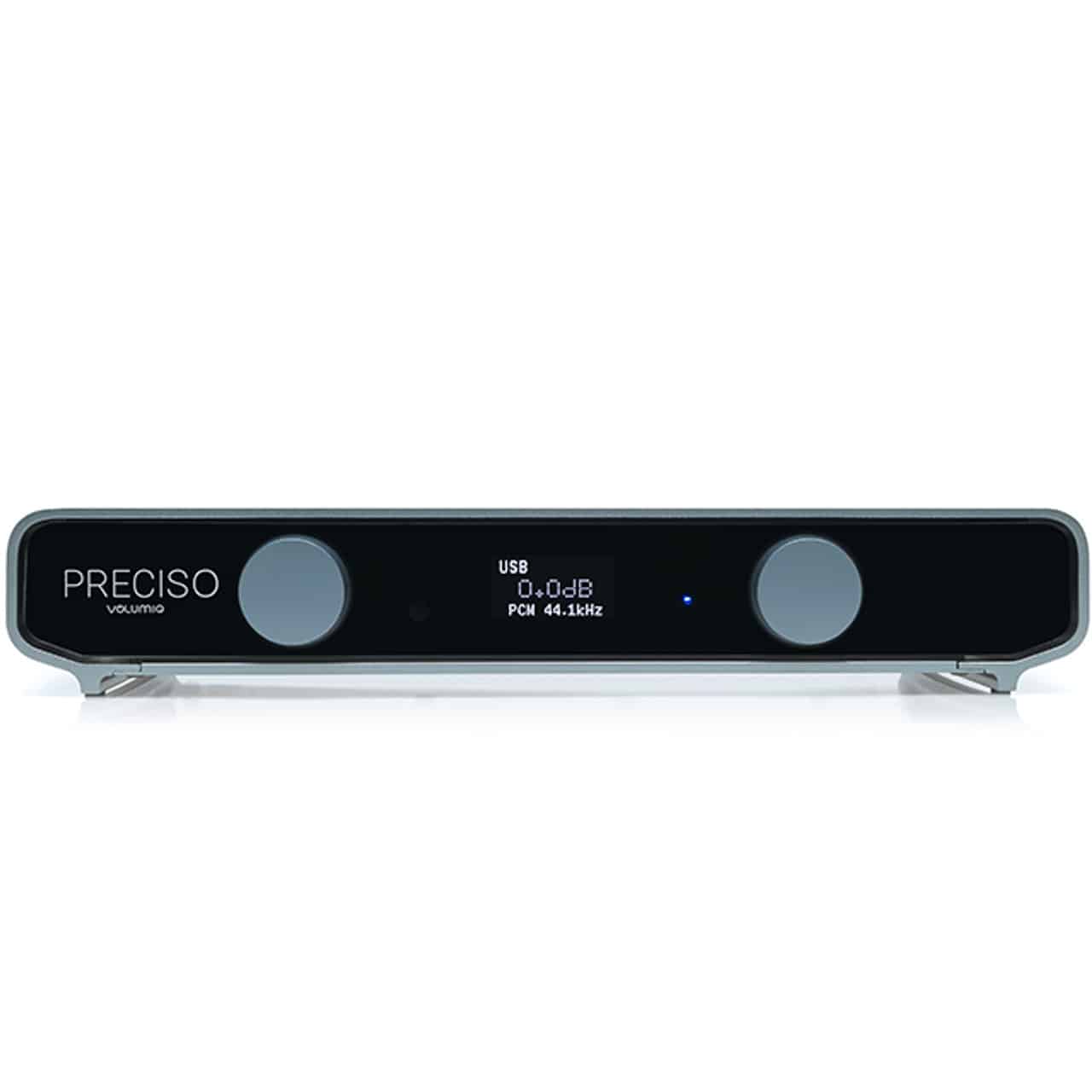

Preciso is Volumio’s ultimate expression of what a DAC can and should be. It is the result of obsessive engineering, relentless refinement, and a singular goal: to deliver the purest, most precise audio signal without breaking the bank. Preciso is the ultimate expression of everything we’ve learned at Volumio in crafting award-winning digital audio players.
- OPTIMIZED CLOCK STABILITY – Upgraded MEMS clocks in the USB HUB IC enhance reclocking and signal integrity at the USB DAC port, ensuring superior jitter stability and consistent audio quality.
- I2S/DSD OVER HDMI CONNECTIVITY ADDED – I2S/DSD over HDMI interface offers optimal sonic performance for some external DACs compared to S/PDIF, AES-EBU, and USB.
- DEDICATED SUPPORT – One-on-one support to help with everything from set-up to troubleshooting. Always available for you!
- EASY SETUP – Getting started just takes a couple of minutes with the Volumio official iOS and Android apps.
- MADE IN ITALY – All Volumio products are proudly designed and assembled in Florence Italy.
- ROON READY – All Volumio products are Roon Ready certified by Roon Labs. allowing seamless integration with Roon.
ENHANCED AUDIO VIA I2S/DSD OVER HDMI FOR DISCERNING LISTENERS
The Rivo+ features a dedicated ASIC to generate the S/PDIF and AES-EBU output signals, offloading this crucial task from the CPU. This specialized integrated circuit is designed to produce these digital output signals with uncompromising precision, free from any potential interference or jitter introduced by the main processor.
Powering this dedicated ASIC is a high-quality MEMS (Micro-Electro-Mechanical Systems) clock, which provides an exceptionally stable and low-jitter timing reference. Coupled with low-noise voltage regulators, this enhancement to the RIVO+ ensures the output signals maintain the utmost purity and refinement.
ENJOY MUSIC FROM YOUR FAVORITE SOURCES
Rivo+ lets you stream from your favorite music services
Bring your content from local or network-attached drives and play internet radio
ENGINEERED FOR SIGNAL PRECISION
Upgraded MEMS clocks in the USB HUB IC enhance reclocking and signal integrity for Rivo+ especially when connected to the USB DAC port. This delivers exceptional jitter and frequency stability, reducing susceptibility to temperature changes and aging for consistently high-quality audio output.
MULTIPLE CONNECTIVITY OPTIONS TO EXPLORE
S/PDIF and AES-EBU outputs generated by a dedicated ASIC with low-noise power supply + I2S/DSD over HDMI interface for optimized connection and enhanced audio performance.
VOLUMIO PREMIUM BUILT IN
On board, the Rivo+ is the latest version of Volumio – Volumio AI- that incorporates Supersearch an AI-powered search function that is meant to optimize your music discovery.
Volumio OS comes with a Multi-room capability that creates an integrated environment with other Volumio stations in your home. Learn More >>
Volumio Rivo Plus Spec:
AUDIO
- Digital Coaxial S/PDIF: Audio Output, up to PCM 192kHz/24bit and DSD64 via DoP
- Digital AES/EBU: Audio Output, up to to PCM 192kHz/24bit and DSD64 via DoP
- Digital I2S over HDMI Output: Audio Output, up to PCM 768kHz/32bit and DSD256
- USB Output: Audio Output, up to PCM 768kHz/32bit and DSD256 (via USB DAC)
POWER & CONNECTIVITY
- SB DAC Port: 1x USB 2.0
- USB: 1x USB 3.0, 1x USB 2.0
- LAN: Gigabit 10/100/1000M
- Wireless: Wi-Fi 802.11a/b/g/n/ac, 2X2 MIMO with RSDB
- Bluetooth: 0
ADDITIONAL INFORMATION
- Supported Formats: DSD, WAV, FLAC, Alac, Aac, Vorbis, Mp3 and others
- UPNP DLNA: Renderer with Open Home support
- Supported Services: Airplay via Shairport Sync, Spotify & Spotify Connect, TIDAL & TIDAL Connect, QOBUZ
- Available Plugins: Youtube, Squeezelite, Radio Paradise, Podcasts, Pandora, Fusion DSP, Roon Bridge, Soundcloud, Mixcloud
- CPU: Amlogic S905D3, Quad Core 1.9 GHz
- RAM: 2 GB DDR4
- Internal Storage: 16 GB EMMC
- Power Supply: 5V, 3A
DESIGN
- Designer: Design Narratives Ltd.
- Weight: 25 kg
- Dimensions: 27x15x5 cm

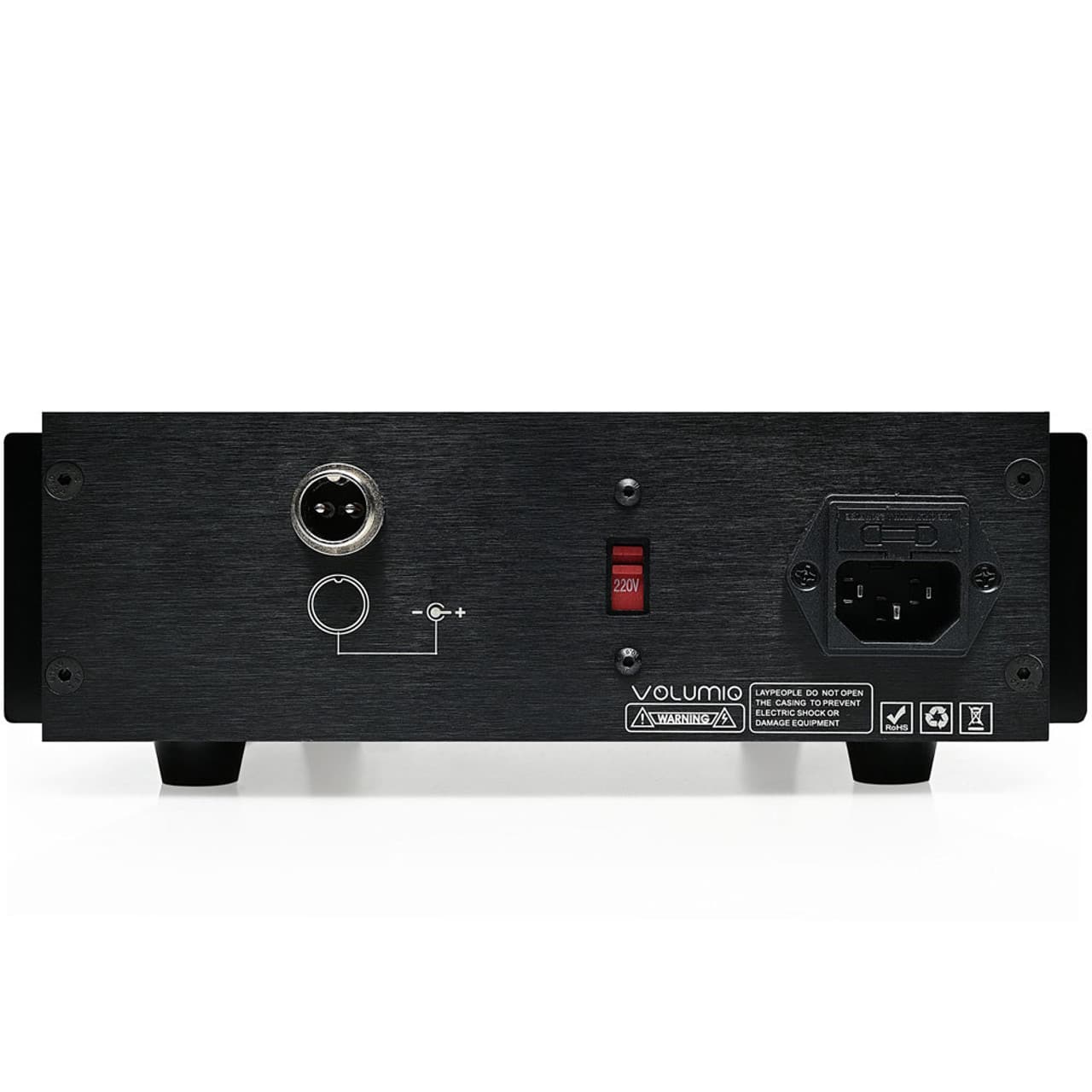

Volumio Lineo5 Spec:
Input voltage (Switchable)
AC 110V-120V 60Hz ; AC 220V-240V 50Hz
Output Voltage
5V DC
Output Current (max)
5 A
Power Consumption (max)
90W (Full output load)
Product Dimensions
27×22.7×7.7 cm
Product Weight
4000g
Volumio Preciso Spec:
Digital USB Input
Up to PCM 768kHz/32bit and DSD512
Digital S/PDIF Optical Input
Up to PCM 192kHz/24bit
Digital S/PDIF Coaxial Input
Up to PCM 192kHz/24bit
Digital I2S over HDMI Input
Up to PCM 768kHz/32bit and DSD512
Stereo Analog Balanced Output
Up to 4 Vrms
Stereo Analog Unbalanced Output
Up to 2 Vrms
