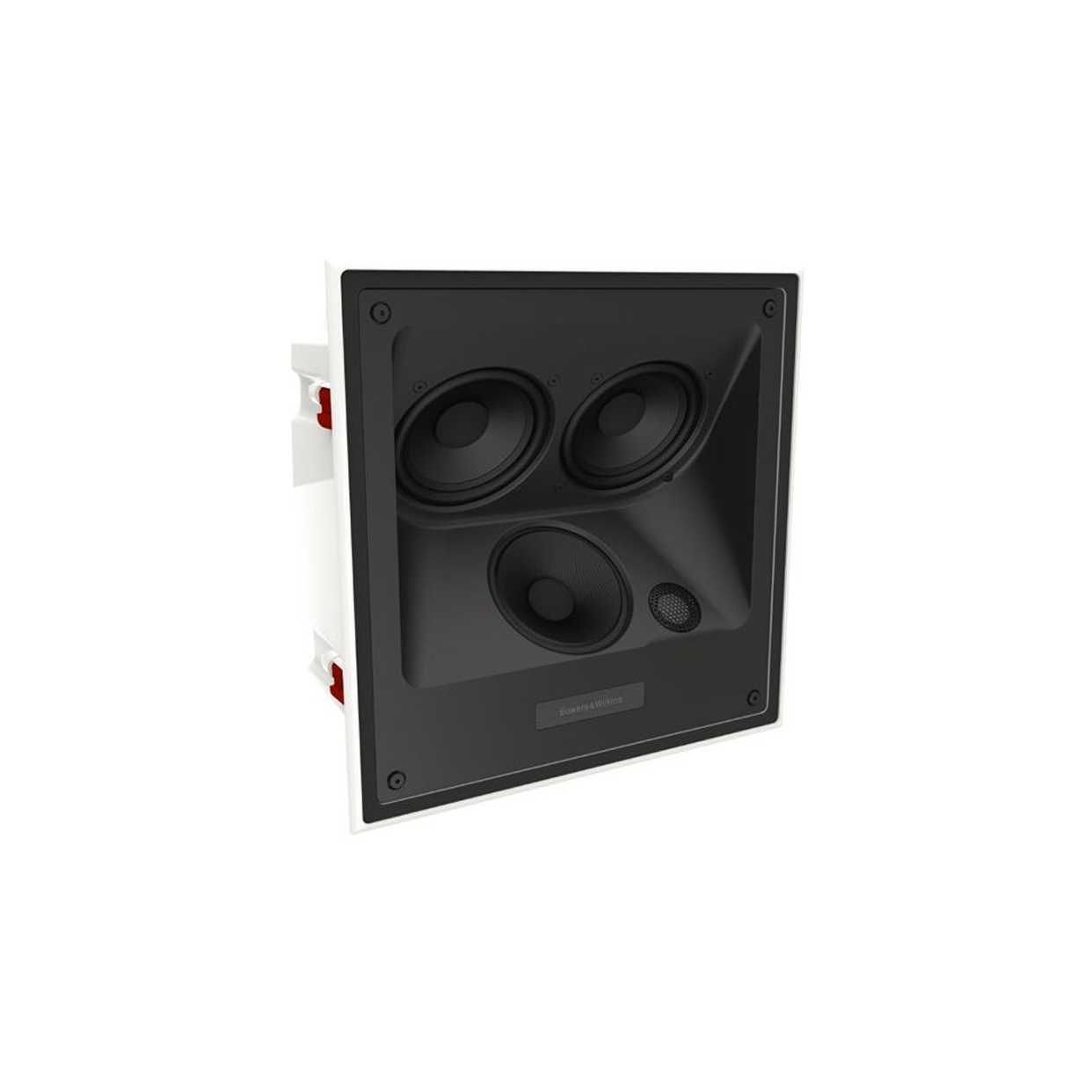

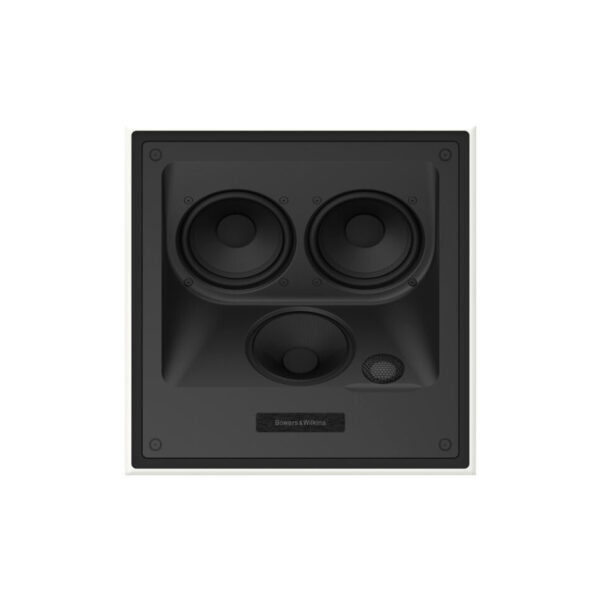

Bowers & Wilkins CCM7.3 S2 In-ceiling Speaker


The Bowers & Wilkins CCM7.3 S2 In-Ceiling Speaker is a reference series speaker for outstanding performance in both theatre and stereo applications.

Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and 2 x 130mm (5in) Aerofoil Profile bass drivers.

Product is Available to Order. Pricing is for each.

Available On backorder

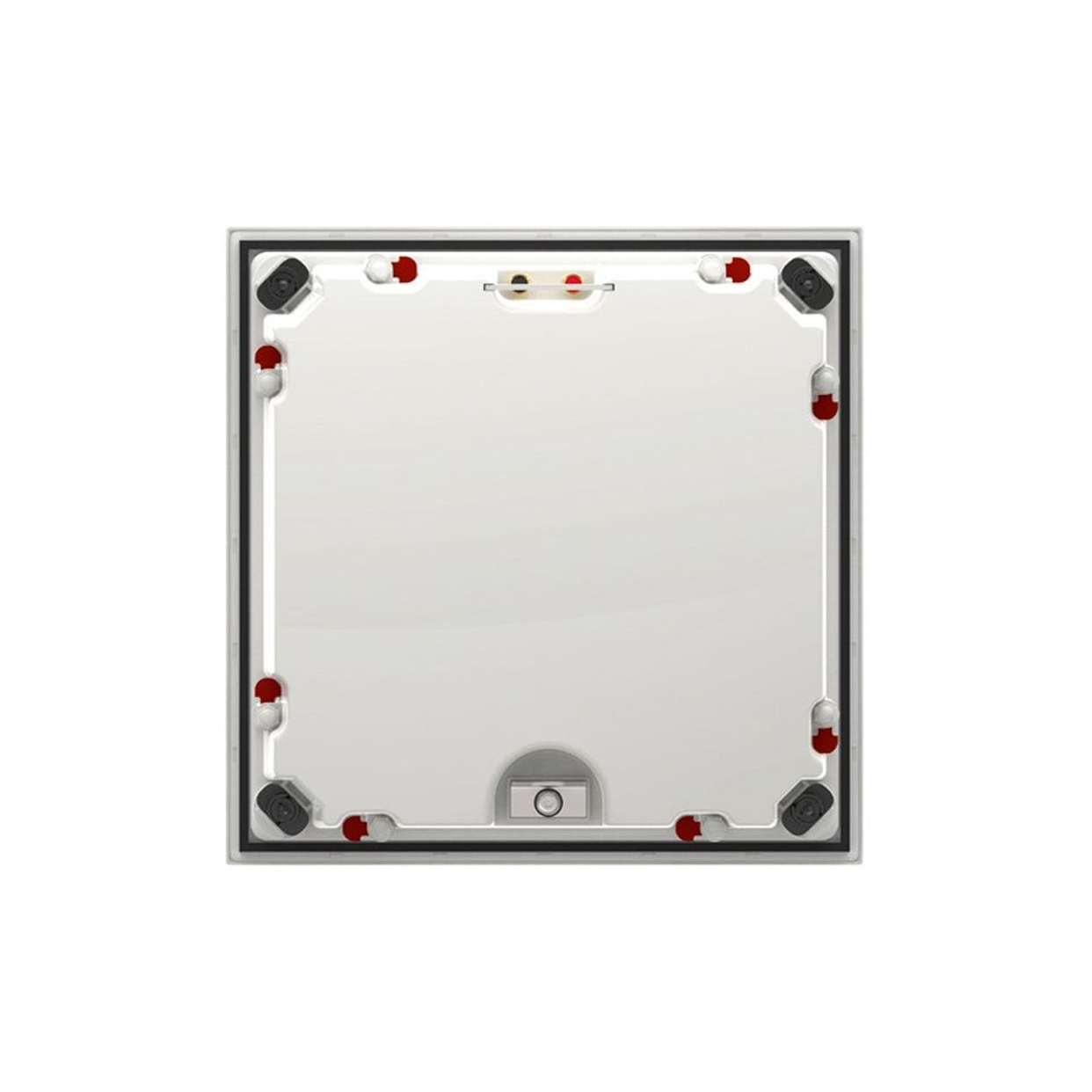

The Bowers & Wilkins CCM7.3 S2 In-Ceiling Speaker has a critically formed baffle which is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation. This design cuts down sound transfer between spaces and optimises sound quality.

  • Ideal for an elite in-ceiling music system, or as part of a Bowers & Wilkins home theatre system
  • Built-in back-box ensures well-balanced sound in any installation and protects against dust and dirt
  • 3-way, angled-baffle design
  • Drivers are angled for better off-axis response compared to drivers that point straight down
Your favorite music: heard, but not seen

Your home is as individual as the music you love, and so are your particular requirements. Bowers & Wilkins’ range of Integrated Solutions speakers delivers their world-famous sound quality with a range of options to suit every type of home.

Bespoke installations to suit your home

Bowers & Wilkins understands you want superb sound but don’t want to rearrange your home to enjoy it. So, it has developed an extensive range of in-wall and in-ceiling speakers, delivering high-performance options to suit every space and every home.

Hear music exactly as the artist intended

Their Integrated Solutions speakers are built by the same people, to the same standards, and with the same objectives, as their regular loudspeaker ranges. There’s only one difference: these speakers are nowhere to be seen.

Brand Bowers & Wilkins
Speaker Type In-Wall Speaker
Speaker Special Features 3-Way Speaker Design
Frequency Response 55 Hz – 28 kHz
Power 200 Watts
Woofer Size 5.25″
Woofer Bass Driver Size (mm) 2 × 133 mm
Midrange Size mm 100 mm
Tweeter 25 mm
Impedance (Ω) 8 Ω
Sensitivity 90 dB
Item Sold As Single
Grille Type Square
B & W Series CI Series 2


Product Dimension (H×W×D) mm 355 × 355 mm
Hole Cutout Dimensions 332 × 332 mm
Mounting Depth 194.5 mm
Product Weight (Kg) 9 Kg
