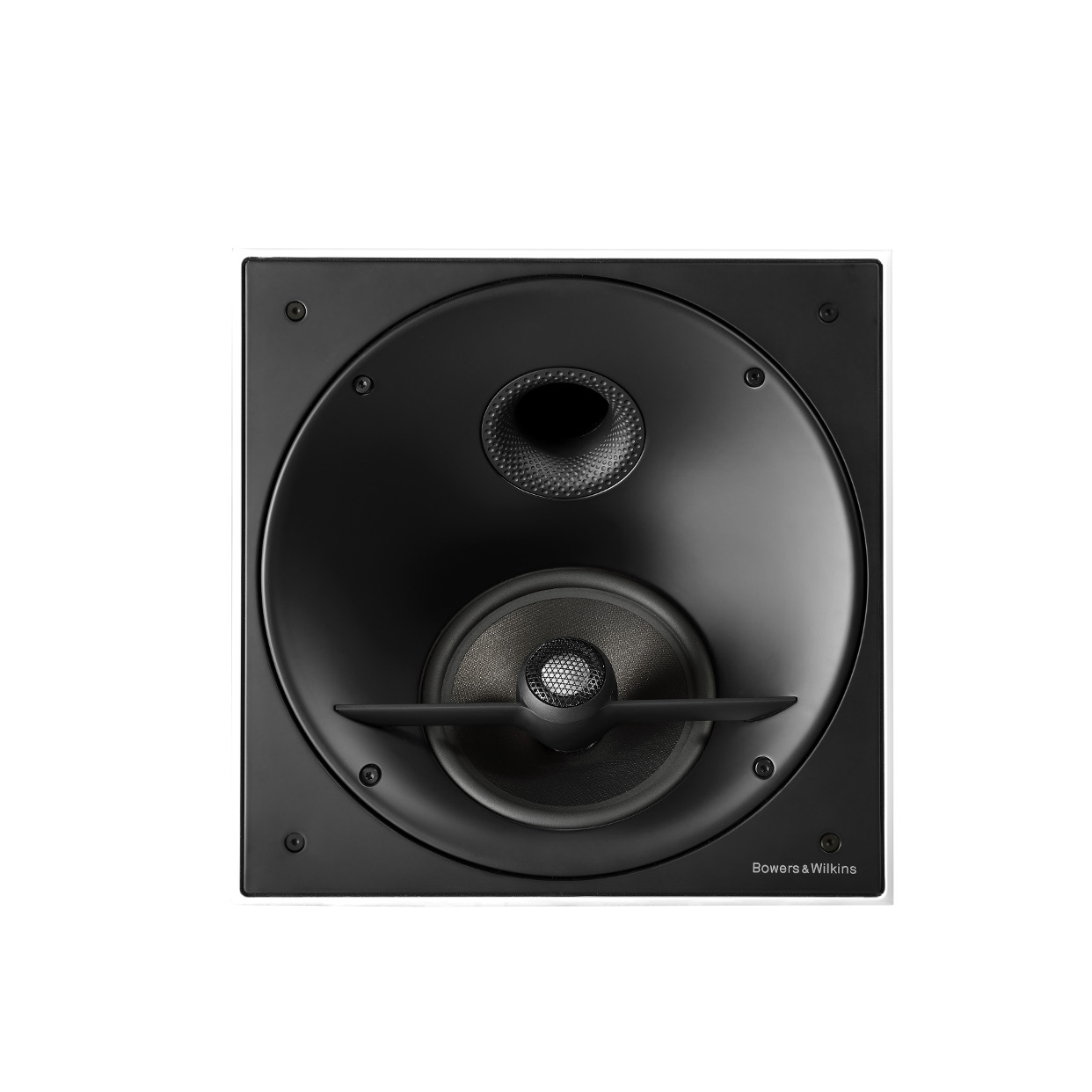

Bowers & Wilkins CCM8.5 In-ceiling Speaker


or from $5,499.00 today & 5 weekly interest-free payments of $300.00 with Laybuy

The Bowers & Wilkins CCM8.5 D In-Ceiling Speaker is a two-way in-ceiling speaker.

It features a decoupled Diamond dome 25mm (1 inch) tweeter and a single 180mm (7-inch) bass/mid Continuum driver. The drivers are located in a continuously rotatable mini-baffle which allows the user to ‘toe in’ the drivers for the best performance.

Product is Available to Order. Pricing is for each.

Available On backorder

Bowers & Wilkins CCM8.5 D In-Ceiling Speaker’s backbox is fully Matrix braced, for extra rigidity and improved performance. The backbox also includes bi-wirable cables that are guided to the terminal panel through tubes and connect to the baffle with a multi-pin connector. CCM8.5 D has also been developed to fit into existing back boxes enabling customers who purchased the original CCM8.5 to easily upgrade.

  • Aluminum Tweeter ‘wing’
  • Rotatable aluminum mini-baffle allows ‘toe-in’
  • Diamond Dome, Nautilus tube-loaded tweeter
  • Anti-resonance plug Flowport
Your favorite music: heard, but not seen

Your home is as individual as the music you love, and so are your particular requirements. Bowers & Wilkins’ range of Integrated Solutions speakers delivers their world-famous sound quality with a range of options to suit every type of home.

Bespoke installations to suit your home

Bowers & Wilkins understands you want superb sound but don’t want to rearrange your home to enjoy it. So, it has developed an extensive range of in-wall and in-ceiling speakers, delivering high-performance options to suit every space and every home.

Hear music exactly as the artist intended

Their Integrated Solutions speakers are built by the same people, to the same standards, and with the same objectives, as their regular loudspeaker ranges. There’s only one difference: these speakers are nowhere to be seen.

Description: 2-way in-ceiling loudspeaker
Technical features:

  • Aluminum Tweeter ‘wing’
  • Rotatable aluminum mini-baffle allows ‘toe-in’
  • Diamond Dome, Nautilus™  tube-loaded tweeter
  • Anti-resonance plug
  •  Flowport™

Drive units:

  • 1x ø25mm (1in) Diamond Dome
  • Nautilus™ tube-loaded tweeter
  • 1x ø180mm (7in) Continuum cone bass/ midrange driver with anti-resonance plug

Frequency range: (-6dB) 35Hz – 35kHz
Recommended Amplifier Power: 120W
Sensitivity: 88dB
Nominal Impedance: 8Ω
Frame (width/height) 351mm (13.8in) Cut-out (width/height) 331mm (13in) Protrusion 8mm (0.3in)
Net weight 5kg
