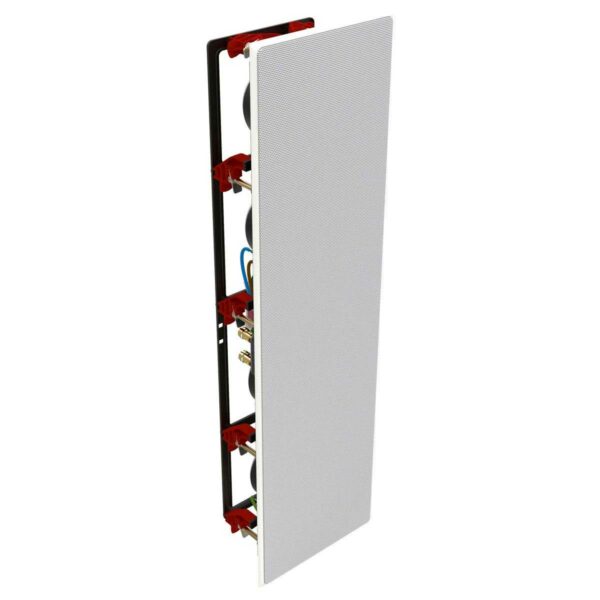

Bowers & Wilkins CWM7.4 S2 In-wall Speaker


or from $999.00 today & 5 weekly interest-free payments of $300.00 with Laybuy

The Bowers & Wilkins CWM7.4 S2 In-wall Speaker is designed for wall-mounted left, center and right speaker positions in a discreet home cinema system.

The speaker can also be mounted beside, above or below the screen, ensuring crystal-clear dialogue and dramatic special effects. Thanks to Bowers & Wilkins unique QuickDogs fixing method, installation is simple, requiring no tools.

Product is Available to Order. Pricing is for each.

Available On backorder

Bowers & Wilkins CWM7.4 S2 In-wall Speaker

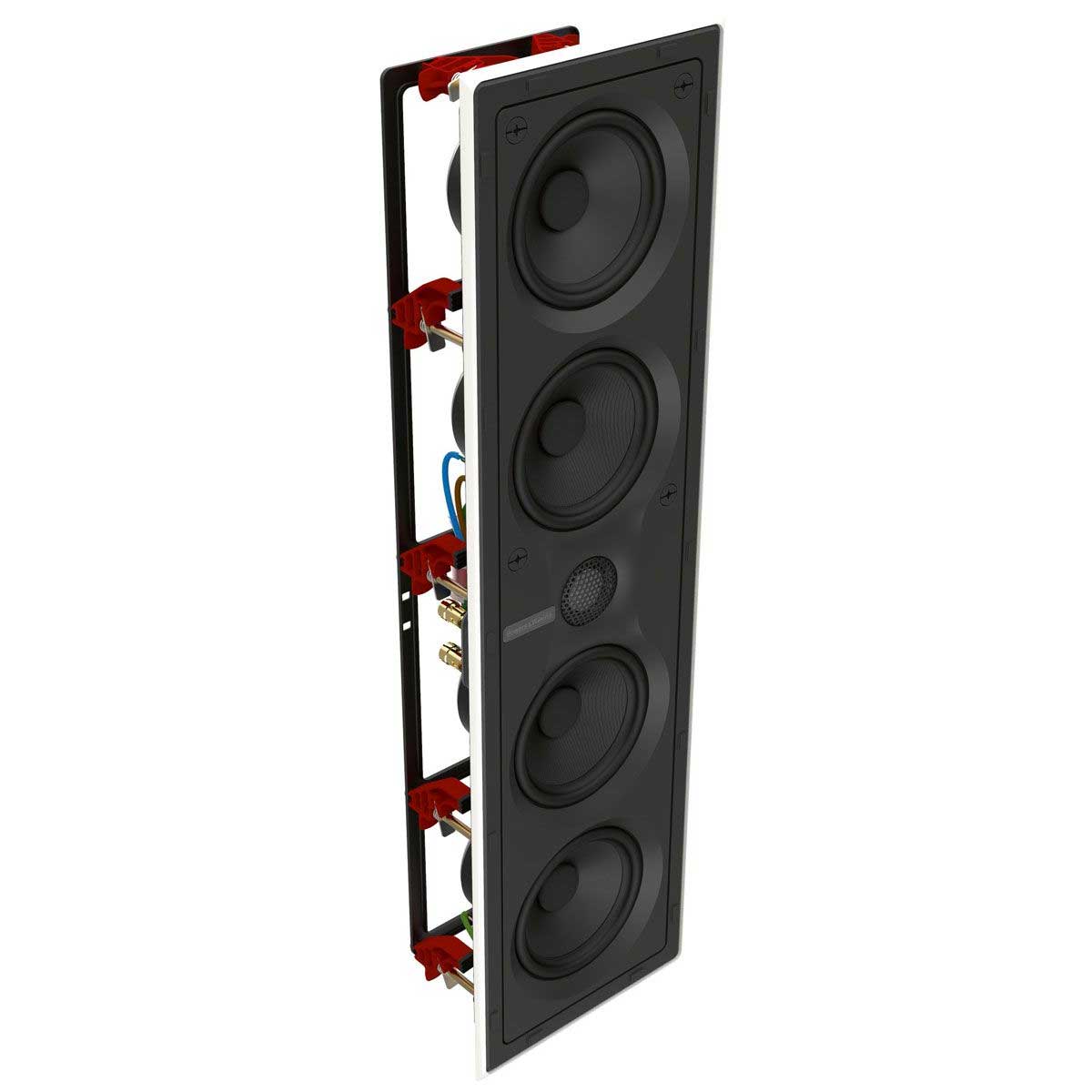

The Bowers & Wilkins CWM7.4 S2 In-wall Speaker’s 2.5-way configuration features a single Carbon Dome tweeter, twin 100mm (4in) Continuum cone midrange units and twin 100mm (4in) Aramid Fibre/paper bass cones.

  • 2.5-way in-wall system
  • 1″ Carbon Dome Tweeter
  • 2 x 4″ Continuum Cone Midrange
  • 2 x 4″ Aramid Fibre/Paper Bass
  • 25 – 150W
Your favorite music: heard, but not seen

Your home is as individual as the music you love, and so are your particular requirements. Bowers & Wilkins’ range of Integrated Solutions speakers delivers their world-famous sound quality with a range of options to suit every type of home.

Bespoke installations to suit your home

Bowers & Wilkins understands you want superb sound but don’t want to rearrange your home to enjoy it. So, it has developed an extensive range of in-wall and in-ceiling speakers, delivering high-performance options to suit every space and every home.

Hear music exactly as the artist intended

Their Integrated Solutions speakers are built by the same people, to the same standards, and with the same objectives, as their regular loudspeaker ranges. There’s only one difference: these speakers are nowhere to be seen.


Technical features- Carbon Dome tweeter Continuum midrange Aramid Fibre/Paper bass cones
Description – 2½-way in-wall system
Drive units –  1x ø25mm (1 in) Carbon Dome high-frequency2x ø100mm (4 in) Continuum cone mid/bass 2x ø100mm (4 in) Aramid Fibre/Paper profile bass

Frequency range –  (-6dB) -6dB at 43Hz – 33kHz
Frequency Response –  -3dB45Hz – 28kHz ±3dB
Sensitivity – 86dB spl (2.83Vrms, 1m)
Harmonic distortion – 2nd and 3rd harmonics (90dB, 1m)<1% 80Hz – 33kHz<0.5% 120Hz – 33kHz
Nominal impedance – 8Ω (minimum 4.9Ω)
Recommended amplifier power – 25W – 150W into 8Ω on unclipped programme

Frame height – 625mm (24.6in)
Frame width – 175mm (6.9in)
Depth (behind surface) – 92.5mm (3.64in)
Cut-out height – 597mm (23.5in)
Cut-out width – 147mm (23.5in)
Protrusion – 8mm (0.3in)
Net weight –  6.2kg (13.73 lb)

Finishes – Grille: White
