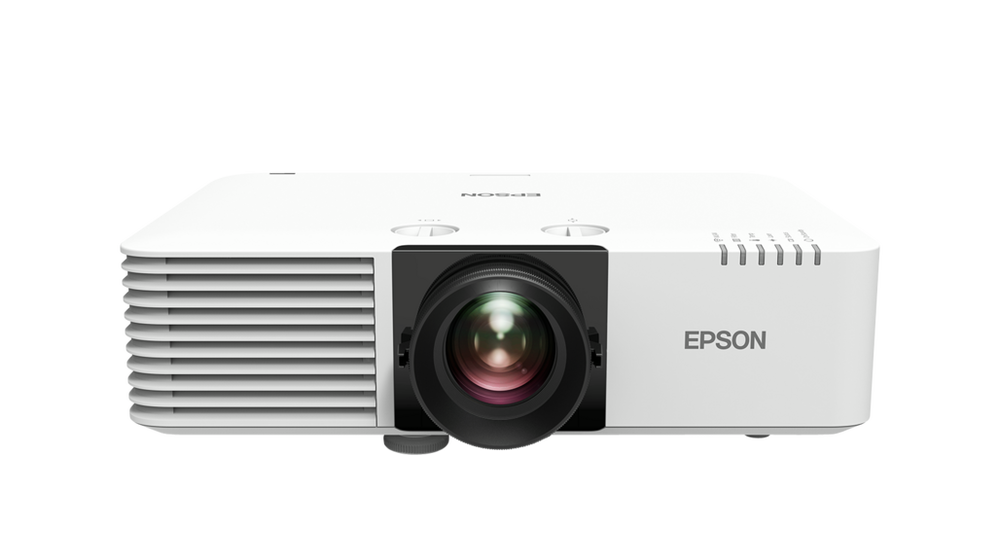

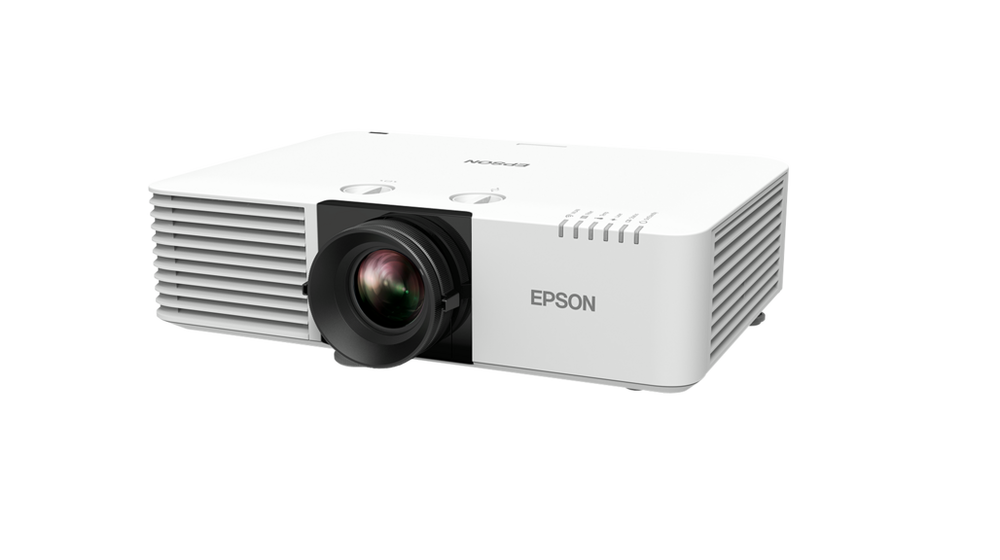

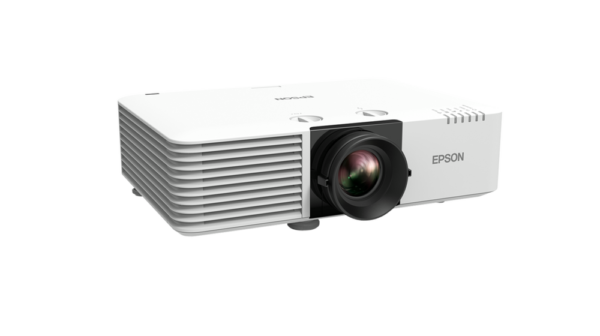

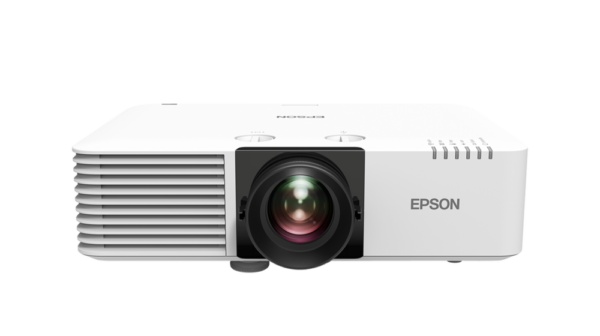

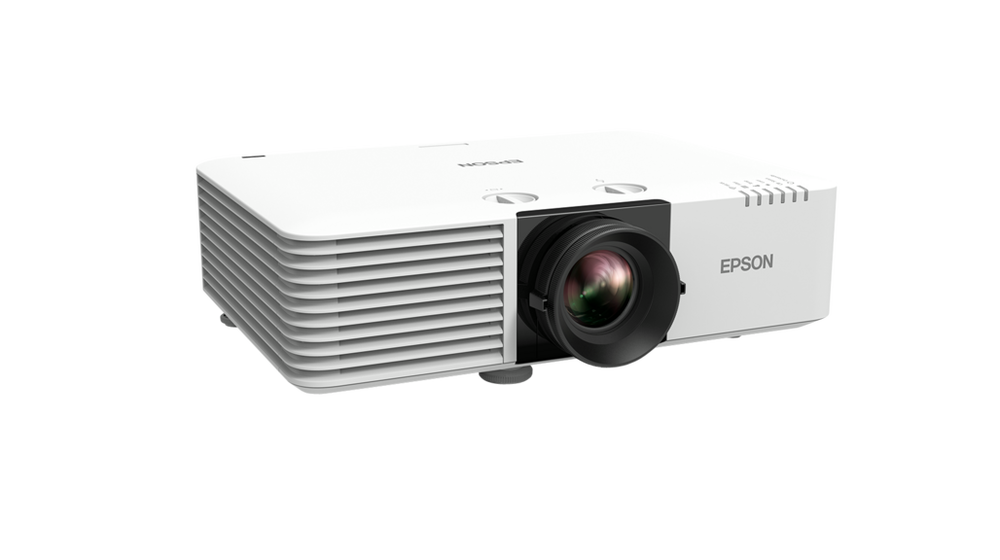

Epson EB-L570U Multimedia Projector

Original price was: $5,299.00.Current price is: $4,999.00.

or from $3,499.00 today & 5 weekly interest-free payments of $300.00 with Laybuy


4K Display Solution

5,200 lumens brightness fixed lens laser projector, an ideal use for education, businesses and visitor attractions environments.
Exceed your vision with Epson compact 3LCD technology laser projector, delivers sharp and smooth 4K images. The EB-L570U delivers effective, practical and creative display applications across a number of different industries.

In stock

Incredible picture quality

Providing higher quality content output, more engaging and impactful displays even in brightly-lit environments, the EB-L570U offers impressive 5,200-lumen brightness, 4KE resolution and lens shift at an affordable price. The EB-L570U is also a scalable display from 50 to 500-inches.

Superior connectivity

This displays solution offers many ways to connect. BYOD connectivity with optional wireless or wired and HDBaseT. Offers MTR auto power-on function by HDMI signal detection. The EB-L570U comes equipped with future-proofed connectivity options including HDMI, HDBaseT and built-in media player. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.

Effortless and flexible installation

360-degree installation without compromising the display quality and supports 21:9 and 16:6 ultra-widescreen, lens shift and HDMI output. For projector installs offers premium multi-projection features – options that you would normally expect to see in higher range or priced models. Edge blending combined optional ELPEC01 camera enables simple stacking/ tiling features.

Peace of mind and long-lasting durability

Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal).


  • NEW 4K enhancement – go beyond high definition with 4K enhancement and native WUXGA (1920 x 1200) resolution for presentations, videos, digital signage and more
  • Laser light source – experience astonishing quality and reliability
  • Up to 3x brighter colours, and reliable performance1 – 3LCD, 3-chip technology
  • Powerful brightness – up to 5,200 lumens colour brightness and 5,200 lumens white brightness
  • Extraordinary sharpness and detail – up to 2,500,000:1 dynamic contrast ratio
  • Virtually maintenance-free operation – featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours2
  • Bright and compact – the flat, simplified design makes the EB-L500 series an ideal fit for a range of environments, including modern offices and luxury interiors
  • NEW Flexible display options and sizes – deliver impactful sessions with displays up to 460 inches in 21:9 wide aspect ratio
  • NEW External camera support – ELPEC01 automatically calibrates images with the Epson Professional Tool software
  • Image enhancement features – experience crisp images with super resolution and detail enhancement technology
  • Content playback – save videos and photos to USB flash memory and project them instantly without the need for a PC
  • 360° installation – install on any plane, from horizontal to vertical and everything in-between
  • NEW Manual lens shift, zoom and focus– up to ±50 percent vertical and ±20 percent horizontal manual lens shift
  • HDBaseT– transmit full HD video and audio, Ethernet and serial communication through a single CAT 5/6 cable that can be extended up to 100 m
  • Wireless LAN Enterprise Security – connect projectors in a secure wireless network environment
  • 5 year projector warranty– a class leading 5-year warranty3
WHAT’S IN THE BOX EB-L570U projector, 3 m power cable, remote control, 2 x AA batteries, cable cover, User’s Guide
Projection system 3LCD
LCD panel 0.67-inch
Light source Laser diode
Resolution WUXGA
Colour light output 5,200 lumens
White light output 5,200 lumens
Native aspect ratio 16:10
Contrast ratio 2,500,000:1
LD input power 185 W
Keystone correction (Standard lens) Vertical: ±30°
Horizontal: ±30°
Lens shift (Standard lens) Vertical: ±50%
Horizontal: ±20%
Zoom 1 – 1.6 (Optical)
Screen size 50″ to 500″
Projection distance 80″ screen 2.33 m – 3.78 m
Throw ratio 1.35 (Zoom: Wide)
2.20 (Zoom: Tele)
Projection lens F number 1.5 – 1.7
Projection lens focal length 20 mm – 31.8 mm
Focus method Manual

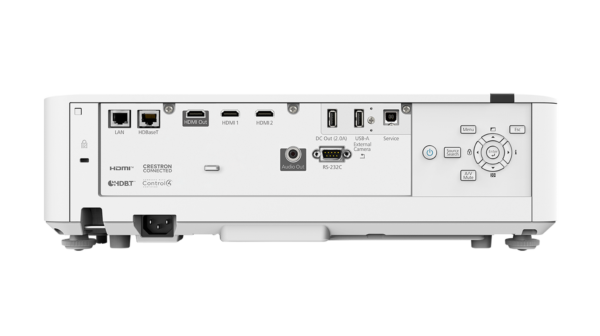

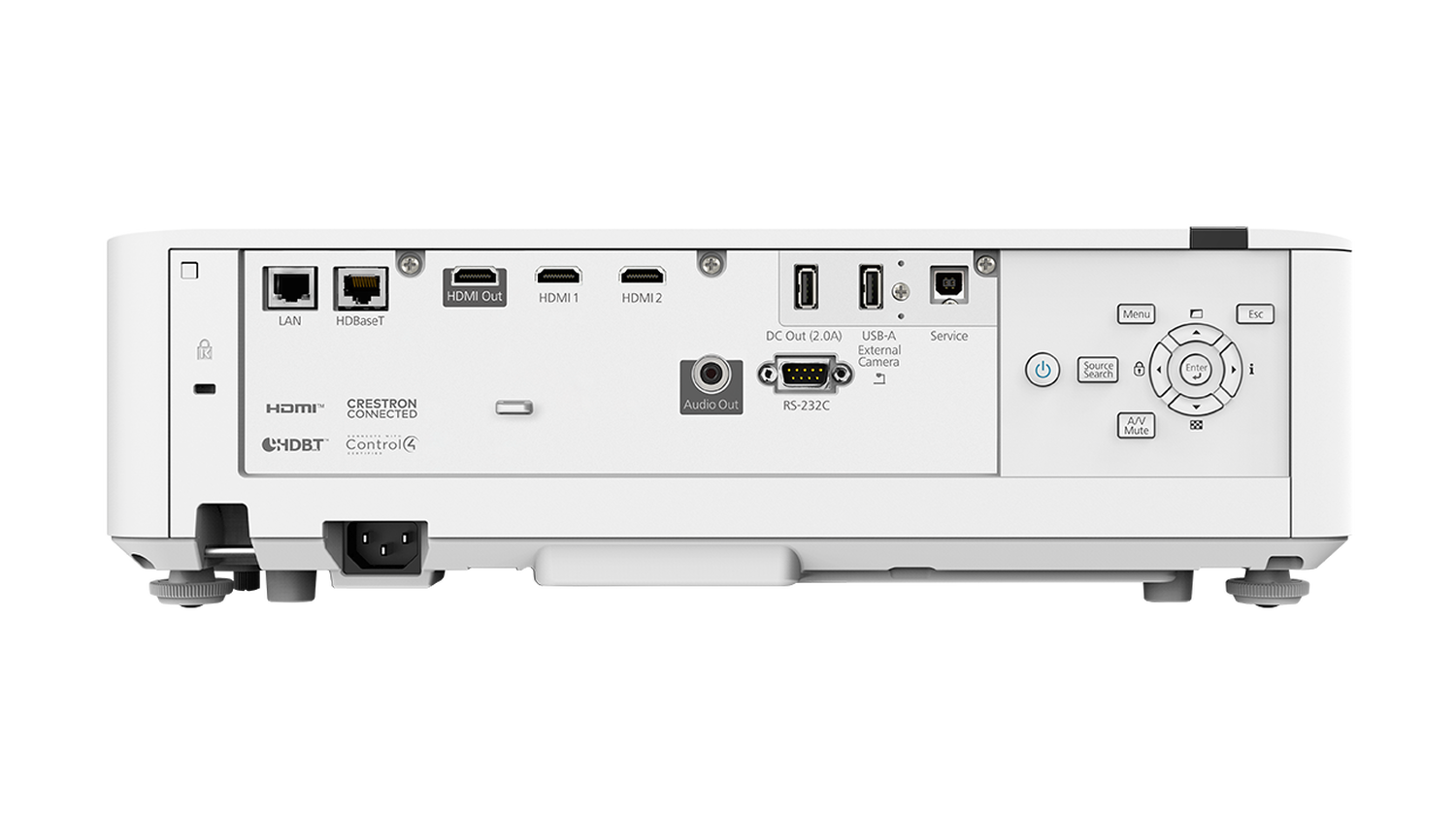

Input: Digital 2 x HDMI, 1 x HDBaseT
Control: I/O 1 x RS-232C
Network: I/O 1 x RJ45, 1 x USB A (for optional ELPAP11)
USB: I/O 2 x USB Type A (1 x USB Type A for PC Free, Firmware update, Wireless LAN, Doc Camera, Copy OSD Settings, Content playback, External Camera, 1 x USB Type A for 5V/2A Power Supply only)
1 x USB Type B (for Firmware update, Copy OSD Settings)
HDBaseT Yes
Wireless connectivity Optional (ELPAP11)
Output: Digital 1 x HDMI
Output: Audio 1 x Stereo mini
4k enhancement Yes
Built-in speaker 10 W
External camera support (ELPEC01) Yes
Epson Projector Management
(Network & Control)
Epson iProjection
(Multi-PC Projection)
Epson Professional Tool Yes
Epson Projector Content Manager Yes
Wireless LAN Enterprise Security Yes
Split screen Yes
Super resolution Yes
Detail enhancement Yes
Scene adaptive gamma Yes
360° projection Yes
Content playback Yes
Edge blending Yes
Curved surface correction Yes
Dimensions D x W x H (including feet) 339 x 440 x 136 mm
Weight 8.3 kg
Power consumption: LD On 312 W
Power consumption: Standby 2 W
Noise level (Normal/Eco) 31 / 23 dB
