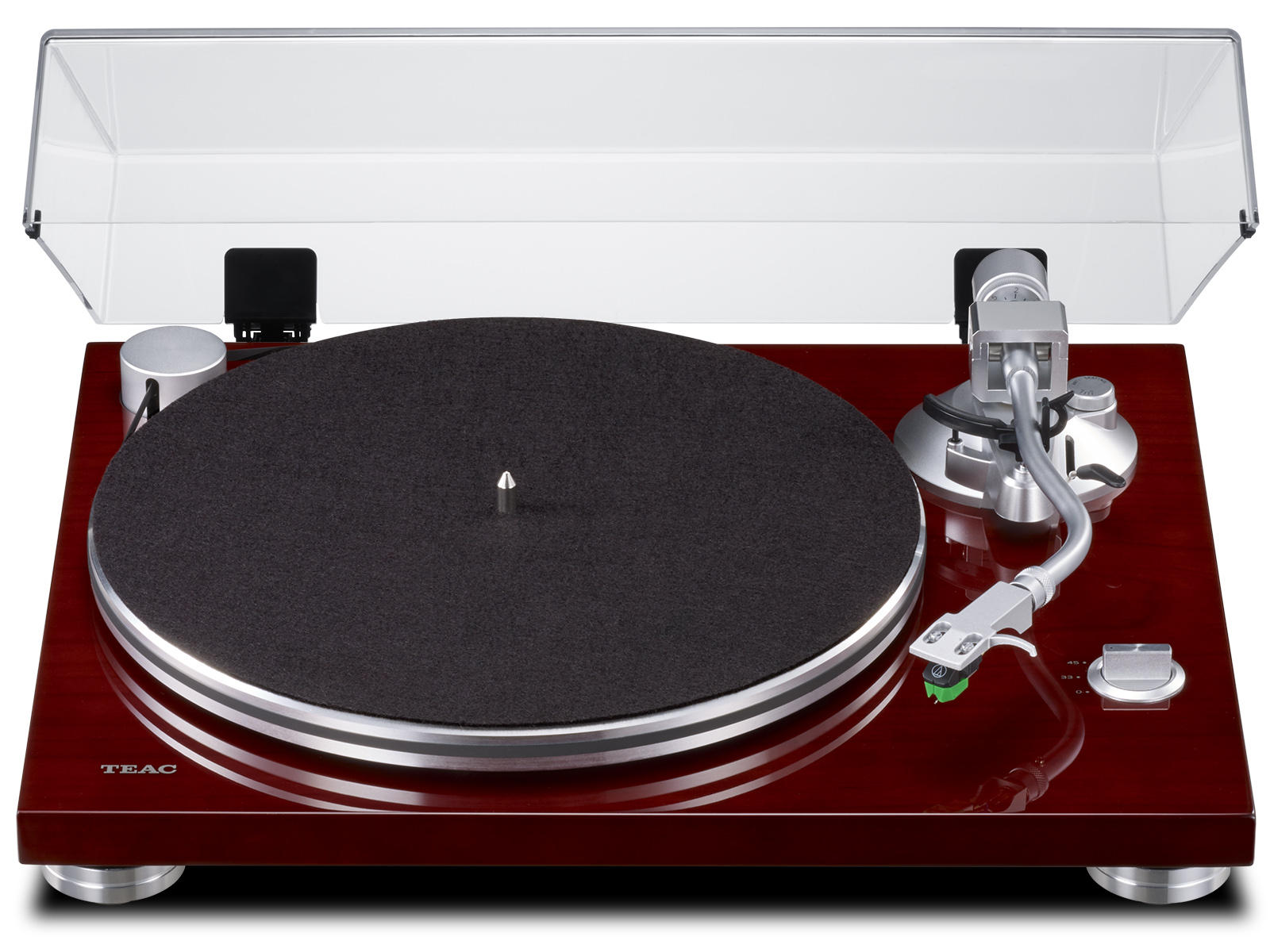

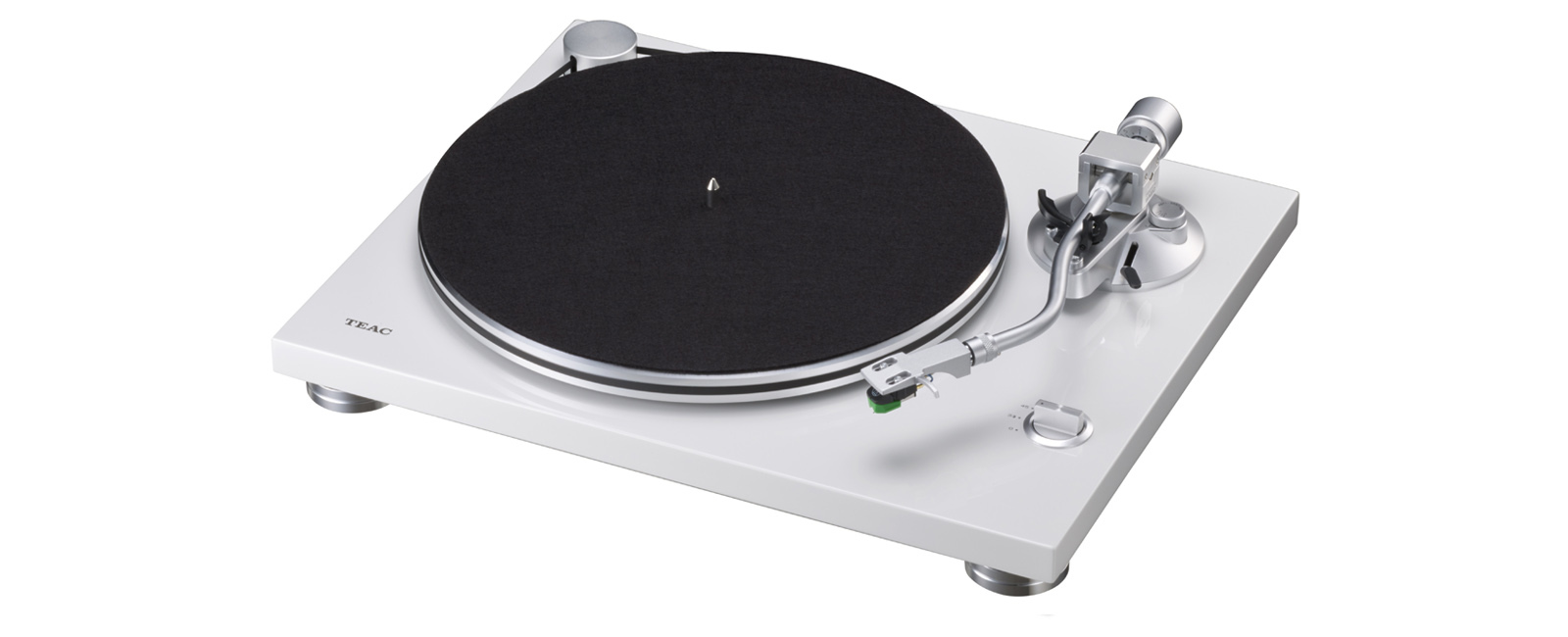

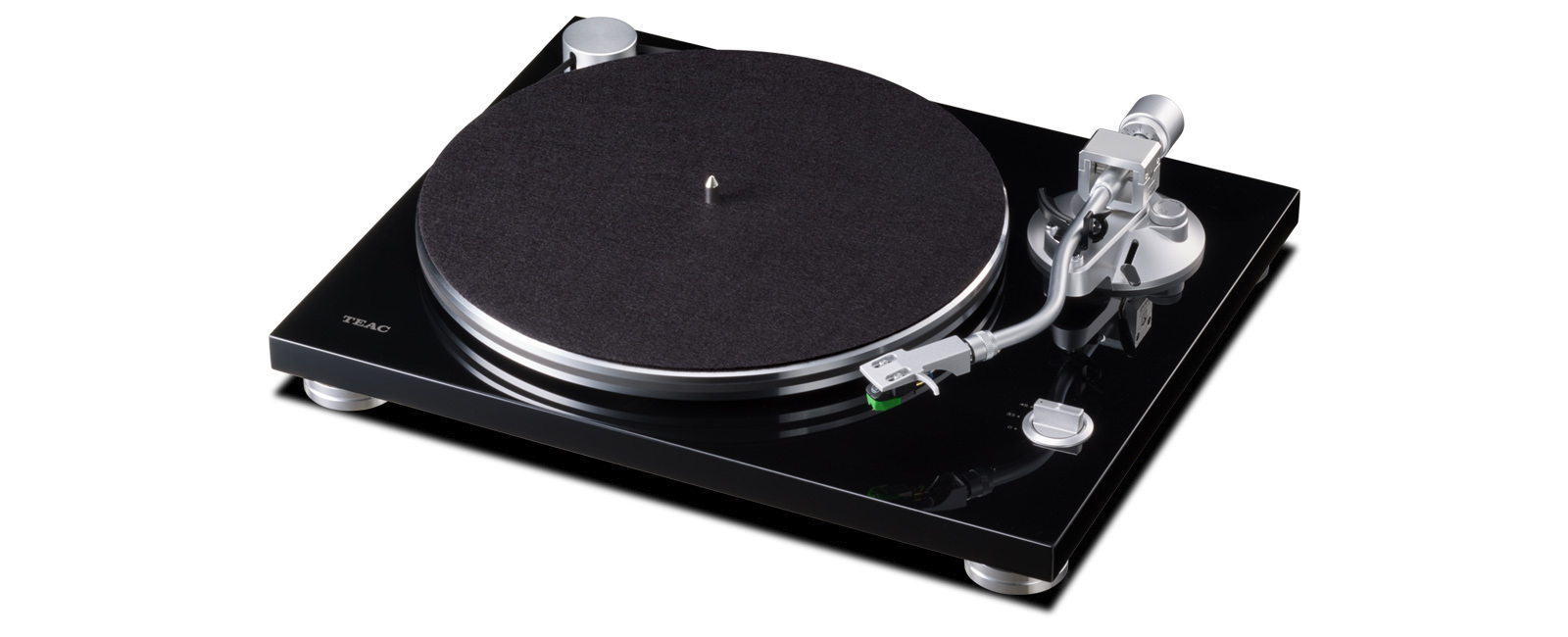

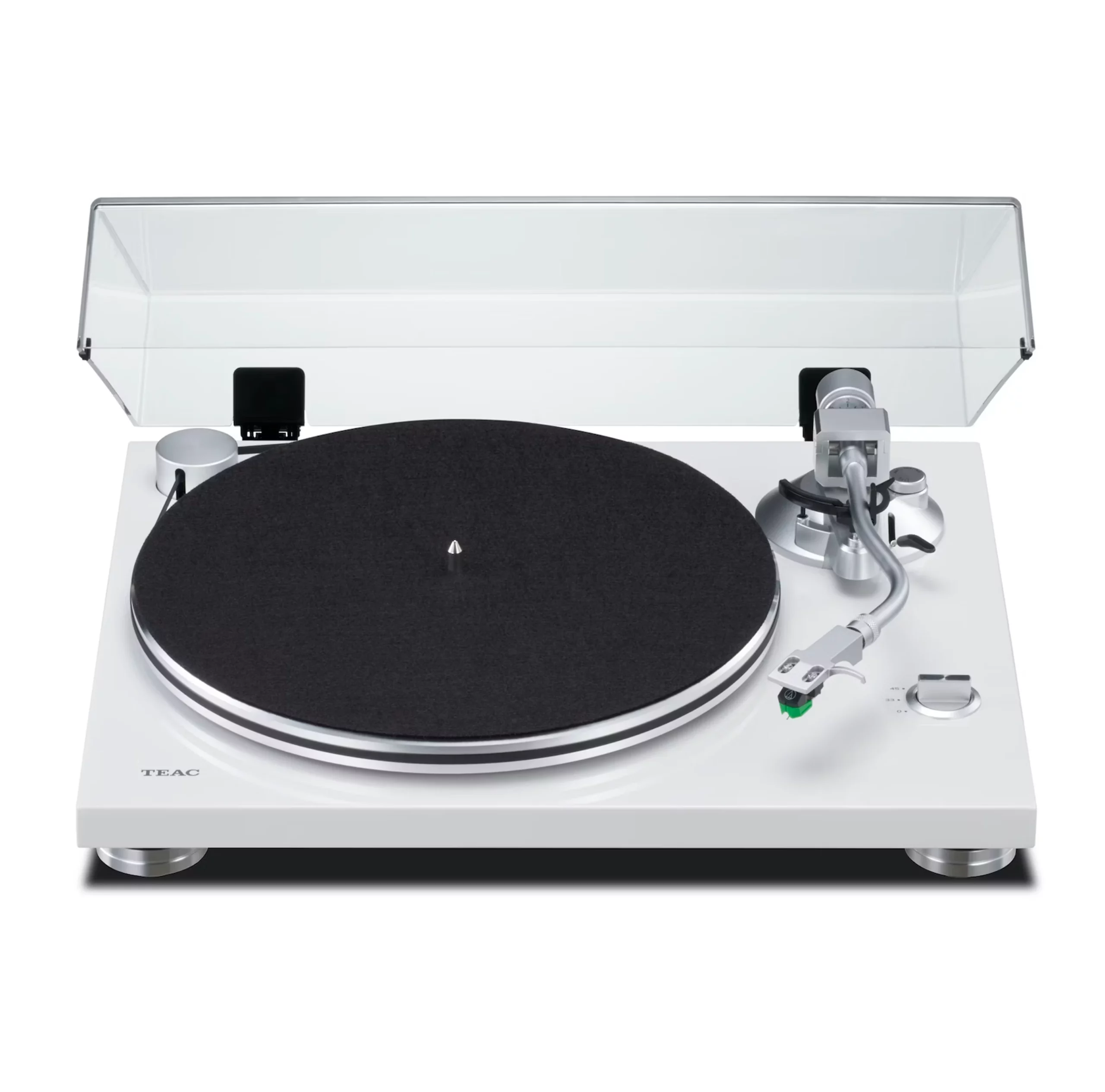

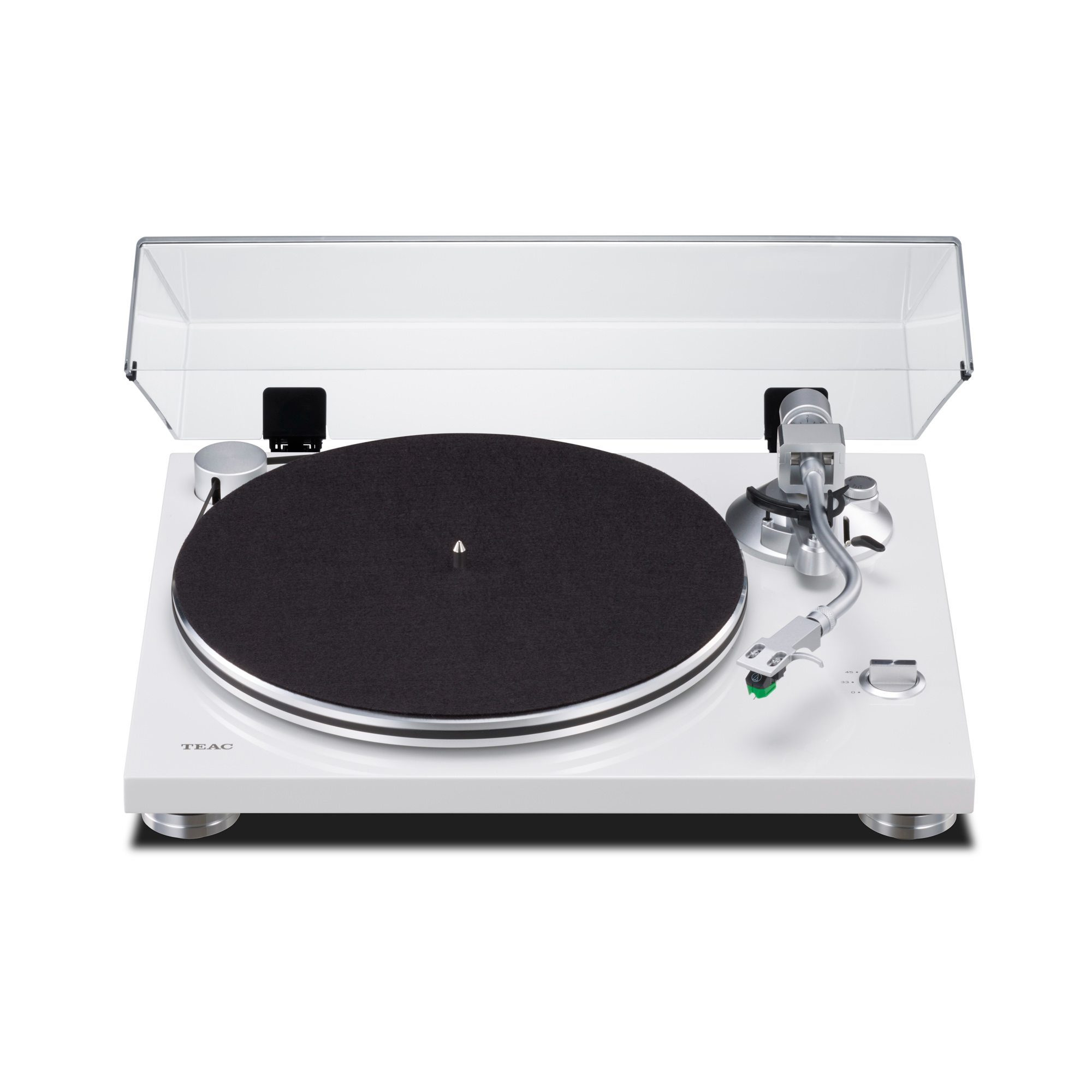

TEAC TN-3B-SE Belt Drive Analog Turntable

$699.00

or 6 weekly interest-free payments from $116.50 with Laybuy what's this?

LIMITED STOCK AT THIS PRICE!

The TN-3B-SE is a stylish, sleek-looking belt-driven turntable with a built-in MM-type PHONO EQ amplifier.

Hi there! How can we be of assistance?

The TEAC TN-3B-SE employs a new tonearm with knife-edge, pivot-point bearings, collaborated with SAEC, the high-end tonearm manufacturer, for superlative stability and resolution. The belt-drive mechanism, meanwhile, helps mitigate any unwanted cogging effects (ie fine pulsing) from the operation of the motor, to ensure a precise and smooth platter rotation. The TN-3B-SE also employs a VM-type cartridge the AT-VM95E manufactured by audio-technica and a high-precision NJM8080 op-amp in its in-built Phono EQ amplifier, allowing the user to enjoy the sound of their vinyl records with low distortion and in high quality.

The TN-3B-SE delivers a natural and well-balanced sound quality and is quick and easy to set up and start enjoying. We believe it sets a new standard that will satisfy the needs of both audiophiles and ardent record collectors.

  • Belt-drive mechanism
  • 2-speed turntable supporting 33-⅓ and 45 rpm
  • Knife-edge, pivot-point tonearm, designed by high-end tonearm manufacturer SAEC
  • Aluminum die-cast platter
  • Built-in PHONO EQ amplifier compatible with MM-type cartridges
  • Hi-fi grade op-amp, NJM8080, used in PHONO EQ stage
  • Anti-skating mechanism
  • PHONO/LINE analog output (switchable)
  • Gold-plated oxidation-resistant output connectors
  • Pre-installed AT-VM95E cartridge supplied by audio-technica
  • Rigid, high-density MDF plinth with multi-layered lacquer finish
  • Shock-absorbing insulating feet
  • GND terminal
  • RoHS compliant

*This product does not have a USB digital output.

Turntable section
Type Belt-drive (External drive)
Motor DC Motor
Rotation Speeds 33-⅓ rpm, 45 rpm
Wow-and-Flutters 0.1% or less
S/N Ratio 67dB (A-weighted, 20kHz LPF)
Turntable (Platter)
Material Aluminum Die-cast
Diameter 30cm
Tone-arm section
Type S-shape, Static-balanced
Effective Length 223mm
Needle Pressure Range 0g to 5.0g
Compatible Cartridge Weight 3.0g to 12.0g
14g to 23g (including Head-shell)
Cartridge section
Type MM-type
Output Voltage 4.0mV (1kHz, 5cm/sec.)
Needle Pressure 1.8 to 2.2g (2.0g recommended)
Weight 6.1g
Head-shell weight 11g (including screws, nuts, and wires)
Compatible Stylus AT-VMN95E * Average stylus life: approx. 300 hours.
Analog Outputs
Connector RCA Pin jack × 1 pair (Gold-plated)
Output Voltage
PHONO 4.0mV (1kHz)
LINE 224mV (–13dBV)
Operating Power AC 100 to 240V, 50/60Hz
Power Consumption 1.5W
Standby Power 0.5W
Overall Dimensions (W×H×D) 420 × 117 × 356 mm /
16.5″ × 4.6″ × 14.0″ (including protrusions)
Weight approx. 5.0kg / 11.0 lbs.
Included Accessories Felt Mat, EP Adapter, Counter Weight, Head-shell (AT-VM95E installed), Platter, Dust Cover, Hinges × 2, RCA Audio cable with GND terminal, AC Adapter (GPE053A-V120050), Owner’s Manual (including Warranty Card)
