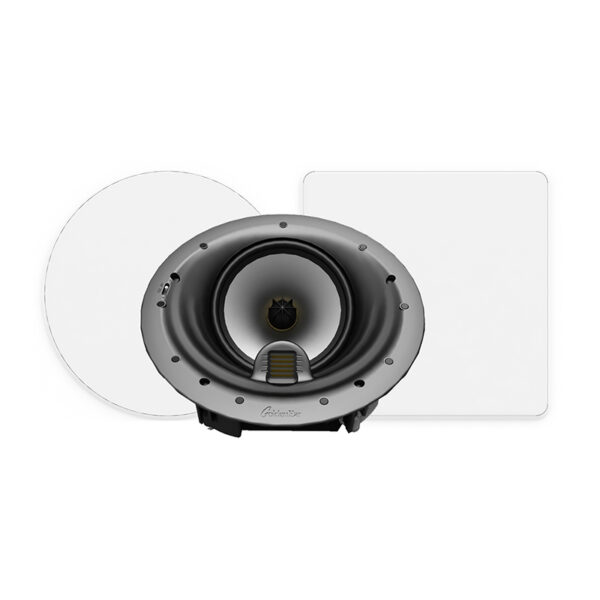

The Invisa Home Theater Reference 7000 is designed for use as a ceiling-mounted main front stage left, right, or center speaker in high-quality home theater or music systems,as well as for use as a side or rear surround speaker. It has a flat, round, magnetically attached micro-perf grille that covers the mounting flange for an attractive, nearly invisible look. The drivers are mounted at precisely calculated angles so that they face the normal listening position for exceptional imaging, superior frequency response, remarkable clarity and precise focus.
PRICE each
Design
The driver complement combines the same superb 7″ high-definition cast-basket driver used in the acclaimed Aon 3, with one of GoldenEar’s signature technology High Velocity Folded Ribbon tweeters. A complex crossover network, with a high-frequency equalization switch, assures perfect blending. In order to achieve open, boxless, three-dimensional imaging that appears to come from across the front wall rather than the ceiling, great care has been taken to minimize deleterious diffraction effects as well as to optimize wave-launch into the room. This is achieved by utilizing and combining our FocusField™ Technology with a unique Non-Periodic Waveform (NPW) Diffraction Control and Wave-Launch construction.
Speaker Dimensions (H X W X D) 10˝ diameter x 5˝ depth
Grille Dimensions 10-9/16˝ x 10-9/16˝
Round Grille Dimensions 10-9/16˝ diameter
Cutout 9˝ diameter
Weight 4.5 lbs (product) / 6.5 lbs (shipping)
Frequency Response 25 Hz – 35 kHz
Efficiency 90 dB
Nom. impedance Compatible with 8 ohms
Driver Complement One – 7˝ High-Definition Cast-Basket MVPP™ Mid/Bass DriverOne – HVFR™ High-Velocity Folded Ribbon Tweeter
Recommended Amplification 10 – 250 watt/channel
