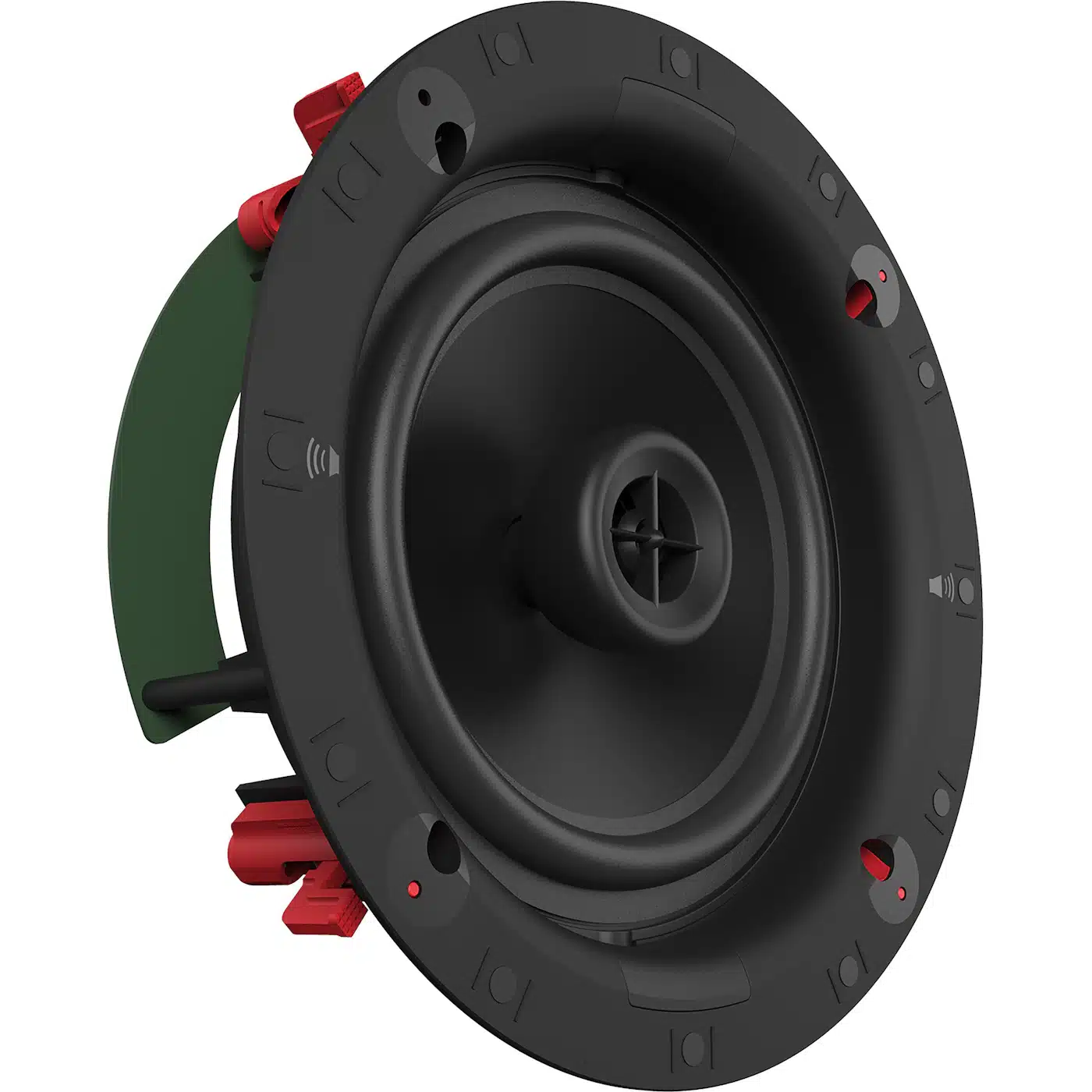

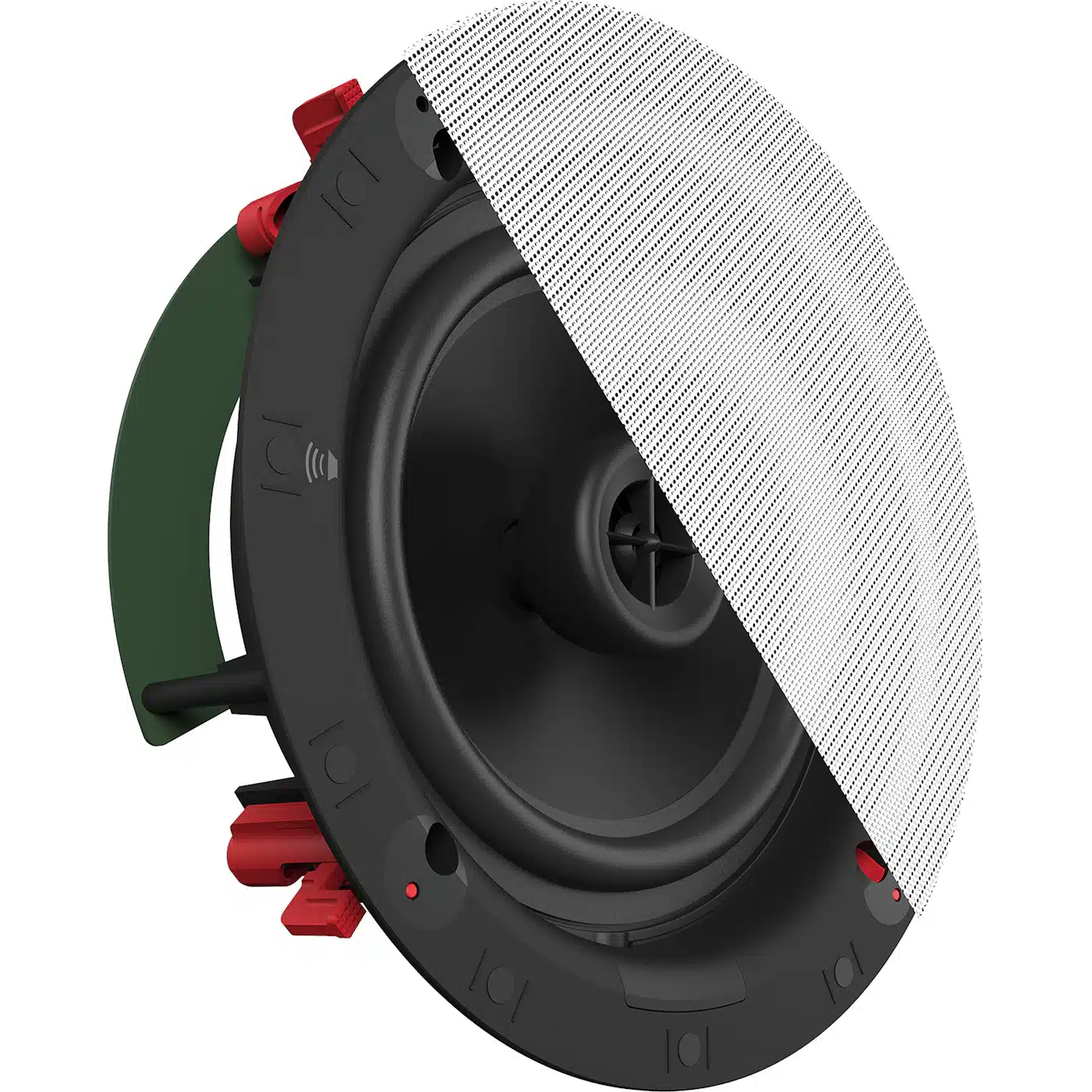

Klipsch DS-180CDT

$499.00

Get the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-180CDT features an 8” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.

Klipsch DS-180CDT
Klipsch DS-180CDT
$499.00

Contact Us
First
Last

Horn-loaded performance:
Using the same Tractrix® horn technology and design principles of our premium architectural and box speaker lines, the all-new Klipsch Designer series provides true Klipsch power and performance. With an 8” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn, the DS-180CDT brings dynamic, powerful, detailed Klipsch sound to your distributed audio, home theatre, or 2-channel system.

Exclusive patented Sky Hook® Cinch installation system:
This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. If dealing with an uneven space, a 1/4 turn of each dog-leg screw achieves an even more flush finish. This fast, easy installation system reduces installation time by up to 75%.

Controlled Dispersion Technology™:
CDT technology allows for the tweeter and the woofer to be aimed up to 15°, helping to ensure on-axis frequency response at almost any listening position.

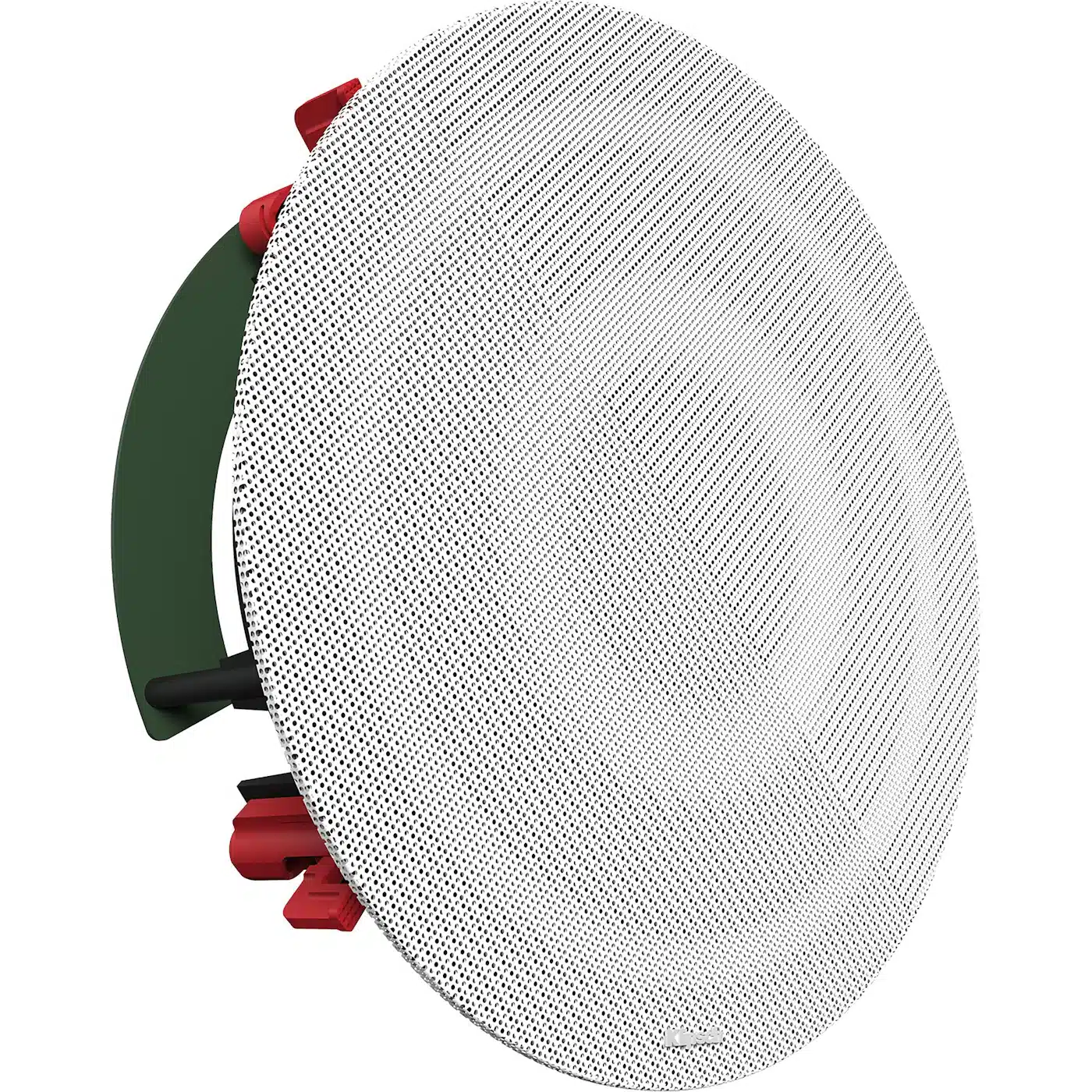

All-new, bezel-free magnetic grille:
A completely redesigned powder-coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

Specification Details
Frequency Range 73Hz – 20kHz ±3dB
High Frequency Driver 1″ (2.54 cm) Silk Dome Tweeter with round Tractrix® Horn
Low Frequency Driver 8″ (20.32 cm) Polypropylene Woofer
Sensitivity 94 dB @ 2.83V / 1m
Coverage Angle 100°
Power Handling 50W RMS / 200W RMS
Impedance 8 Ohm Compatible
Enclosure Type ABS / Infinite Baffle
Finish Black Baffle/Frame, White Paintable Grille
Product Dimensions 10.75″ W × 10.75″ H × 4.5″ D (27.3 × 27.3 × 11.5 cm)
Mounting Depth 4.45″ (11.3 cm)
Cutout Dimensions 9.8″ (24.9 cm)
Product Weight 7.4 lbs (3.36 kg)
Included Flat Paintable Magnetic Grille
