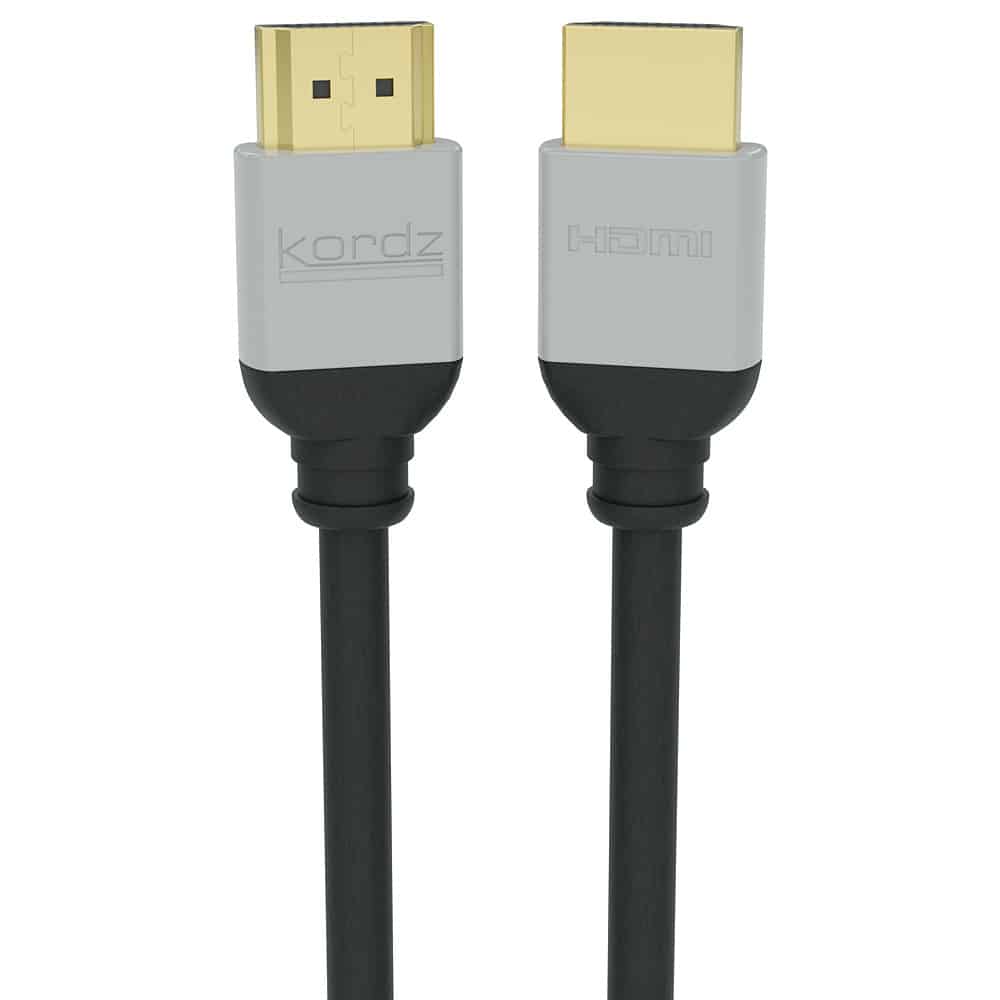

Kordz PRO3 Passive HDMI® Cable

Price range: $39.00 through $59.00

Kordz PRO3 Passive 18Gbps HDMI Cables are expertly designed for professional AV integrators, providing a hassle-free and electronics-free installation experience with compact, gold-plated 1kg retention HDMI connectors and a highly flexible fire-rated cable. Supporting 18Gbps 4K60 HDR up to 9m, they’re backed by the Kordz promise of ‘Connectivity Assured’.

Kordz PRO3 Passive HDMI® Cable
Kordz PRO3 Passive HDMI® Cable
$39.00 – $59.00Price range: $39.00 through $59.00

Contact Us
First
Last
  • Certified High Speed with Ethernet HDMI Cable.
  • All lengths support resolutions requiring 18Gbps transfer rates, including 4K60 HDR or 8K/30 4:2:0.
  • Lightweight ABS connector assembly with gold-plated HDMI connector rated for 1kg retention force.
  • Every cable individually production tested.
  • Highly flexible, UL CMG fire-rated jacket perfect for almost every installation.

Data Rate: Up to 18.2Gbps (TMDS mode)
Video Resolution: Up to 8K (7680 x 4320) / 10K (10240 x 4320)
Video Refresh Rate: Up to 240 frames per second
Colour Depth: Up to 16 bits
Colour Formats: RGB 4:4:4 / Y’CBCR 4:2:2 / Y’CBCR 4:2:0
Content Protection: Up to HDCP 2.2 supported
Audio Sample Rate / Channel: Up to 192KHz
Audio Sample Size: Up to 24 bits
Audio Channels: Up to 32 channels
Audio Formats Supported: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
Auxiliary HDMI Features Supported: Consumer Electronic Control (CEC), Auto Lip-Sync Correction, Ethernet channel, Audio Return Channel (ARC), Enhanced Audio Return Channel (eARC), High Dynamic Range (HDR)

HDMI CERTIFICATION – 0.5m – 9.0m Lengths

HDMI CTS (Certified Test Specification): High Speed with Ethernet
Certified Data Rate: 6.0Gbpsc, 17.82Gbps agg
Supported Data Rate: ≥ 6.0Gbpsc, 17.82Gbps agg (4K UHD)
HDMI Clock: 27-340MHz

MECHANICAL

Cable Diameter: 30AWG 5.7mm/0.22ӯ| 28AWG 6.5mm/0.26ӯ| 24AWG 9.0mm/0.35ӯ
Mounting Length: 30AWG 59.0mm/23.0” | 28AWG 66mm/2.6” | 24AWG 112.5mm | 4.3”
Cable Bend Radius: 30AWG 25.0mm/1.0” | 28AWG 32.0mm/1.3” | 24AWG 72mm | 2.8”
Retention Force (nominal): 9.9N (1kg / 2.2lbs) +10/-5%

CONSTRUCTION

Primary Conductors: Solid 30-24AWG OFC, length dependent
Insulation on TMDS: HDPE, Foamed-PE, length dependent
Insulation on 4C + HEAC Pairs: HDPE
Shielding on TMDS Pairs: Al / Mylar, 125% coverage
Shielding Overall: AL/Mylar, 100% coverage + Al-Mg alloy braid, min 85% coverage
Cable Jacket: UL CMG fire-rated PVC composite materials
HDMI Connector Shell: Premium gauge folded steel, 1μ” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
Termination: High Frequency Soldering
Connector Assembly: ABS connector shell with PVC injection moulded boot and strain relief
