Dolby Atmos Height Virtualizer or DTS Virtual: X® place sound overhead or behind if you don’t want height or surround speakers and both Dolby Surround® and DTS Neural: X® are on-board. Rear surrounds, bi-amped front speakers or Powered Zone B audio are also an option. AccuEQ with subwoofer EQ and AccuReflexTM for 5.2.2-ch Dolby Atmos-enabled systems clarify sound in any space.

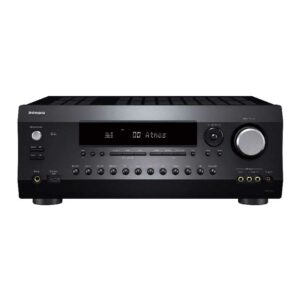

Integra DRX 3.4 9.2-Channel Network A/V Receiver
Onkyo TX-NR6100 7.2-Channel 8K AV Receiver
Onkyo TX-SR494
$699.00
or 6 weekly interest-free payments from $116.50 with
what's this?
From easy Bluetooth® wireless streaming to the heart-pounding thrills of Dolby Atmos® and DTS: X® soundtracks, the TX-SR494 A/V receiver delivers outstanding sound. Seven channels of high-current power give you the freedom to choose a speaker layout that suits you. As the heart of your home theater, the TX-SR494 A/V receiver is outfitted with HDMI® terminals supporting HDR and 4K/60p video, while the GUI with OSD over HDMI, Zone B pre-/line-out, and Vocal Enhancer function make this receiver easy to integrate.
Dolby Atmos® and DTS:X® sound is here
The TX-SR494 supercharges your Dolby Atmos® and DTS:X® experience. Object-based audio is mixed in 3D space and lets any sound play through any speaker, tracking the action, localizing effects, and moving around you. Dolby Surround® and DTS® Neural:X complement native 3D audio playback. These technologies find localization cues in legacy stereo or multichannel soundtracks and up mix these elements to create immersive top-to-bottom dimensionality.
Dolby Atmos Height Virtualizer
When playing any Dolby® format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
Spatial sound elevated with DTS Virtual:X™
DTS Virtual:X is a new surround-sound virtualization technology that creates an immersive 3D sound field from any speaker layout, such as 2.1, 3.1, 5.1, and 7.1 configurations without height, surround, or rear surround speakers deployed. It uses sophisticated DSP-based algorithms to place the audience at the center of a multidimensional sound field with height and surround spatiality, and is equally effective in large or small spaces. DTS Virtual:X works in the 3D domain with DTS:X soundtracks, DTS formats, and non-encoded stereo.
Ready for 4K HDR entertainment
Enjoy comprehensive support for 4K/60p and HDR (High Dynamic Range) video formats including HDR10, HLG, Dolby Vision®, and BT.2020. The 4:4:4 color-space is also supported. All four HDMI® inputs and ARC-ready output pass video from player to your compatible TV, unlocking everything the latest films and games have to offer. You can easily confirm A/V input-output status via a new OSD window.
More power, more realism, more magic
It’s tempting to see watts as the most important figure on an amp’s spec sheet. However, watts are an indication of loudness, not sound quality. Amperes—electrical current—tell the real story. The more current an amplifier develops, the better it controls the speakers. Better control equals fast transient response, wide dynamic range, and clear, accurate sound. The high-output transformer, large capacitors, and discrete amps inside the TX-SR494 produce the most current in its class. And that’s one big reason why it sounds as good as it does.
AccuEQ Room Acoustic Calibration with AccuReflex™
AccuEQ Room Acoustic Calibration creates a harmonious soundfield in your room. It detects speaker presence, size, and distance from a measurement position, and sets appropriate sound-pressure levels. It then selects the ideal subwoofer crossover and applies equalization to all speakers. AccuReflex technology optimizes reproduction of object-based audio through Dolby Atmos-enabled speakers. It resolves phase-shift arising from path differences between directional and non-directional sounds. Along with improved localization, a 3D field with vertical movement and overhead dimensionality is produced.
Hear dialog clearly at the touch of a button
Finally, a fast and effective solution to inaudible dialog in TV programs and movies. The TX-SR494 features DSP-controlled Vocal Enhancer that identifies vocal frequencies and allows you to raise or lower them to taste using keys on the remote or via the tone controls on the receiver’s front panel.
Share the atmosphere or relax in privacy
A fantastic addition to the TX-SR494 is a Zone B pre-/line-out. It connects a component with an analog RCA line input to audio sources available to the receiver, including HDMI and digital audio. Share sound to a hi-fi in a nearby space, or connect a supported charging transmitter dock for wireless headphones and enjoy your entertainment without disturbing anybody.
Powered Zone B Audio or front-channel bi-amping
The Height/Surround Back/Bi-Amp/Zone B speaker outputs can drive stereo speakers in another room with a 5.2-ch setup in the main room. The outputs can share any AVR source exclusively in Zone B, or play the same source in Main and Zone B. Alternatively, you can bi-amp your pair of compatible front speakers.
Smooth and easy Bluetooth® streaming
Whatever audio is playing on your phone, tablet, or PC app can be streamed to the TX-SR494 with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.
USB power for streaming dongles
A USB port on the rear panel powers any media streaming stick plugged into an adjacent HDMI input—great if you don’t have enough power-points.
Decompress with Advanced Music Optimizer™
When an audio file is squeezed into a small container (such as MP3), high-frequency data is lost. This can affect sound quality. Onkyo’s Advanced Music Optimizer DSP listening mode reconstructs the missing bit data. Playback quality is greatly improved, while you enjoy the same convenient file sizes. This mode also optimizes Bluetooth streaming playback quality.
Simple steps to sweet sound
The TX-SR494 simplifies your room’s entertainment setup. Components plug into labelled ports while your TV connects via one easy-to-conceal HDMI cable. Hook up your speakers as shown by a friendly diagram next to the numbered speaker terminals. Setup takes moments, enjoyment is limitless.
PRODUCT HIGHLIGHTS
160 watts per channel
Supports 4K/60p and HDR (HDR10, HLG, Dolby Vision®, BT.2020)
5.2.2-ch Dolby Atmos® and DTS:X® playback
Dolby Atmos Height Virtualizer* and DTS Virtual:X™
AccuEQ with subwoofer EQ and AccuReflex™
Discrete high-current amp system with 4-ohm drive capability
Bluetooth® technology and Advanced Music Optimizer™
Vocal Enhancer function improves voice audibility
Zone B pre-/line-out shares any audio source to components with an RCA input, such as wireless headphone docks, etc.
OSD window shows media format data for quick confirmation
* Enabled with a future firmware update.
AMPLIFIER FEATURES
High-Output Low-Noise Power Transformer
High-current 7-channel analog amplification system
Discrete high-power output transistors
Original low-impedance amp-circuit topology
VIDEO & AUDIO SUPPORT
Supports HDCP 2.2, 4K/60p, HDR (Dolby Vision, HDR10, HLG, BT.2020), 4:4:4 color-space, BT.2020, 3D Video, ARC (Audio Return Channel), Deep Color™, x.v.Color™, and Lip Sync via HDMI
Dolby Atmos, DTS:X, Dolby® TrueHD, and DTS-HD Master Audio™ decoding
Supports SACD (Super Audio CD) Playback via HDMI (2.8 MHz/2ch, multi-channel)
Dolby Atmos Height Virtualizer and DTS Virtual:X 3D sound processing
Dolby Surround® and DTS® Neural:X upmixing technologies
Premium 384 kHz/32-bit AKM multichannel DAC
Direct Mode for source-authentic stereo sound
CONNECTION FEATURES
4 HDMI inputs and 1 output with ARC (Audio Return Channel)
2 digital audio inputs (1 optical and 1 coaxial, assignable)
3 analog audio inputs (assignable)
Zone B pre-/line-out
2 subwoofer pre-outs
Speaker terminals (screw-type x 2 [Front L/R], lever-type x 5)
Rear USB power supply terminal (5 V/1 A) for media streaming devices
6.35 mm headphone output (front)
3.5 mm AccuEQ setup mic input (front)
ADVANCED FEATURES
AccuEQ Room Acoustic Calibration, Subwoofer EQ, and AccuReflex
Zone B pre-/line-out shares any audio source to components with an RCA input, such as mini hi-fi systems, integrated amps, wireless headphone docks, etc.
Height/Surround Back/Powered Zone B/Speaker Bi-Amp terminals
DSP-controlled Vocal Enhancer function boosts dialog audibility via remote keys or front-panel controls
Bluetooth wireless technology supports high-quality audio streaming from phones, tablets, and PCs
Advanced Music Optimizer improves playback quality of compressed audio
GUI with OSD via HDMI features media input/output information window for easy confirmation of playback settings
1080p Full HD to 4K Ultra HD upscaling over HDMI
Quick Connection Guide on rear panel for stress-free setup
A/V sync control (up to 500 ms in 5 ms steps at 48 kHz)
Direct Power On function switches on receiver when an input key is pressed on the remote control or front panel
HDMI passthrough function on standby
Tone controls for Front L/R channels (bass/treble)
3-Mode front-panel display dimmer (Normal/Dim/Dimmer)
AM/FM tuner with 40 random presets
Sleep timer
Simple remote control
GENERAL SPECIFICATIONS
Power Output: 160 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven), 135 W/Ch (6 ohms, 1 kHz, 1% THD, 1 channel driven, IEC)
Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Dimensions (W x H x D): 435 x 160 x 328 mm
Weight: 8.2 kg
