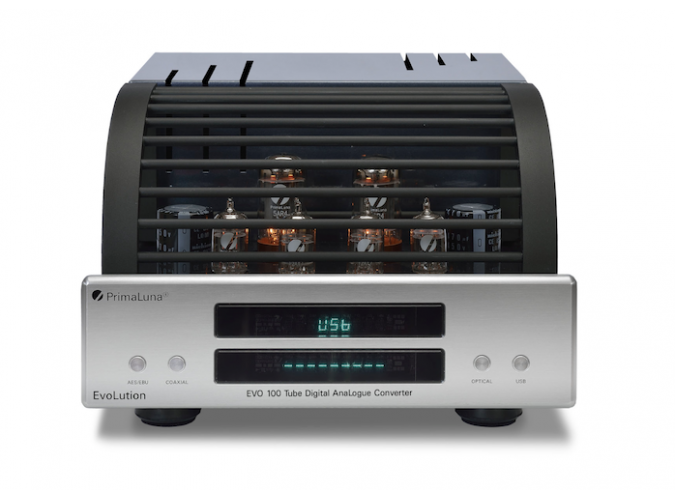

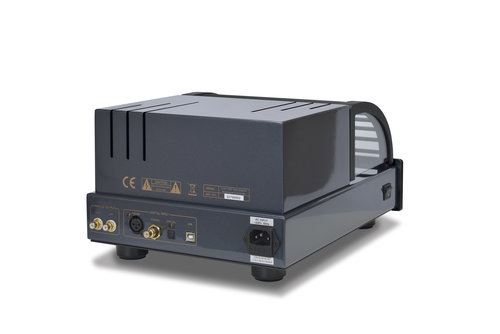

PrimaLuna Evo 100 Tube DAC

AC Offset Killer – A PrimaLuna Exclusive

AC Offset Killer is about goose bumps. The ones you get when music comes out of a background so quiet, you may say to yourself “Just how is this possible?” PrimaLuna custom-winds our own massive toroidal power transformers that are low in hum and EMI. But we wanted more. Our engineers designed the AC Offset Killer to lower transformer noise to a place no other manufacturer dreams of going, regardless of how bad your electricity is. The result? Sense of space. Texture. The resonance of an acoustic guitar or violin string that seems to trail on forever. The AC Offset Killer will amaze you.

,Premium Parts

Premium parts including polypropylene coupling caps, triple pi power supply filters, custom designed isolation transformers which separate the analog and digital devices, resulting in decreased signal degradation and improved sonics from top to bottom. Many DACs weigh in at ten pounds or less. The EVO 100 Tube DAC weighs nearly 29 pounds!

,Point To Point Wiring

You spend a lot of money on interconnects. So why have the signal go right from the RCA jacks or speaker terminals into circuit boards with copper traces so thin you can hardly see them? What’s high-end about that?

PrimaLuna employs Point to Point Wiring on all products. The entire signal path, including resistors and capacitors, is painstakingly hand wired with heavy-gauge cable by craftsman.

,Dual Mono Topology

Per channel dedicated tubes. While it is fine to use a single tube as a buffer for both channels and claim your DAC is “tube”, it can’t be compared to the PrimaLuna design and what it does for the music.

,USB Digital Input

USB digital input allows using your computer for storage and playback of your music with all the benefits of features like playlists and easier access to your whole music library. Rather than just add in an USB input as an afterthought, PrimaLuna engineers searched endlessly looking for the best-sounding USB interface we could find. Our USB input converts the jitter-filled USB digital signal to S/PDIF, dramatically improving the digital signal quality before it gets to the SuperTubeClock. This USB input is a true high-resolution digital input.

,Vacuum Tube Rectified

Vacuum tube rectified power supply incorporates eleven separate power supply regulation circuits. Tube rectification is synonymous with organic sound, especially when compared to DACs being known as sounding like “a computer”.

,Specifications

Digital Input Inputs Specifications USB AUDIO Audio Format PCM 16Bit-32Bit，44.1kHz-192kHz DSD DSD64-DSD128（DoP Mode） Operating System Windows Support（Driver needed：XMOS-Stereo-USB-Audio-Class2-Driver-30CE_v4.13.0.exe） MAC OSx Support（Driver unnecessary） Android No Support iOS No Support（Support with Camera Kit） Operation Mode Asynchronous USB Audio 2.0 Class AES/EBU
（XLR） Audio Format PCM 16Bit-24Bit，44.1kHz-192kHz DSD DSD64（DoP Mode） Input Impedance 110 Ω Input Terminal XLR Femail COAXIAL
(RCA) Audio Format PCM 16Bit-24Bit，44.1kHz-192kHz DSD DSD64（DoP Model） Input Impedance 75 Ω Input Terminal RCA OPTICAL
（TOSLINK） Audio Format PCM 16Bit-24Bit，44.1kHz-176.4kHz DSD DSD64（DoP Model） Input Terminal TOSLINK Analogue Output Outputs Specifications RCA Output Level 2.2V±2dB（47kΩ Load） Frequency Response 20-40kHz (±0.5dB，Fs=192kHz) THD+N ≤1.8% (Fs=192kHz) S/N Ratio ≥90dB （20-20kHz） Channel Seperation ≥80dB Output Impedance 2.7 kΩ Others Size Size of the DAC 14.9″ x 11″ x 7.5″ / 378 mm x 280 mm x 190 mm (L x W x H) Size of the Package 18.4″ x 15.2″ x 12.5″ / 468 mm x 385 mm x 316 mm (L x W x H) Weight Net Weight 28.7 lbs /13 kg Gross Weight 37.5 lbs /17 kg Max Power Consumption 55Watts
