Quad Platina CDT

Name: Quad Platina CDT
SKU: 104367
Price: 2799 NZD
Availability: InStock

$2,799.00

The PLATINA series marks a considered evolution in design, application and performance for QUAD.

The Platina CDT continues this approach — a digital source component that brings together heritage, precision engineering and a contemporary understanding of system integration. Designed to sit alongside the Platina Integrated and Platina Stream, it completes the system with clarity of purpose and consistency of execution.

color

Clear

Overview

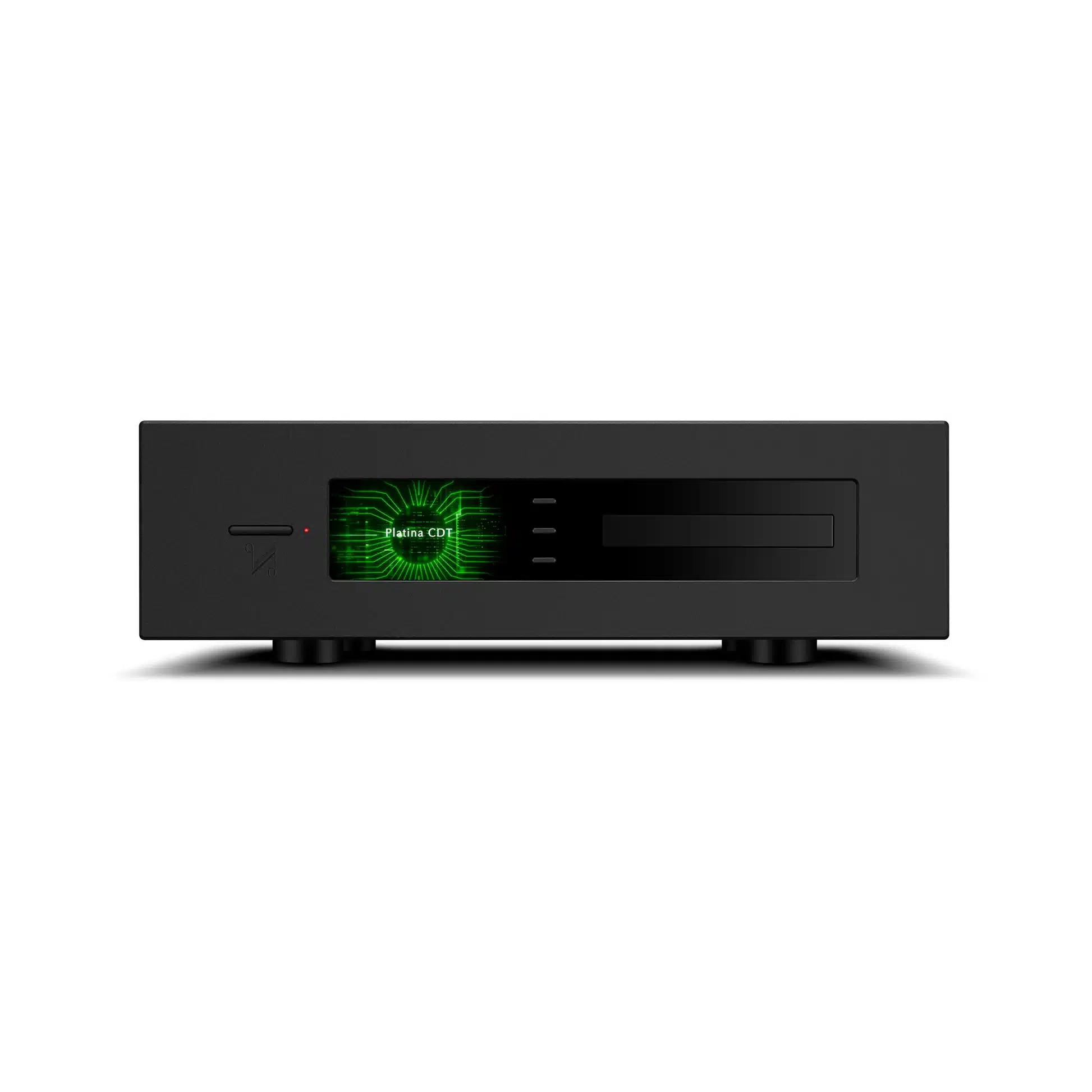

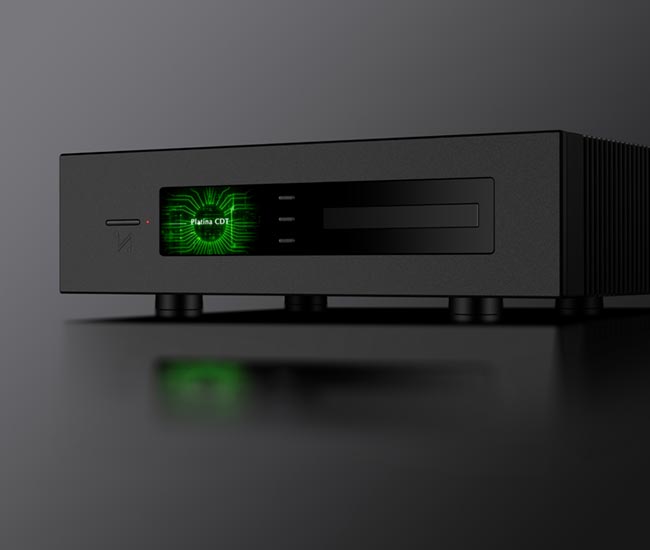

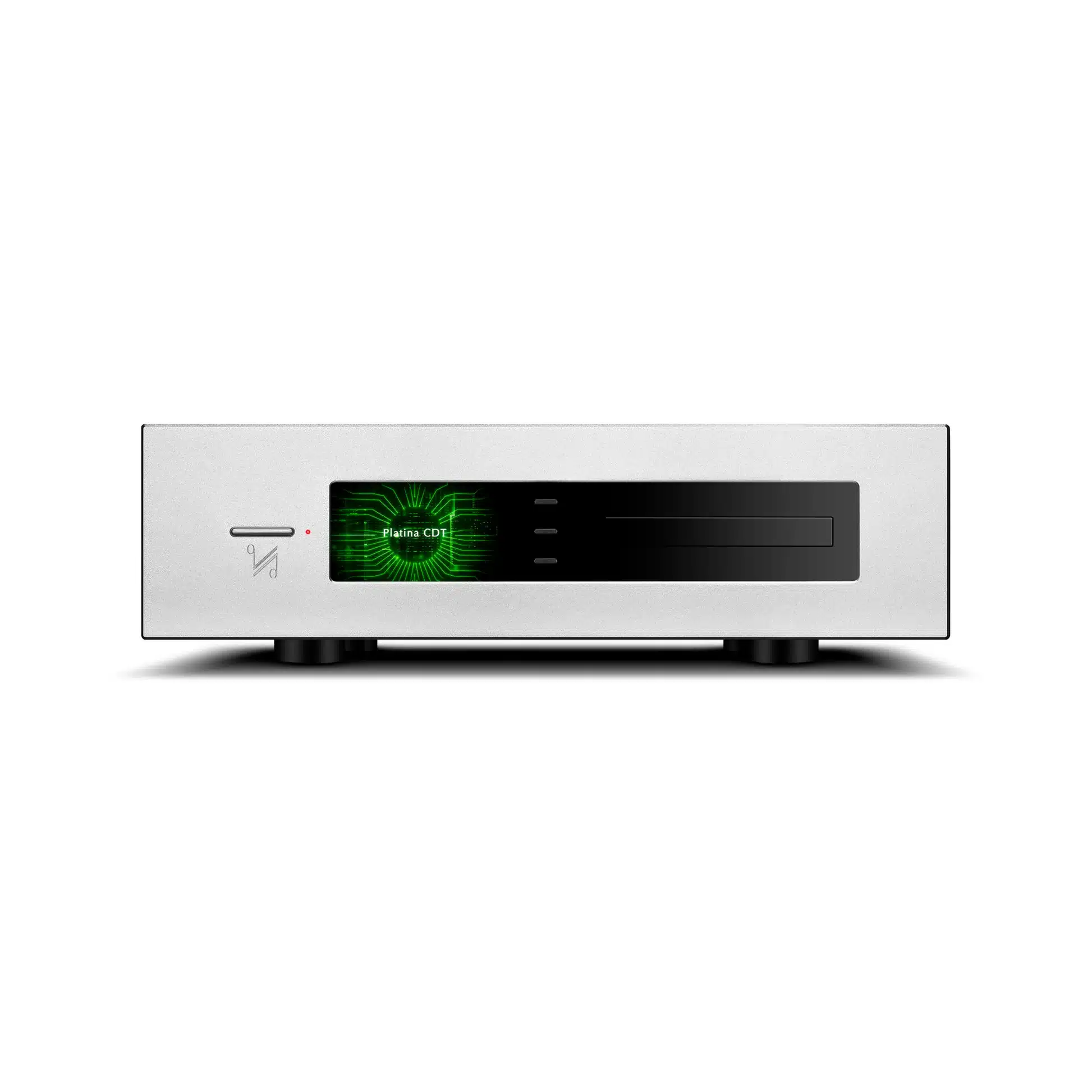

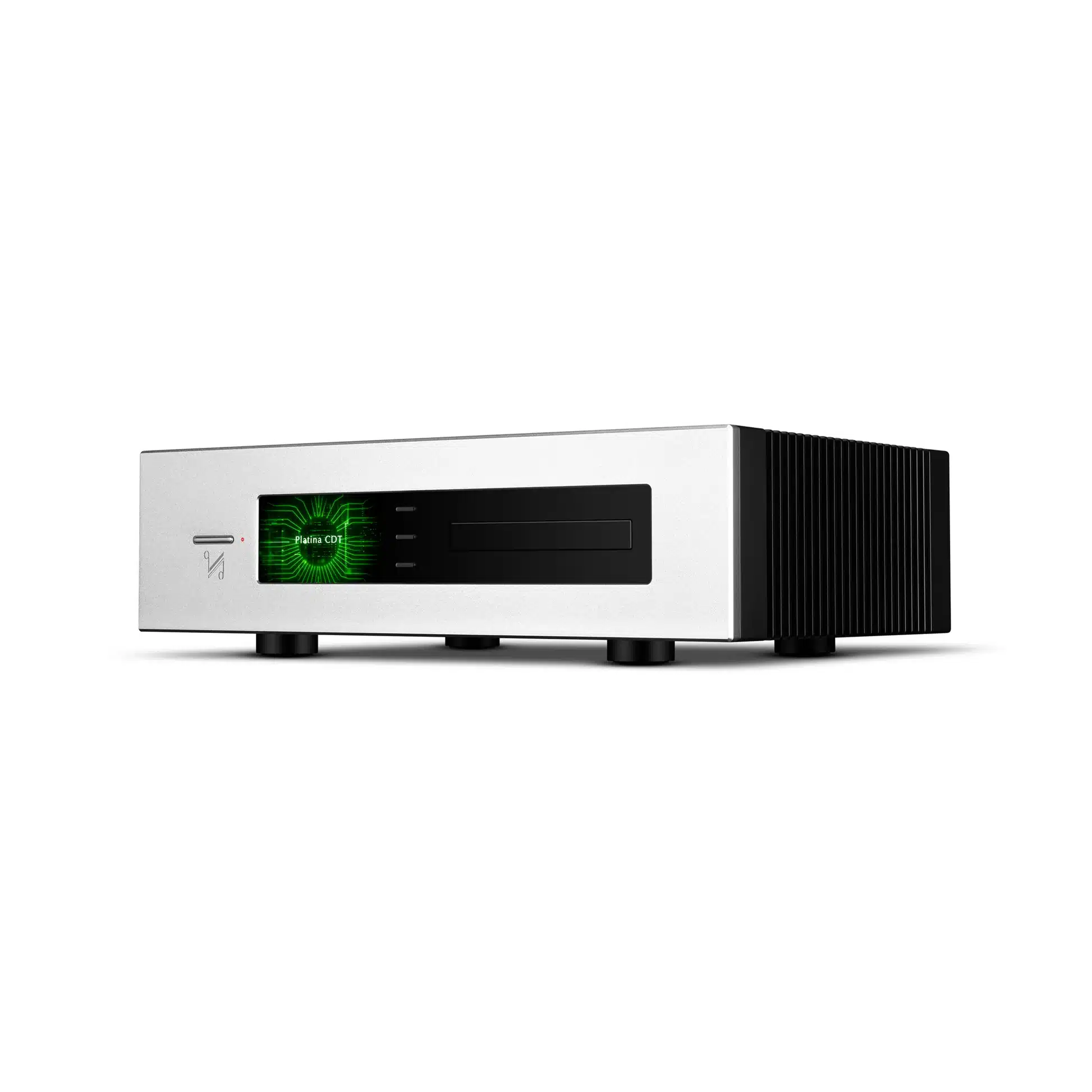

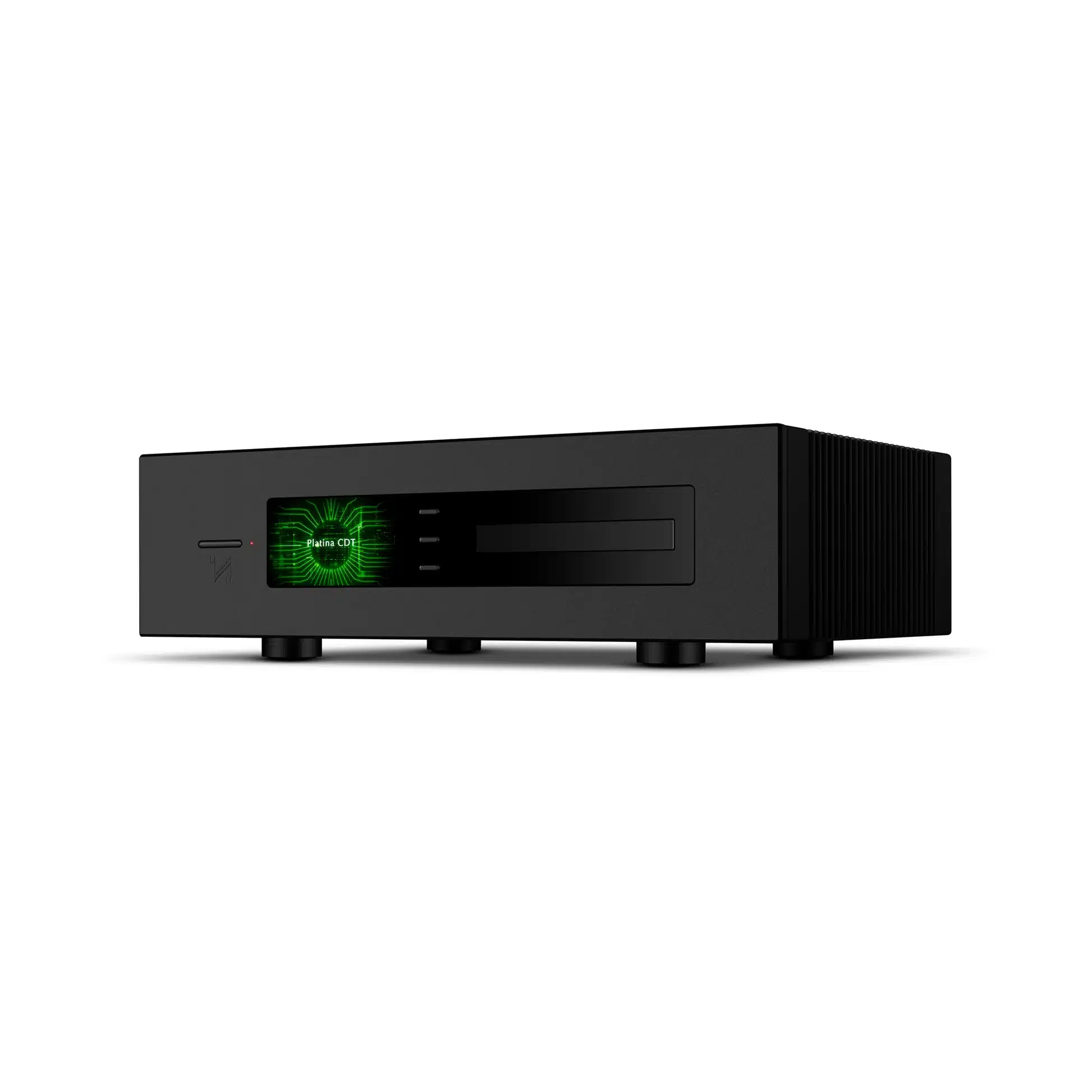

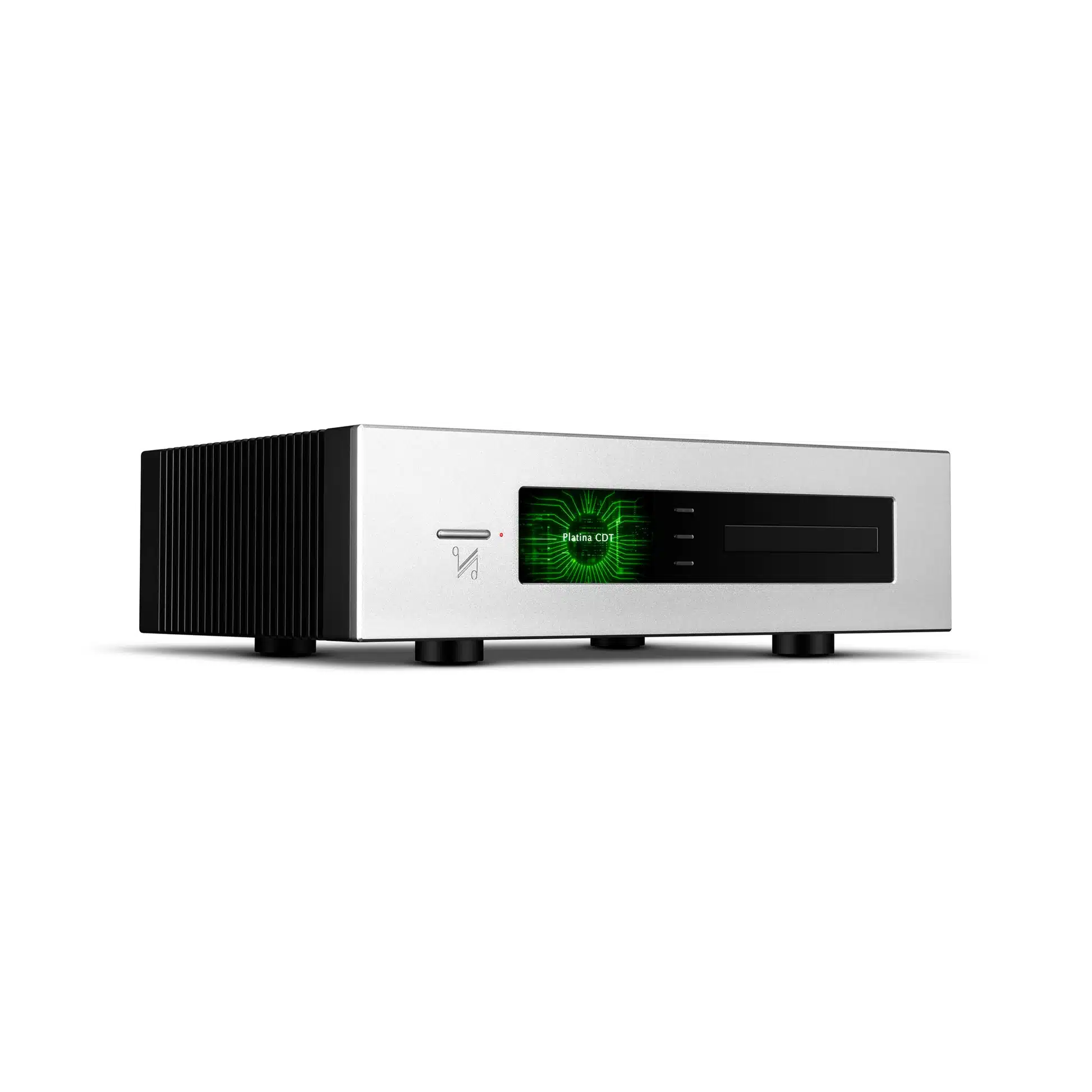

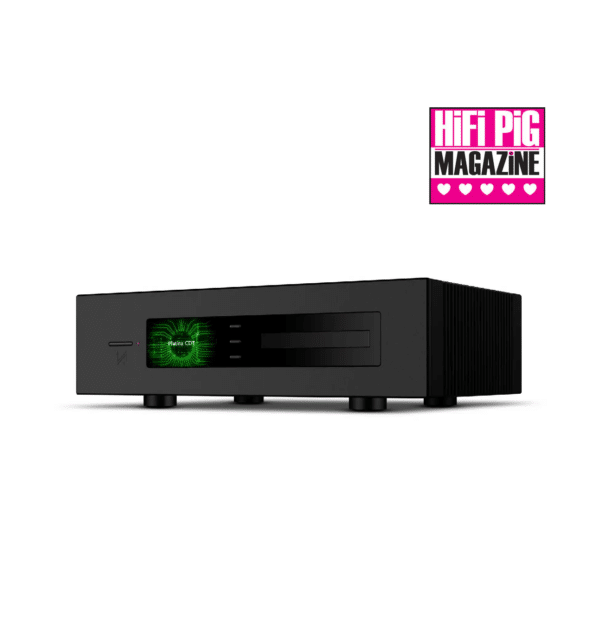

Bold in proportion yet restrained in expression, the QUAD Platina CDT reflects a design language characterised by balance, symmetry, and control. As with the entire Platina series, the CDT embodies purposeful restraint: clean geometry, refined materials, and an unmistakable QUAD presence. From its tactile machined aluminium controls to the minimalist fascia and disciplined rear panel, this is digital audio crafted with elegant precision.

It is a dedicated CD transport, developed without onboard DAC circuitry, allowing it to focus entirely on the accurate retrieval and transmission of digital audio data. When partnered with the Platina Integrated amplifier or an external high-performance DAC, the CDT delivers playback with precision, stability and composure.

With the addition of USB HDD playback, the Platina CDT extends beyond compact disc media, offering a flexible digital source for contemporary listening.

Engineering Precision

At the heart of the Platina CDT is a custom-developed transport mechanism, engineered for smooth operation, stable tracking and consistent error correction.

A temperature-compensated crystal oscillator (TCXO) governs the system clock. Unlike conventional oscillators, which can drift with temperature changes, the TCXO maintains timing accuracy through continuous compensation, ensuring a stable, consistent digital signal.

This is no technical footnote: traditional crystal oscillators drift as they warm up, causing subtle frequency shifts and timing errors. These changes degrade the precision of digital signal output and affect musical perception. The TCXO in the Platina CDT actively monitors and compensates for temperature changes in real time, preserving a rock-solid digital clock.

This precision in timing underpins the CDT’s performance — preserving low jitter and maintaining the integrity of the audio data as it is transferred to the partnering DAC.

The result is a presentation characterised by focus, control and clarity, with improved spatial definition and natural tonal balance.

Beyond CD

The Platina CDT also supports USB HDD playback, allowing it to operate as a broader digital transport within the system.

Audio files stored on USB devices can be accessed and replayed through the CDT’s digital output stage, with support for a wide range of formats including FLAC, WAV, MP3, AAC, WMA and APE.

Whether replaying optical media or digital files, all sources benefit from the same disciplined clocking and power architecture.

Form and Function

The Platina CDT follows the same design principles established across the PLATINA series.

A centrally positioned IPS display provides clear visual feedback, including CD text information, while machined aluminium controls offer precise and tactile interaction.

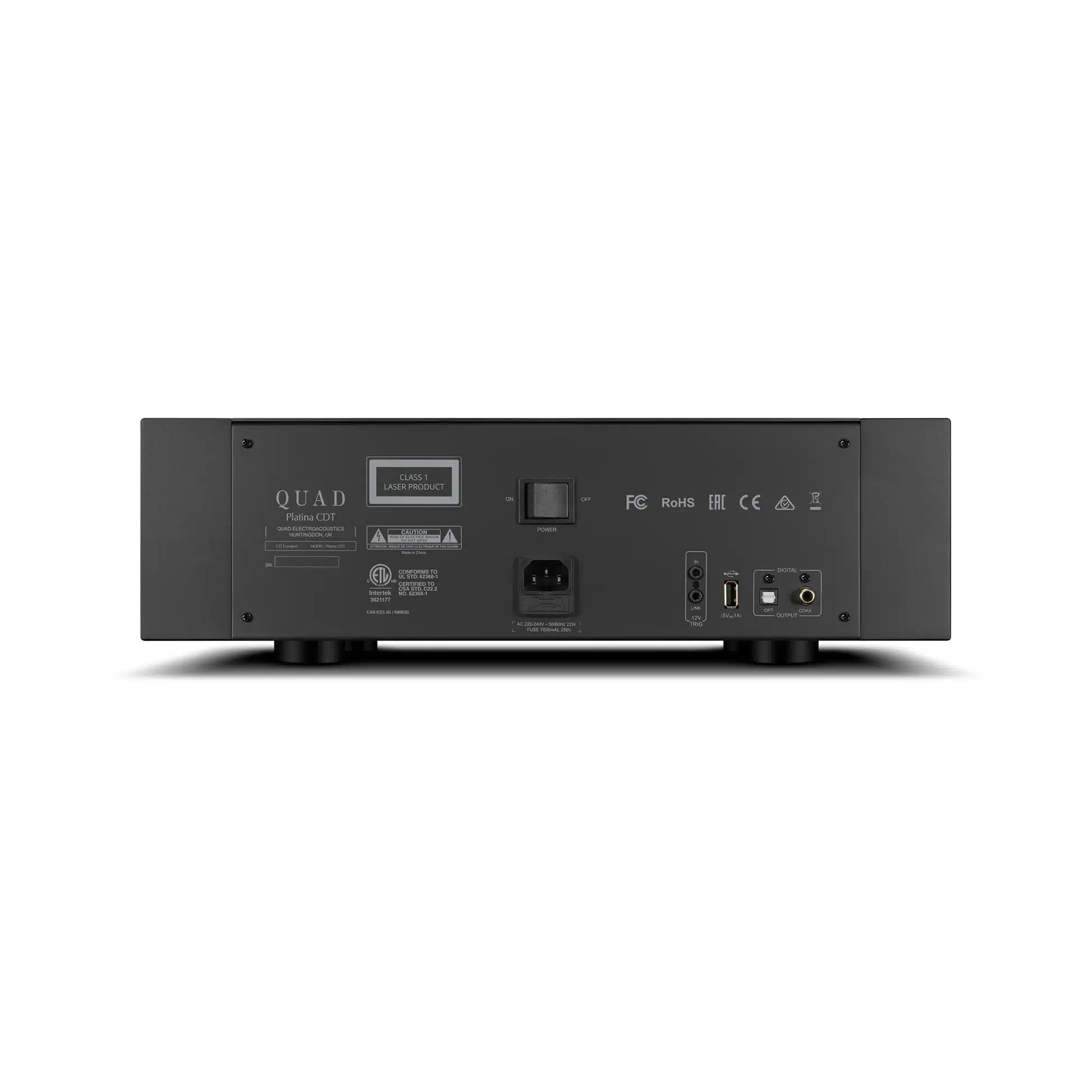

The fascia is defined by simplicity and proportion, with each element placed deliberately. The rear panel maintains the same clarity of layout, supporting straightforward integration within a system.

The included remote control ensures consistent operation across Platina components, reinforcing a unified user experience.

System Integration

The Platina CDT is designed as part of a complete system.

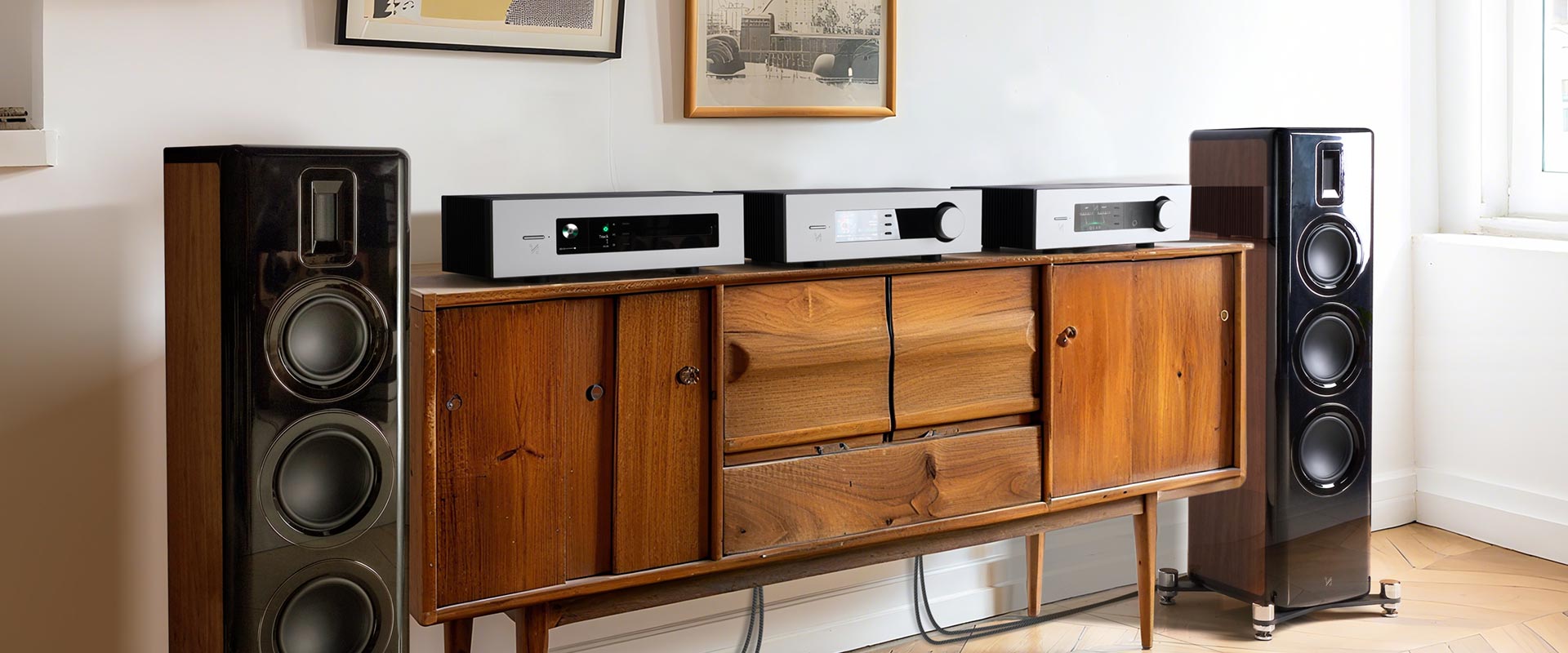

Together with the Platina Integrated and Platina Stream, it creates a unified platform for contemporary high-fidelity playback — integrating physical media, streaming, and amplification within a consistent architectural and sonic framework.

Each component is crafted with the same purpose: to deliver music with accuracy, balance, and a natural sense of ease.
In combination with the Platina Integrated and Platina Stream, it forms a cohesive platform for modern high-fidelity playback — uniting physical media, streaming and amplification within a consistent architectural and sonic framework.

Each component is developed with the same intent: to deliver music with accuracy, balance and a sense of natural ease.

Model	Platina CDT
General Description	CD transport
Design Philosophy and Core Technology	Compatible with CD/CD-R/CD-RW and data CD formats CD Text display Gapless Playback Playback from USB HDD devices 4.3″ 800 x 480 Large Size Full View IPS LCD Fully functional remote control
Supported File Formats	WAV, MP3, WMA, AAC, FLAC, APE format playback
USB Storage Device File System	Supports FAT16/FAT32/exFAT format
Digital Output Amplitude	500 +/-50mVpp
Output Impedance	75 Ω
Frequency Response	-0.01 dB (20Hz-20kHz, ref.1 kHz)
Sampling Rate	44.1 kHz (CD/CD-R/CD-RW) 44.1kHz – 96kHz (Data CD) 44.1kHz – 96kHz (USB HDD)
Digital Output Interface	1 x Coaxial, 1 x Optical
Standby Power Consumption	<0.5W
Power Requirements (according to region)	220 – 240V – 50/60Hz 100 – 120V – 50/60Hz
Product Size W x H x D(mm)	445 x 135 x 310mm
Carton Size W x H x D(mm)	500 x 225 x 445mm
Net Weight	10.9kg
Gross Weight	12.8kg
Finish	Black/Silver
