● Chipset: Amlogic S928X-K/J + S905X4‑K
● Main CPU: Quad-core 2.0 GHz ARM Cortex-A55 + a powerful 1.9 GHz ARM A76 core. Offers up to double the power of the RTD1619DR in the prior model.

● ATV CPU: Quad-core 2.0 GHz ARM Cortex-A55.
● GPU: ARM Mali-G57. Achieves an Antutu score over 300,000.

● NPU: Dedicated hardware for AI acceleration.
● OS: Linux + Android 11 / Android TV.
● DSP: Supports 10-bit YUV and hardware acceleration for R_video UI.
● Cache: 1MB L2+L3.
● RAM: 8 GB, twice the amount in the previous model.
● ROM: 64 GB NAN eMMC, offering double the storage of the prior generation.

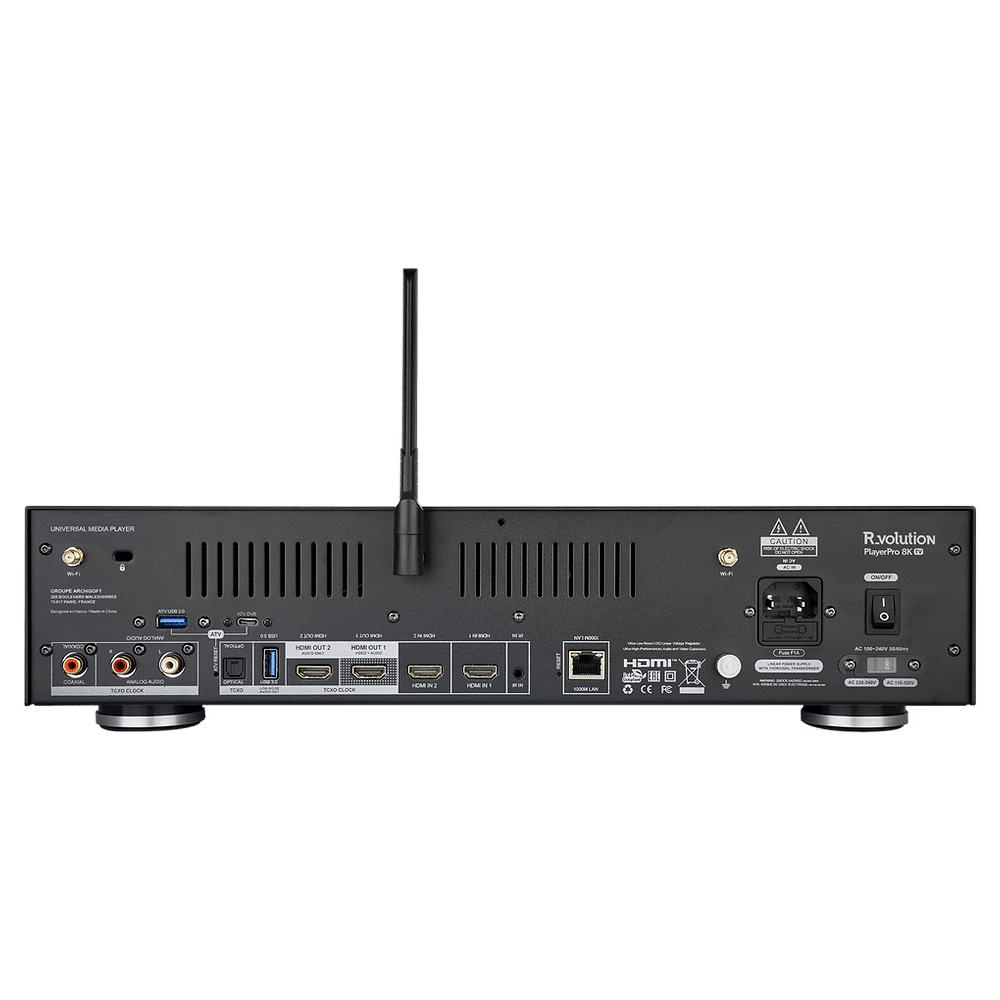

● Connectors: Premium gold-plated HDMI 2.1a output for audio/video (supporting HDCP 2.2/2.3, CEC, Deep Color, 12-bit, xvYCC), HDMI 1.4 (audio output only), dual HDMI 2.1 inputs (supporting HDCP 2.2/2.3), one USB 2.0 on the front panel, three USB 3.0 ports (one with low-noise audio output), gold-plated RCA analog audio output, gold-plated coaxial S/PDIF digital audio output, optical S/PDIF audio output (TOSlink), Gigabit Ethernet (10/100/1000 Gb/s), Wi-Fi with dual gold-plated antennas, dedicated RF antenna, IR input for extenders, on/off button, power LED, and a multi-segment LED display.
● Dual HDD Rack Enclosure: Insert up to two 3.5-inch internal SATA hard drives, up to 32TB each, for a total capacity of 64TB.

● Media Sources: Access content from internal/external HDDs (USB), USB devices (flash drives, card readers), PCs and NAS within a local network (SMB 2), and other internet/local network sources. Supports external multi-bay USB storage enclosures.
● Fast File Transfers: Achieve speeds up to 90 MB/s via SATA, USB 3.0, and Ethernet.
● SMB Client/Server: Gain direct access from another R_volution Player or computer over your local network. Supports Samba Client up to SMB 2 with R_share technology.
● Video Codecs: Supports HEVC, H.265, x265 (up to Main10 Level 6.1 High 60p in 4K UHD), AV1 (up to 8K UHD 60p), AVC, MPEG-2, MPEG-4, VC-1, H.264/x.264 (up to 60p in Full HD and 24p/20 Mbps in 4K UHD), FLV, XVID, DIVX (3/4/5/6), RealVideo8/9/10, VP9 Profile 2 (up to 4K 60p and HDR); supports ultra-high bitrates up to 300 Mbps.
● Video File Formats: Compatible with UHD ISO, BD ISO, BDMV, MKV, MPEG-TS, MPEG-PS, MPEG, MPE, MPG, TS, TP, M2TS, VOB, ASF, AVI, VC-1, MOV, MP4, QT, WebM, DVD-ISO, VIDEO_TS, RMVB, RM, DAT, VOB, FLV, DAT, WMV, AVCHD, 3D SbS/T&B.
● Dolby Vision: Full support for Dolby Vision Profiles P5, P7 MEL, P7 FEL, and P8 across UHD ISO, BDMV, MKV, MPEG-TS, TS, M2TS, MP4 formats.

● AV1 codec: Offers up to a 50% improvement in video quality over the HEVC codec, requiring up to 50% less bitrate for equivalent video quality.

● Widevine L1 DRM: Enjoy premium online video services in full 1080p and 4K/8K UHD. The highest DRM level, Security Level 1 (L1), ensures complete processing within a Trusted Execution Environment (TEE), allowing the streaming of premium content at UHD resolutions.
● Video Output Flexibility: Supports resolutions and formats from SD to 1080p, 4K UHD (3840×2160), and 8K UHD (7680×4320), up to 8K 60p. True 24p (23.976 Hz output) display capability. Experimental 120 Hz output support.
● Audio Codecs: Comprehensive support for AC-3, E-AC3, AC-4, DTS, DTS-WAV, MPEG, MP3, ALAC, APE, CAF, M4A, AIFF, WAV, WavPack, VSELP, FLAC, AAC, HE-AAC, AMR-NB, OGG, RA_COOK, LPCM, PCM, ADPCM, FLA; including lossless and audiophile formats (up to 24-bit/192 kHz), DSD.
● SACD (DSD): Play high-quality Super Audio CD (DSD) music files in all popular formats (ISO, DFF, DSF), including stereo and multichannel files, as well as files using DST compression. Stereo and multichannel DSD files can be output to HDMI in high-quality multichannel PCM (up to 176.4 kHz). Stereo DSD files can be output to both HDMI and S/PDIF as stereo PCM (up to 176.4 kHz).
● Multichannel Audio: Bitstream, decode, and downmix LPCM 2.0/5.1/7.1 (up to 48kHz) across various codecs like AAC, MP3, WMA, FLAC, WAV, OGG, AIFF, DTS, Dolby Digital, AC-4 and more, including advanced formats like DTS:X, Dolby Atmos, and Auro 3D.

● Playlist file formats: M3U, PLS, CUE.
● Subtitle Formats: SRT (Subrip / external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, SUB/IDX external), SMI (Sami), IDX, PGS (UHD ISO, BD ISO, BDMV, M2TS, MKV), DVBSUB (DVB-T, DVB-S, DVB-C).
● Subtitle Options: ​Downloadable subtitles, forced subtitle support for MKV, ISO, BDMV. Customizable sync, size, color, encoding, and vertical position, including Blu-ray (PGS) subtitles. Supports multiple external subtitles and default subtitle settings.
● Photo File Formats: JPEG (hardware decoding), PNG, BMP, GIF. Features include slideshow, transition effects, rotation, zoom, playlist browsing, repeat, shuffle.
● HDD Partitions Formats: FAT16/FAT32, EXT2/EXT3/EXT4, NTFS, exFAT, HFS/HFS+ (read-only), BTRFS—all with read-write capability, except for HFS/HFS+.
● Ethernet: 10/100/1000 Mb/s.
● Wi-Fi: Dual Band 2.4+5 GHz IEEE 802.11ax (Wi-Fi 6), with two removable antennas.
● Android TV: Access additional apps via GooglePlay. Note: Some apps may require a computer mouse or AirMouse (not included) for optimal use.
● Network Playback: Optimized network performance for seamless local network playback across all media types, including HEVC UHD files, via Gigabit Ethernet or 10/100 Ethernet.
● Universal RC: Easily integrates into smart home setups with IR and IP code compatibility.

● Widescreen: The R_video interface and artwork system are compatible with 2.35:1 / 2.39:1 / 2.40:1 widescreen displays, ensuring a perfectly optimized cinematic experience.

● Favorite Scenes: Create your own favorite scenes or enjoy those shared by the community.
