Rotel A12 MKII

$1,899.00

or from $399.00 today & 5 weekly interest-free payments of $300.00 with Laybuy

The A12MKII stands well above its sleek design delivering 60 Watts of dynamic Class AB output into 8 ohms. This integrated amplifier supports your favorite sources including MM Phono Stage, analog, digital, PC-USB and wireless Bluetooth. Optimized circuits and a 32-bit DAC deliver spacious and open reproduction of the music.

LIMITED SPECIAL

The A12MKII Integrated Amplifier stands well above its slim, sleek design profile designed and engineered for music lovers.

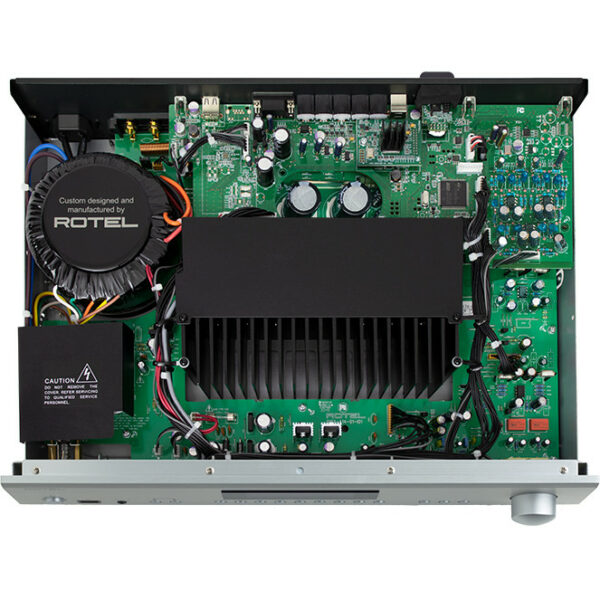

Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms.

A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptXTM Bluetooth input ensures connection to your favorite sources.

The premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimized circuits preserving the integrity of the audio stream.

Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.

Power2 x 60 Watts of robust
Class AB power

TurntableMoving Magnet Phono Input for Turntable connection

BluetoothWireless aptX™ Bluetooth

ICTexas Instruments premium 32-bit/384kHz Digital to Analog Converter

Roon TestedCertified Roon Tested

Engineered with care.

Components

Dimensions (W × H × D)
430 × 93 × 345mm
17″ × 3.6″ × 13.5″
Front Panel Height
80mm (3.15″)
Power Requirements
120V, 60Hz
Power Consumption
230W
Standby Power Consumption
<0.5W
Net Weight
8.76kg (19.31lbs.)
BTU Rating (4Ω, 1/8th power)
632 BTU/h
Maximum Power Output
120W/Ch (4Ω)
Continuous Power Output
60W/Ch (8Ω)
Total Harmonic Distortion (THD)
<0.018%
Frequency Response
Line Level Inputs: 10Hz – 100kHz, 0±0.5dB
Digital Inputs: 10Hz – 90kHz, 0±2dB
Phono Input: 20Hz – 20kHz, 0±0.5dB
S/N Ratio (IHF “A” Weighted)
Line Level Inputs: 100dB
Digital Inputs: 103dB
Phono Input: 90dB
Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.03%
Damping Factor
220
Input Sensitivity
Line Level Inputs: 230mV
Digital Inputs: 0dBfs
Phono Input (MM): 3.4mV
Input Impedance
Line Level Inputs: 24kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
Input Overload
Line Level Inputs: 4V
Phono Input: 50mV
Preout Level
1.2V
Output Impedance
470Ω
Tone Controls
±10dB at 100Hz / 10kHz
Digital Input
SPDIF LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)*
*Driver installation required
Roon Tested
