A new standard in high-resolution audio, delivering high performance audio from a desktop component

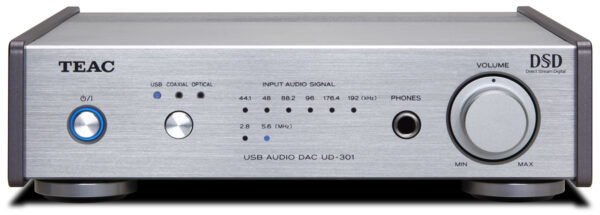

“UD-301” is a D/A converter Dual Monaural configuration supporting USB input of DSD 5.6MHz and PCM 32bit/192kHz. available with a USB input from PC supporting DSD 5.6MHz and PCM 32bit/192kHz. Using the High-resolution sound source playback software TEAC HR Audio Player installed on one’s computer, anyone can enjoy the world of easy high-resolution audio.
Digital audio inputs
USB Connector USB Type B (USB2.0) Transmission mode Asynchronous mode DSD data
sampling frequency 2.8M/5.6M Hz PCM data
sampling frequency 32k/44.1k/48k/88.2k/96k/176.4k/192k Hz Bit rates 16/24/32 bit
COAXIAL Connector RCA jack PCM data
sampling frequency 32k/44.1k/48k/88.2k/96k/176.4k/192k Hz Bit rates 16/24 bit Input level 0.5Vp-p Input impedance 75 ohms
OPTICAL Connector Optical digital connector PCM data
sampling frequency 32k/44.1k/48k/88.2k/96k Hz Bit rates 16/24 bit Input level -24 to -14.5dBm peak
,Analog audio outputs
XLR Connector XLR-3-32 Maximum output level +14dBu(1kHz, full-scale, 10k ohms with load, 0dB when set) Output impedance 200 ohms
RCA Connector RCA jack Maximum output level 2.0Vrms(1kHz, full-scale, 10k ohms when loaded) Output impedance 100 ohms
Headphone output
Connector 6.3mm(1/4″) stereo phone jack Maximum output 100mW + +100mW (32 ohms with load, distortion rate 0.1%) Compatibility impedance 8 ohms to 600 ohms
Power supply
USA/Canada AC 120V, 60Hz
Europe AC 230V, 50Hz
