Vogels Projector Ceiling Mount PPC1540


or 6 weekly interest-free payments from $57.50 with Laybuy what's this?

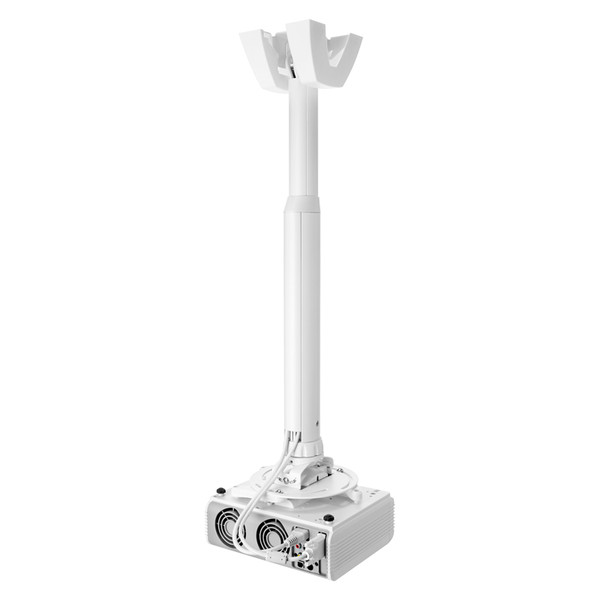

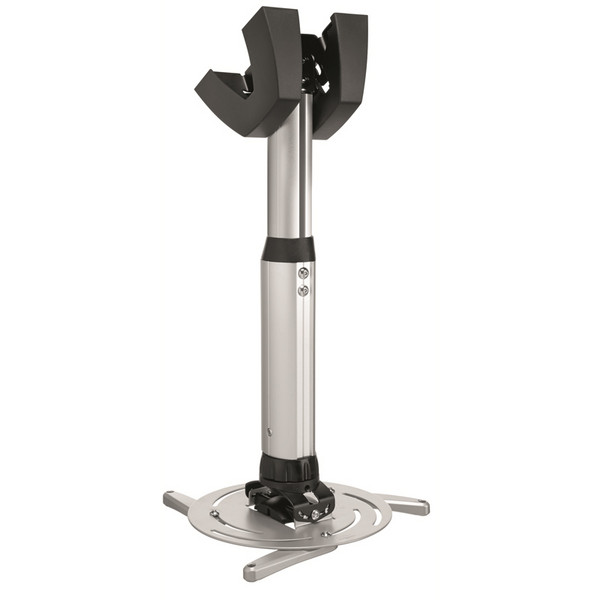

Vogels Projector Ceiling Mount, 40-55cm extendable length

The PPC 1540 is a height adjustable projector mount specially designed for the latest generation of projectors weighing up to 20 kg.

This projector interface is equipped with fine tune adjustability for precise alignment to the projection surface. Once aligned, the projector stays in position. Turning the unique friction ring will eliminate all play from the interface connections, making the mount a solid and very stable solution.

The height adjustable projector ceiling mount kits can be used when the height of the ceiling is not known or when flexibility is wanted.

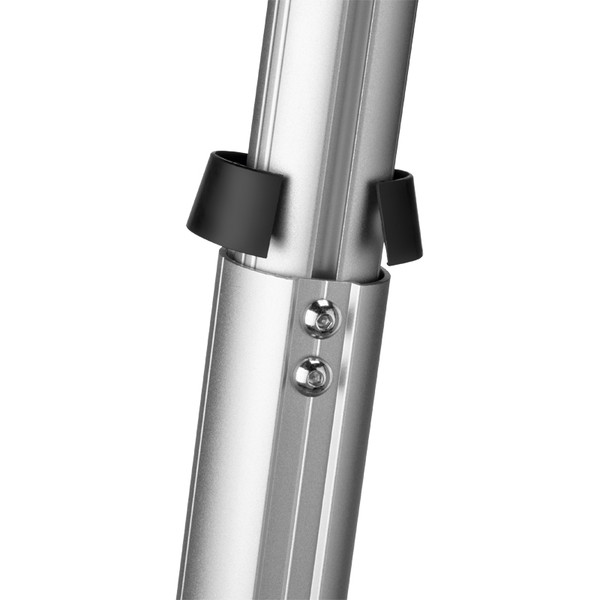

These mounts come in 3 lengths offering variable height adjustment from 400 to 1350 mm. The Cable Inlay System runs the full length of the pole and even allows for cable routing after installation. The offers sufficient space for all cables required and enables you to hide all the cables in a matter of seconds.

• Cables fully concealed
• Fine tuning during installation
• Fine tuning possible after installation
• Theft prevention

EAN single box 8.71E+12
Series General
Product group Projector ceiling mount
Guarantee 5 years
Colour Silver
TÜV certified Yes

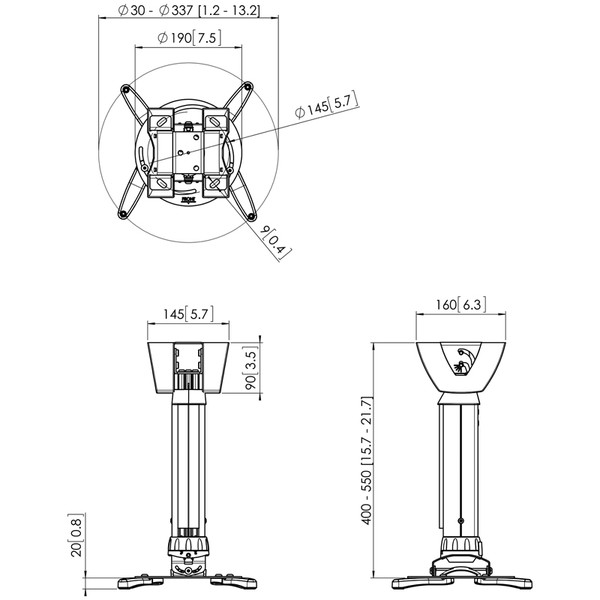

Min. distance to ceiling (mm) 400
Max. distance to ceiling (mm) 550
Turn Up to 360°
Tilt Tilt up to 15°
Roll 15
Max. weight load (kg) 20
Fischer inside Yes
Max. projector weight (kg) Up to 15
Range (diameter) 30 – 337 mm
Height range (mm) 400 – 550 mm
