Bowers & Wilkins CCM683 In-ceiling Speaker


or 6 weekly interest-free payments from $216.50 with Laybuy what's this?

The Bowers & Wilkins CCM683 In-ceiling Speaker delivers exceptional performance while blending in seamlessly with the rest of your room.

Each speaker combines an 8″ aramid fiber woofer with a 1″ soft dome tweeter — a potent combination that delivers clear, full sound with your favorite music playlists or movie soundtracks.

Product is Available to Order. Pricing is for each.

Available On backorder

Bowers & Wilkins CCM683 In-ceiling Speaker

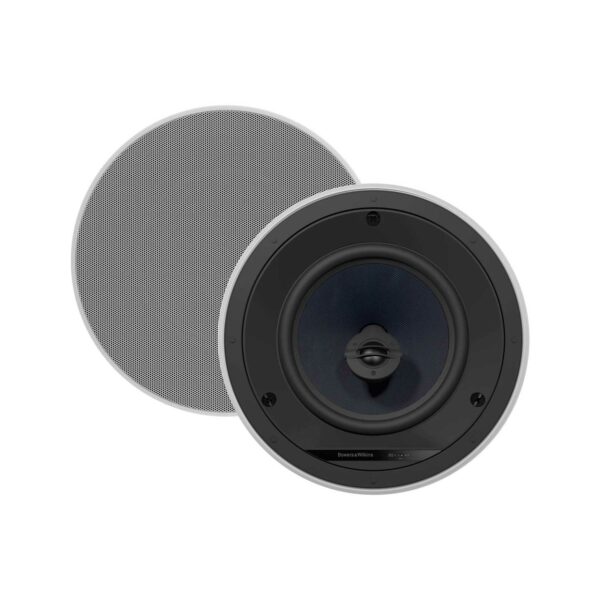

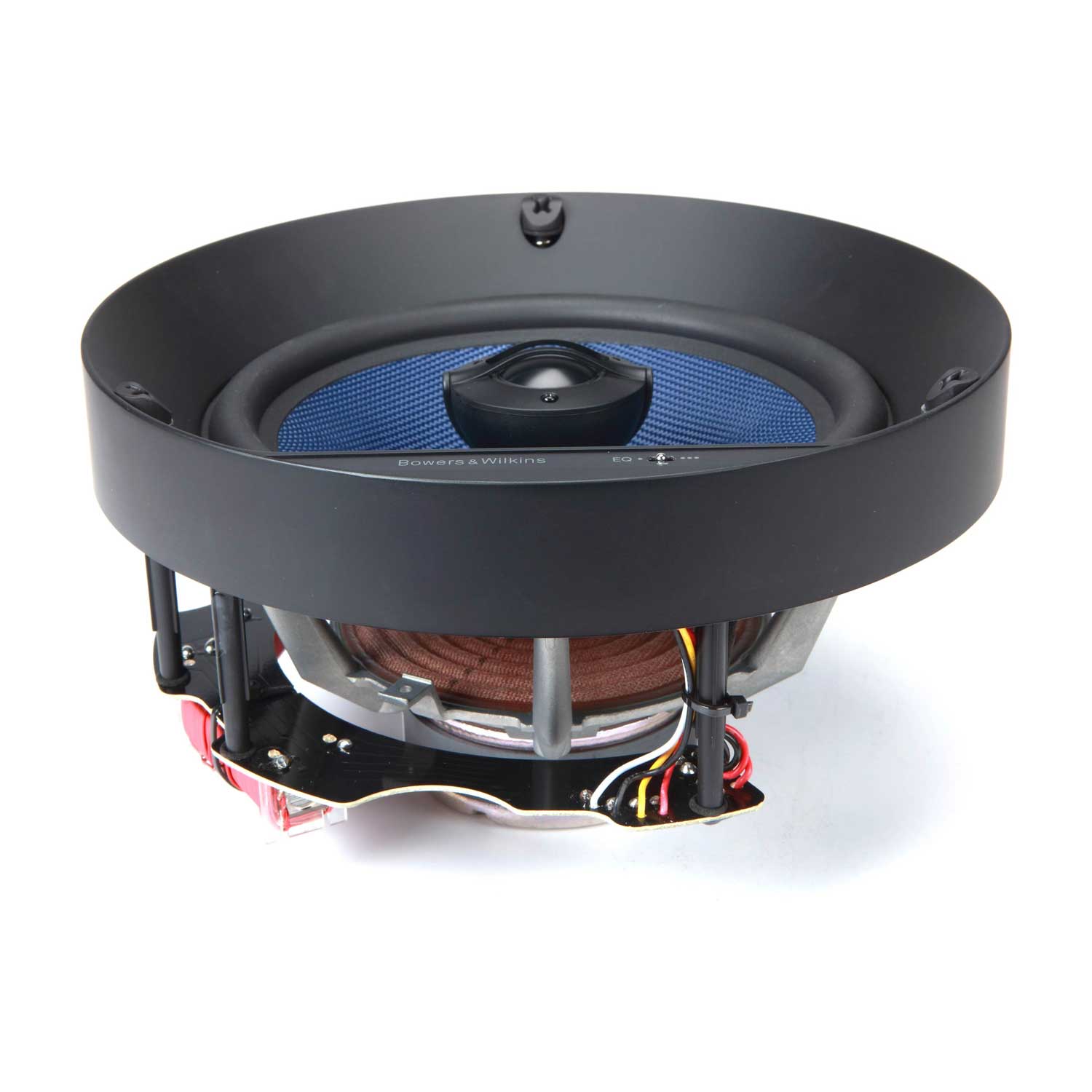

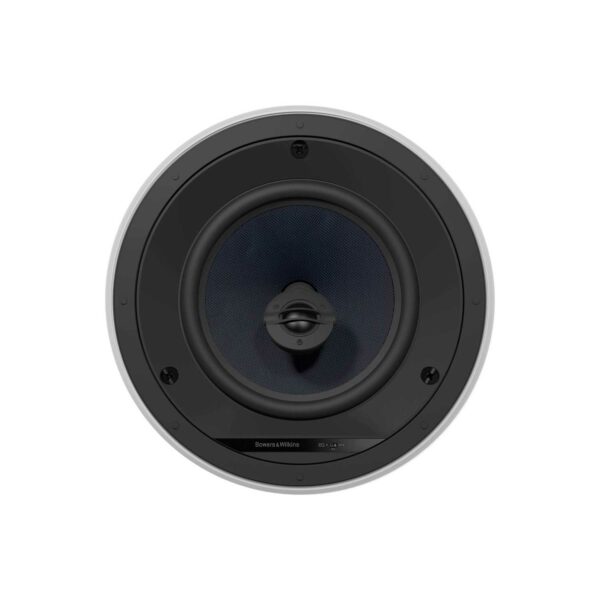

The Bowers & Wilkins CCM683 In-ceiling Speaker is a true high performance ceiling-mount speaker. The speaker features a 200mm (8in) woven blue Aramid fiber cone bass/midrange driver and an aluminium tweeter in a neat circular die-cast chassis. The tweeter’s housing pivots for adjustable off-axis treble response and the die-cast chassis provides extra rigidity that results in a cleaner, faster bass. The speaker also has a three-position EQ switch for a better off-axis response. The blue Aramid fiber cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound

  • Ideal for an in-ceiling music system, or as overhead sound effects channels in a Bowers & Wilkins home theatre system
  • 8″ aramid fiber woofer
  • 1″ soft dome tweeter
    • tweeter is aimable to direct high-frequency details towards you
    • three-position EQ switch optimizes off-axis response for different tweeter angles
Your favorite music: heard, but not seen

Your home is as individual as the music you love, and so are your particular requirements. Bowers & Wilkins’ range of Integrated Solutions speakers delivers their world-famous sound quality with a range of options to suit every type of home.

Bespoke installations to suit your home

Bowers & Wilkins understands you want superb sound but don’t want to rearrange your home to enjoy it. So, it has developed an extensive range of in-wall and in-ceiling speakers, delivering high-performance options to suit every space and every home.

Hear music exactly as the artist intended

Their Integrated Solutions speakers are built by the same people, to the same standards, and with the same objectives, as their regular loudspeaker ranges. There’s only one difference: these speakers are nowhere to be seen.

General Information

    • Guarantee Period (Months): 60
    • Output: Stereo Pair
    • Power Type: Passive


    • Home Cinema
    • Stereo Music


    • Visible Colour: White
    • Visible Shape: Circular


    • Cutout Diameter (mm): 250
    • Mounting Depth (mm): 133
    • Overall Depth (mm): 137
    • Overall Diameter (mm): 290

Detailed Specifications

    • Compatible Amplifier (Watts RMS): 25 – 130
    • Frequency range (Hz): 35 – 50000
    • Nominal Impedance (Ω): 8
    • Max Power High (Watts): 130
    • Sensitivity (dB): 88

Driver Information

    • Bass: 1
    • Biggest Driver Size (mm): 200
    • Tweeter: 1
