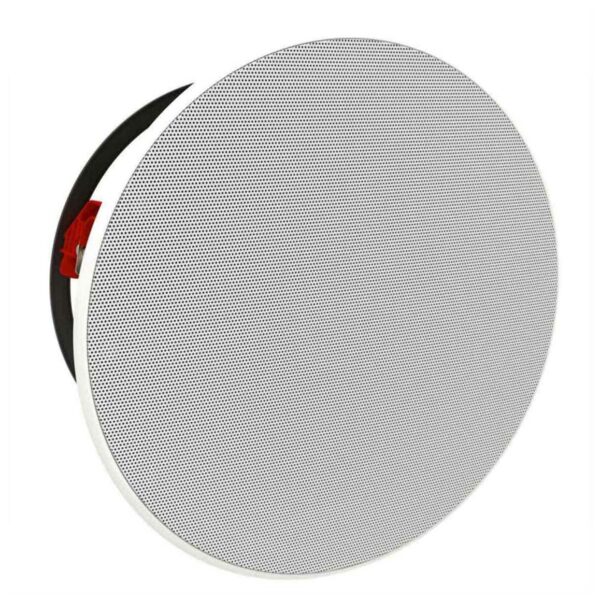

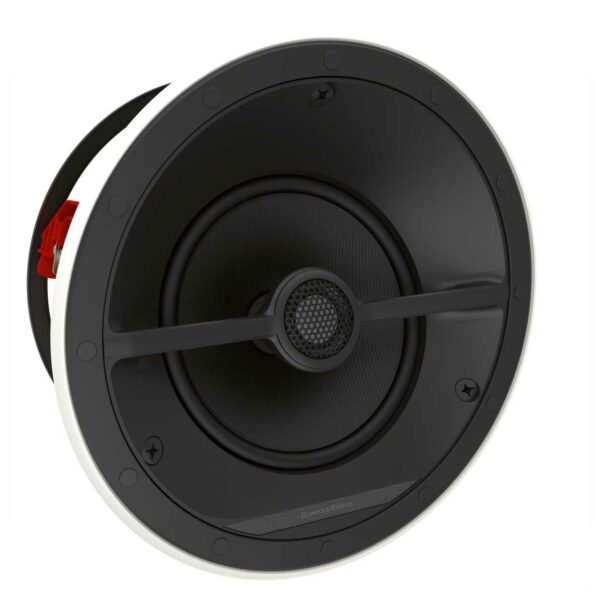

The Bowers & Wilkins CCM7.5 S2 In-ceiling Speaker’s configuration includes a 25mm (1in) Carbon Dome tweeter and a 180mm (7in) Continuum cone mid/ bass cone angled to the mounting surface, allowing for easy direction of the whole array towards the listener to ensure they hear the correct balance of sound. That way, dialogue is crystal clear and special effects come across accurately. Thanks to Bowers & Wilkins unique QuickDogs fixing method, installation is simple and if preferred, the supplied round grille can be replaced with an optional, square grille.
Bowers & Wilkins CCM682 In-ceiling Speaker
$1,699.00
Bowers & Wilkins CCM7.3 S2 In-ceiling Speaker
$3,699.00
Bowers & Wilkins CCM7.5 S2 In-ceiling Speaker
$1,699.00
or from $199.00 today & 5 weekly interest-free payments of $300.00 with
See nothing, hear everything with the Bowers & Wilkins CCM7.5 S2 In-ceiling Speaker installed in your home.
Designed for down-firing, in-ceiling use, CCM7.5 S2 can be used as the left, centre, right and rear-channel rear speakers in a discreet home cinema system.
Product is Available to Order. Pricing is for each.
Available on back-order
- Ideal for an elite in-ceiling music system, or as part of a Bowers & Wilkins home theatre system
- Drivers are mounted at an angle to direct sound toward your seating position
- 1″ carbon dome tweeter
- 7″ Continuum cone midrange/bass driver
Your favorite music: heard, but not seen
Your home is as individual as the music you love, and so are your particular requirements. Bowers & Wilkins’ range of Integrated Solutions speakers delivers their world-famous sound quality with a range of options to suit every type of home.
Bespoke installations to suit your home
Bowers & Wilkins understands you want superb sound but don’t want to rearrange your home to enjoy it. So, it has developed an extensive range of in-wall and in-ceiling speakers, delivering high-performance options to suit every space and every home.
Hear music exactly as the artist intended
Their Integrated Solutions speakers are built by the same people, to the same standards, and with the same objectives, as their regular loudspeaker ranges. There’s only one difference: these speakers are nowhere to be seen.
| Description: | 2-way in-ceiling system |
| Technical Features: | Carbon Dome tweeter Continuum mid/bass |
| Drive Units: | 1x ø25mm (1in) Carbon Dome high-frequency 1x ø180mm (7in) Continuum cone mid/bass |
| Frequency Range (-6dB): | -6dB at 25Hz – 33kHz |
| Frequency Response (-3dB): | 32Hz – 28kHz ±3dB |
| Sensitivity: | 90dB |
| Harmonic Distortion: | 2nd and 3rd harmonics (90dB, 1m) less than 1% 70Hz – 33kHz less than 0.5% 100Hz – 28kHz |
| Nominal Impedance: | 8Ω (minimum 4.8Ω) |
| Recommended Amplifier Power: | 25W – 150W into 8Ω on unclipped programme |
| Frame Diameter: | 290mm |
| Depth: | 128mm |
| Cut-out Diameter: | 254mm |
| Protrusion: | 8.5mm |
| Pre-Mounting Kit: | PMKC8 |
| Back Box: | BB 6C |
| Square Grille Option: | GrillesSQ68(P) |
| Net Weight: | 3.1kg |
